Summary of Contents for Sharkoon Crystal Shark

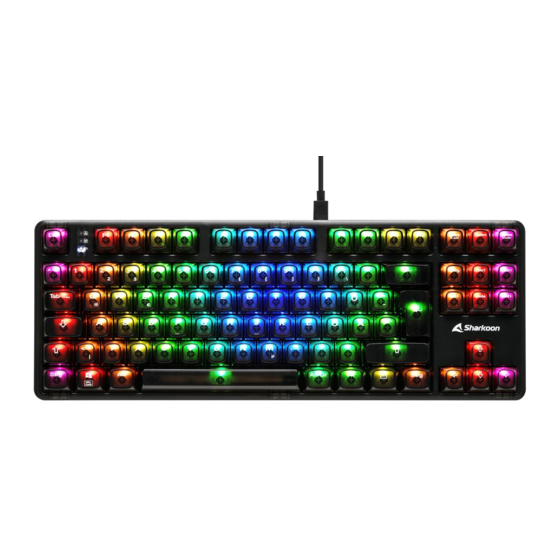

- Page 1 Crystal Shark Mechanical Gaming Keyboard Manual...
- Page 2 Damage to the product or personal injury may occur! - Contact Sharkoon customer support at support@sharkoon.com if the product and/or included accessories have been damaged and/or are not working properly.
-
Page 3: Select Mode
Select Mode Wireless Mode Wired Mode Keyboard Off / Charging Check LED Indicators Caps Lock Windows Key Locked Battery Status The battery status LED indicates the available battery charge while the keyboard is in wireless mode. The LED illuminates in red if the charge is below 20 %, yellow if below 50 %, green if below 90 %, and white if over 90 %. - Page 4 Connect via Cable and Charge Keyboard Druck Rollen Pause S-Abf Untbr " ´ ` ° § & ß ? Einfg Pos1 Bild T ab Ü Entf Ende Bild € Ö Ä < > µ Strg Alt Gr Strg Lock Connect via USB Nano Receiver 2.4 GHz Druck...
-
Page 5: Specifications
Wired (USB) Cable and Connectors „ Connector USB Type-C „ Textile-Braided Cable ü „ Cable Length 180 cm „ Gold-Plated USB Plug ü Package Contents „ Crystal Shark, Keycap Puller Tool, Switch Puller Tool, USB Nano Receiver, USB Cable (180 cm) -
Page 6: Lighting Effects
Lighting Effects Druck Rollen Pause S-Abf Untbr ´ ` " ° § & ß ? Einfg Pos1 Bild T ab Ü Entf Ende Bild € Ö Ä < > µ Strg Alt Gr Strg Lock ° Custom Illumination Change Direction ß... -
Page 7: Additional Functions
Additional Functions Additional Functions Druck Rollen Pause S-Abf Untbr ´ ` " ° § & ß ? Einfg Pos1 Bild T ab Ü Entf Ende Bild € Ö Ä < > µ Strg Alt Gr Strg Lock Reset to Factory Default Windows Volume –... - Page 8 Remove Keycaps Before removing a switch, first remove the keycap. To do this, place the arms of the keycap puller tool either to the left and right or to the top and bottom of the keycap, and then pull the keycap upwards with careful but constant pressure. Whenever possible, avoid pulling the keycaps from the switch directly with your fingers, as this may damage the switch.
- Page 9 Remove Switches Once you have removed the keycap from the switch, position the switch puller tool correctly on the tabs of the switch. These are positioned to the front and the back of the switch. Before pulling out the switch, make sure that both tabs are securely pressed with the switch puller tool and that the switch can be removed from the socket without resistance.
- Page 10 Install Switches To install the switches, position the switch so that one tab is at the front and the other tab is at the back. Each pin on the underside of the switch should be pointing exactly to its relevant contact in the keyboard socket. Make sure that the switch is led vertically into the socket opening (at a 90-degree angle to the socket).
- Page 11 Recycle Battery...
- Page 12 All named products and descriptions are trademarks and/or registered trademarks of the respective manufacturers and are accepted as protected. As a continuing policy of product improvement at Sharkoon, the design and specifications are subject to change without prior notice. National product specifications may vary.
- Page 13 Follow us on social media! Facebook Instagram YouTube TikTok Sharkoon Technologies GmbH Grüninger Weg 48 35415 Pohlheim Germany © Sharkoon Technologies 2024...
