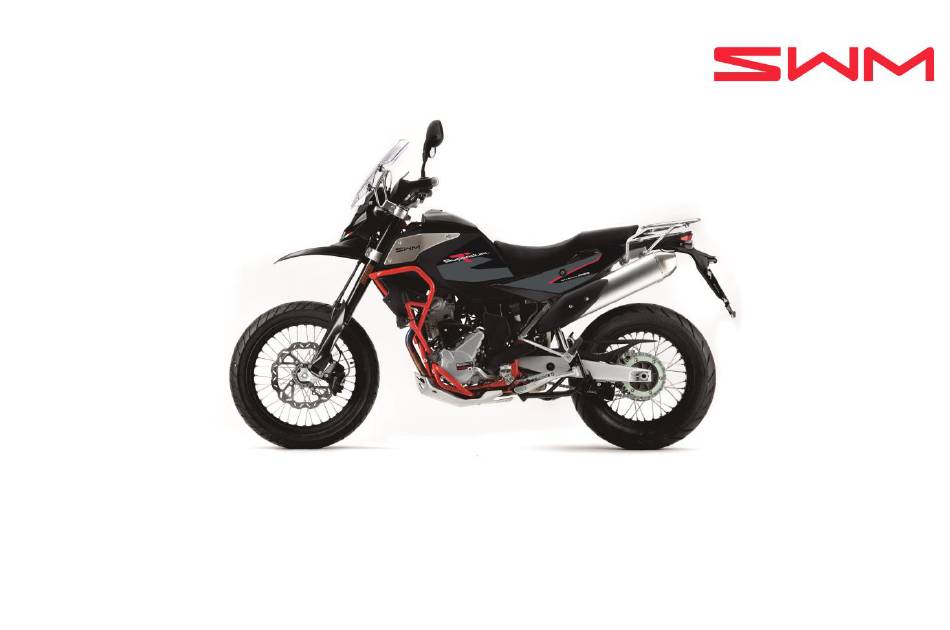

  • Page 1 SD 650 R E5 2023 Manuale rapido...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SWM MOTORCYCLES S.R.L. Thank you for choosing a SWM and would like THE SCHEDULED MAINTENANCE PROGRAMME ..........2 to remind you that to continually deliver top performance in full safety, your TECHNICAL DATA ......................3 SWM requires regular maintenance by the After Sales Service of the author- LUBRICANTS AND TOPPING UPS ................

  • Page 3: The Scheduled Maintenance Programme

    SD650 R E5 THE SCHEDULED MAINTENANCE PROGRAMME by SWM MOTORCYCLES S.R.L. Only the fiscal receipt (invoice or till receipt) SWM MOTORCYCLES S.R.L. has drawn up a scheduled maintenance pro- that will be provided by the Dealer on completion of the scheduled mainte- gramme and the pre-delivery operations to guarantee that your vehicle nance work provides proof that the service has indeed been carried out.

  • Page 4: Technical Data

    SD650 R E5 TECHNICAL DATA PRIMARY DRIVE Drive pinion gear-Clutch ring gear ............Z 32-Z 75 ENGINE Transmission ratio....................2.343 Type ...................single cylinder, 4 stroke Cooling..................Liquid with electric fan CLUTCH Bore........................100 mm. Type ............multidisc in oil bath with hydraulic control Stroke .....................
  • Page 5 SD650 R E5 REAR SUSPENSION DIMENSION, WEIGHT, CAPACITY Type....Progressive with hydraulic single shock absorber Wheelbase......................1 495mm Wheel stroke ...................... 220 mm. Overall length..................... 2265mm Overall width ....................925 mm FRONT BRAKE Overall height.....................1390 mm Type .......Floating Ø 300 mm disc (Wave) with hydraulic control Saddle height..

  • Page 6: Lubricants And Topping Ups

    SD650 R E5 LUBRICANTS AND TOPPING UPS Engine, gearbox and primary drive lubricating oil SHELL SAE 5W 40 Engine coolant MOTUL INUGEL EXPERT Brake system fluid MOTUL DOT 4 Grease lubrication MOTUL GREASE 100 Final drive chain lubrication MOTUL CHAIN LUBE Front fork oil MOTUL FORK OIL LIGHT 5W Oil for rear shock absorber...

  • Page 7: Preliminary Controls

    SD650 R E5 PRELIMINARY CONTROLS FUEL LEVEL COOLANT LEVEL Turn the ignition key to its “ON” position, check Check level (1) in right-hand radiator when en- ENGINE-TRANSMISSION OIL LEVEL the fuel level indicated on the gauge (1), and re- gine is cold (place the motorbike fully upright). Keeping the motorbike level and upright, check fuel if necessary.
  • Page 8 SD650 R E5 BRAKE FLUID LEVEL ELECTRIC SYSTEM Front brake Start the engine, as indicated in the “Instruc- The fluid level in the pump reservoir may never tions for using the motorcycle” section, and drop below the notch visible on the sightglass check that headlight and tail light, stop light, (1) on the rear of the pump body.

  • Page 9: Control Location

    SD650 R E5 CONTROL LOCATION RIGHT-HAND SIDE VIEW 1) Fuel tank cap 2) Fuel tank 3) Instrument panel 4) Headlight 5) Taillight 6) Front turning indicators 7) Rear turning indicators 8) Rear brake disc 9) Rear brake calliper 10) Combined braking control pedal 11) Rear brake pump 12) Engine oil filter 13) Engine oil dipstick...
  • Page 10 SD650 R E5 LEFT-HAND SIDE VIEW 1) Side stand 2) Front brake disc 3) Front brake calliper 4) Gear shift pedal 5) Horn 6) Fuse control unit 7) Seat 8) Transmission chain 9) Coolant radiator. 10) Plate lighting device 11) Passenger handle 12) Cooling fan 13)Coolant recovery tank EN-9...
  • Page 11 SD650 R E5 CONTROLS AND INSTRUMENTS 1) Left-hand rear-view mirror 2) Right-hand rear-view mirror 3) Instruments 4) Ignition/steering lock block 5) Clutch control lever 6) Left-hand switch 7) Right-hand switch 8) Throttle twist grip 9) Front brake control lever 10) Front brake fluid reservoir EN-10...

  • Page 12: Instructions For Using The Motorcycle

    SD650 R E5 INSTRUCTIONS FOR USING THE MO- Note*: A safety switch is set on the clutch lever support. This switch allows you to ONLY start the TORCYCLE engine with the gearbox idle, or with the gear STARTING THE ENGINE engaged and the clutch lever pulled.

  • Page 13: R.h. Handlebar Switch

    SD650 R E5 R.H. HANDLEBAR SWITCH L.H. HANDLEBAR SWITCH Warning horn The right-hand switch features the following The left-hand switch features the following con- Rear wheel ABS exclusion selector controls: trols: The rear wheel ABS function can be disabled for Dimmer switch Engine start button track riding.
  • Page 14 SD650 R E5 Note Depth spot light switch(C) IMPORTANT IN CASE OF COLD START AT LOW - To turn on the spot lights, press button (6) on TEMPERATURES the switch. It is recommended to perform a brief warm-up - To turn off the spot lights, press button (6) on at idling speed until there is a normal engine re- the switch.

  • Page 15: Digital Instrument

    SD650 R E5 DIGITAL INSTRUMENT The motorcycle is equipped with a digital instrument divided into the fol- WARNING AND SIGNAL LIGHTS lowing areas: Left turn indicator light. 1) Signal lights (see “Warning and signal lights”) Right turn indicator light. 2) Multifunction display (see “Multifunction Display”) High-beam light.
  • Page 16 The light flashes when activating the left or right hand turning indicator us- reservoir. ing the control lever on the left-hand switch. - Also visually check any coolant leaks. - If the symbol lights up again upon the following start up, contact an SWM HIGH-BEAM LIGHT “ ” Dealer.

  • Page 17: Self-Inspection

    SD650 R E5 MULTIFUNCTION DISPLAY SELF-INSPECTION 1) Speedometer ① Connect with IGN only (or connect with IGN after BAT is connected), LCD Indicates motorcycle speed. performs self-inspection. 2) Speed scale indication: ② Connect with BAT and IGN at the same time, the same as point. Km/h = kilometres /hour Mph = miles/hour BUTTON CONTROL...
  • Page 18 MIL indication displays or not is transferred to be controlled by CAN. ② MIL sts signal is 0, MIL indication OFF. ③ MIL sts signal is 1, MIL indication ON. Find the nearest closes SWM dealer to check the fault. Operate as shown for the following error codes. REVOLUTION COUNTER The rev.

  • Page 19: Appendix: Dtc List

    SD650 R E5 APPENDIX: DTC LIST System or compo- Error Error description Driver behavior nent code Coolant/Oil Temperature Sensor P0118 Circuit High Voltage or Open Coolant/Oil Sensor Stop the engine and check whether the cylinder temperature sensor is con- Coolant/Oil Temperature Sensor P0117 nected effectively.
  • Page 20 SD650 R E5 Canister solenoid valve short cir- P0458 cuit to low voltage/open circuit Front oxygen sensor signal acti- P2A00 vate failure Check if the front oxygen sensor is connected effectively. If the error still Front Oxygen Sensor persist ask for assistance. Front oxygen sensor heating cir- P00D1 cuit low current...
  • Page 21 SD650 R E5 Intake Pressure Sen- Intake pressure sensor signal er- P0109 ror fluctuation Intake Temperature Intake temperature sensor signal P0114 Sensor error fluctuation P0113 IAT Circuit High Voltage or Open Intake Air Tempera- Check if the intake air temperature sensor is connected effectively. If the ture Sensor (IAT) error still persist ask for assistance.

  • Page 22: Anti-Lock Braking System -Abs

    SD650 R E5 Check if the vehicle speed sensor is connected effectively. Use multimeter Vehicle Speed Sen- P0500 VSS No Signal to check the voltage (12V-14.7V normally). If the error still persist ask for assistance. Secondary compensating P2257 valve open circuit/short circuit Secondary air com- Check if the secondary air compensating valve is connected effectively.

  • Page 23: Motorcycle And The Engine Stop

    SD650 R E5 MOTORCYCLE AND THE ENGINE STOPPING THE MOTOR IN AN EMERGENCY STOP -Flick the red switch (7) to stop the engine -Fully close the throttle twist grip (1) to deceler- and then flick it back to position ate the motorcycle. When the bike is off, place it on its side stand.

  • Page 24: Sidestand

    SD650 R E5 SIDESTAND CENTRAL STAND To lower the motorcycle from the central stand, proceed as follows. When the bike is off, place it on its side stand. A - Grab the left knob (1) of the handle and the - Grab the left handlebar (1) grip and the rear (2) side stand (1) is supplied with every motorcycle.

  • Page 25: Steering Lock

    SD650 R E5 STEERING LOCK SADDLE REMOVAL Insert the key into the lock (1) and turn it clock- The steering lock is integrated with ignition lock (1).Lock the steering as follows: wise to unhook the saddle from the rear hook -Turn the handlebar to the left;...

  • Page 26: Fuses

    SD650 R E5 FUSES FD- 20A (cable sheath with “FDC” written Fuse malfunction could cause problems for the on it): heater fan, rear stop, high beam, motorcycle. In order to access the fuses, do the low beam, directional signals, horn, following: dashboard power (instrument function Remove the saddle after turning the rear fas-...

  • Page 27: Warranty

    SD650 R E5 WARRANTY AND SERVICE BOOKLET EN-26...
  • Page 28 • Brake pads and discs. so that the Dealer may verify the delivery date of If your SWM Dealer could not fulfil your needs in • Clutch discs and bodies. the vehicle. a reasonable time or should it be more conven- •...
  • Page 29 Important note for validity of the warranty: •The warranty booklet must be carefully kept and presented to the official SWM dealer every time the vehicle is brought in for service EN-28...
  • Page 30 SD650 R E5 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 31 The motorcycle has been made ready for delivery by performing all of the checks and pre-delivery actions livery of the motorcycle as described above, as provided for by SWM MOTORCYCLES S.R.L., and fitted out with all the possible optional parts as re- equipped and fully compliant with my expec- quested by the Buyer.
  • Page 32 SD650 R E5 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 33 Mail in a closed envelope to: SWM MOTORCYCLES S.R.L. Servizio Assistenza Tecnica, Via Nino Bixio, 8 – 21024 Biandronno (VA) -Italy SWM MOTORCYCLES S.R.L. and its official sales organization state that the personal details of the purchaser, in accordance with the Law 675/1996 and later amendments, may take place without the Customer’s con sent, as implementation of obligations to provide Post-sales Service.
  • Page 34 SD650 R E5 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 35 SD650 R E5 Space reserved for storing fiscal documents proving that scheduled maintenance services have been carried out. SERVICE DATE Km/Ml Customer’s signature Dealer’s st amp SERVICE DATE Km/Ml Customer’s signature Dealer’s stamp SERVICE DATE Km/Ml Customer’s signature Dealer’s st amp SERVICE DATE Km/Ml...
  • Page 36 SWM Motorcycles srl, Via Nino Bixio 8, 21024 Biandronno (VA), Italy ph. +390332769911, fax +390332769958, info@swm-motorcycles.it, www.swm-motorcycles.it Assembled in CN -Imported by SWM Motorcycles...
