Summary of Contents for PowerPac PPV2000

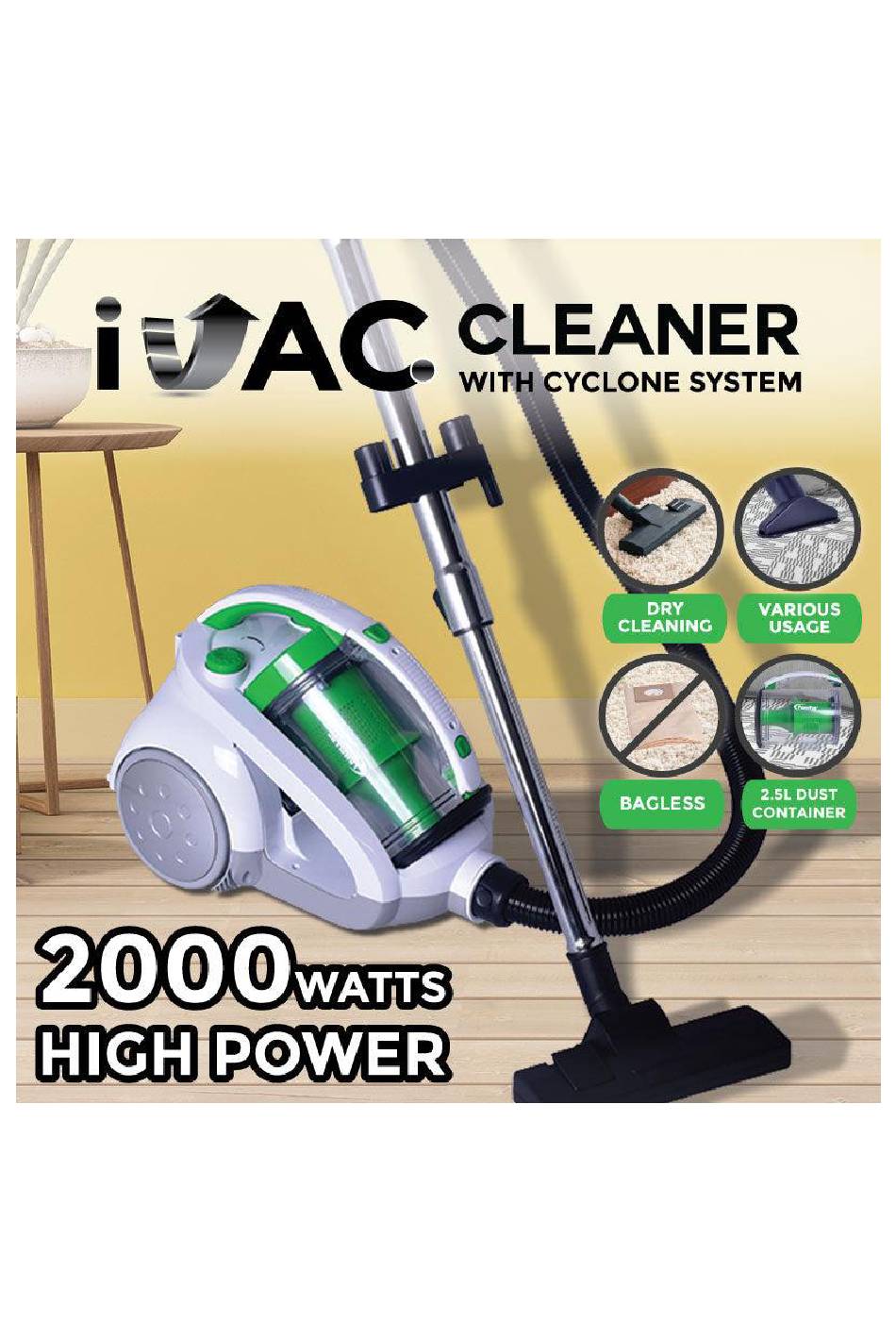

- Page 1 BAGLESS VACUUM, CYCLONE VACUUM with HEPA FILTER 2000 W PPV2000...
- Page 2 Parts & Description Hose Handle Suction Control Hose Switch Nozzle Extension Tube Dust Cup Dust Cup Handle Handle Cable Rewind Button ON/OFF Button 3-Pin Plug Air Outlet Big Wheel Hose Socket Floor Brush Suction Head Dust Cup Filter Cover...
- Page 3 How to Assemble Hose Connection To connect Hose: Insert the Hose Socket of Hose into the Suction Head; tightens with a “click” sound. 2 buttons To disconnect Hose: Press the two buttons on the side of the Hose Hose Socket of the Hose and pull out the Socket Hose Socket.
- Page 4 Crevice Nozzle Crevice Nozzle for reaching into corners or cracks. Bristle Brush Bristle Brush for cleaning bookshelves, curtains or furniture. Suction Control Suction Control Switch situated at the Hose Handle allows control of suction power. ON/OFF Button Press the ON/OFF Button to turn ON / OFF Cable Rewind the appliance ON or OFF.
- Page 5 How to Use Tube Connection Hose Connection Suction Control ON/OFF Button To connect: Insert the To connect: Insert disconnect: Suction Press Nozzle of the Hose the Hose Socket Press Control switch ON/OFF Button (narrow end) into the of the Hose into buttons on the side situated turn...
- Page 6 Warnings ATTENTION : Read this booklet carefully as it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference. The following basic precautions should always be followed when using electrical appliances: 1. Read all instructions before using the appliance. The Appliance 2.
- Page 7 7. Avoid the use of adapters and/or extension cables; if their use is absolutely necessary, use only materials in compliance with the current safety regulations and whose marked electrical rating should be at least as high as the electrical rating of the appliance.
- Page 8 Operation 15. If you are using the appliance for the first time, you should: a. Clean the exterior of the appliance with warm water & dishwashing liquid with a non-abrasive sponge. DO NOT use metal scouring pads. b. Place and use the appliance upright on a horizontal, stable, dry and heat-resistant surface.
- Page 9 16. During operation, DO NOT touch the appliance with wet body parts, and it is recommended to have between you and the standing surface, an isolating element (for example, wearing shoes with rubber soles). 17. DO NOT soak the appliance (except the Dust Cup) as well as its power cable in water or other liquids, wash it under the tap, or let any liquid flow into the internal casing of the appliance to prevent electric shock.
- Page 10 How to clean WARNING: The appliance must NEVER be used without the HEPA filter contained within the Dust Cup. Always place it back after cleaning it. When the suction power decreases, the filter might be clogged. Using the appliance with a clogged filter puts additional strain on the motor.
- Page 11 Dust Cup Cover Button Lock Button Press the Lock Button to remove the Dust Cup from the main body by lifting it up. Place the Dust Cup in a vertical Dust Cup position with the Dust Cup Cover (back in colour) at the bottom, directly above a trash bag.
- Page 12 Separate the parts of the Dust Cup Holding the Dust Cup Handle in one hand and the Dust Cup Filter Cover in the other, twist the Dust Cup Filter Cover anti-clockwise. Lift the Dust Cup Filter Cover out of the Dust Cup. Lift the Dust Cup Filter out of the Dust Cup.
- Page 13 Air Inlet Filter Insert your thumb and middle finger into the openings (upper & lower holes) of the Air Inlet Filter and Air Inlet openings turn anti-clockwise. Pull out the Air Inlet Filter from the appliance. Separate the black sponge from the Air Inlet Filter and rinse both the sponge and the Air Inlet Filter under...
-
Page 14: On/Off Button
Problem Solving Problem Possible Causes How to Solve Insert the plug into the wall The plug is not properly socket. inserted in the wall socket. adaptors or extensions. The wall switch is not Turn wall socket switched ON and/or the and/or the ON/OFF Button ON/OFF Button is not... - Page 15 Check that the Dust Cup is The Dust Cup has not correctly locked into the been correctly locked into main body and ensure the the main body. Dust been emptied. The Dust Cup Filter Cover Check that the Dust Cup is not tightly locked in the Filter Cover is locked in Dust Cup.
- Page 16 DISPOSAL: Do not dispose this appliance as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. SPECIFICATIONS MODEL PPV2000 DIMENSIONS L 409 x W 278 x H 315 mm VOLTAGE 220 – 240 V ~ FREQUENCY 50 –...
- Page 17 However, if the customer still requests that the defective appliance be repaired, PowerPac Electrical Pte Ltd may, at its discretion, repair the appliance but impose a labour charge, as well as the costs of the replacement parts, to be borne solely by the customer.
- Page 18 In accordance with the terms and conditions of this limited warranty as stated above, PowerPac Electrical Pte Ltd, at its expense shall provide free services for the appliance within the warranty period from its date of purchase from our Authorised dealers.
