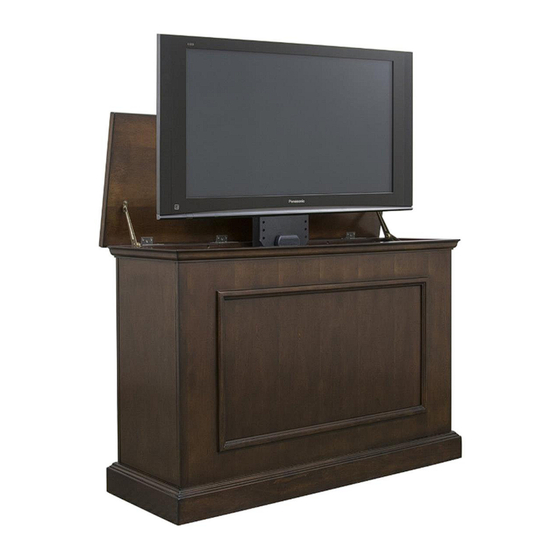

- Page 2 Touchstone Elevate Mini 800.215.1990 www.touchstonehomeproducts.com rev. 20240514...
-
Page 3: Table Of Contents
Touchstone Elevate Mini Table of Contents Table of Contents Lift Components & TV Installation Hardware......................6 Components ................................6 Hardware ................................... 6 Removing Front Panel ..............................7 Operating the Lift ............................... 9 Wired Handset Control ............................. 9 Wireless RF Control ............................10 Pairing RF Remote Control to Control Box ....................... - Page 4 30 seconds at the push of a button. - Easily conceal your cables with the Elevate Mini. Cables can be neatly tucked away by feeding them through an opening in the bottom of the cabinet.
- Page 5 Touchstone Elevate Mini Safety Installing your Flat Screen TV in your Touchstone Elevate Mini TV lift cabinet is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to insure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual.
-
Page 6: Lift Components & Tv Installation Hardware
Touchstone Elevate Mini Lift Components & TV Installation Hardware Note: If you purchased Lift Installation Services, the SRV is already installed in your cabinet. You can skip ahead to p.17 of this manual. Components Lift Parts Number Part Number Part Name... -
Page 7: Removing Front Panel
Touchstone Elevate Mini Removing Front Panel The front access panel can easily be removed for access to the inside of the unit. 1. Raise lid and lock the lid hinges so that the lid stays open. 2. Locate the panel clips on the inside front panel of the cabinet. - Page 8 Touchstone Elevate Mini Removing Front Panel – cont 4. Remove panel by tilting panel towards inside of unit and lifting out through the top of the unit. Front Panel Tilted Inward Front Panel Removed 800.215.1990 www.touchstonehomeproducts.com rev. 20240514...
-
Page 9: Operating The Lift
Touchstone Elevate Mini Operating the Lift The SRV PRO TV Lift can be controlled through the provided wired handset controller or the wireless remote control. Wired Handset Control Lift Height: Shows the height of the lift in inches. UP Button: PRESS and HOLD this button to raise the lift. Releasing this button will stop the lift. -
Page 10: Wireless Rf Control
Touchstone Elevate Mini Operating the Lift – cont. Wireless RF Control Wireless RF Function Remote Button UP Button: PRESS the button once to raise the lift. The lift will raise all the way up unless the another button on the remote is pressed. -
Page 11: Advanced Automation Controls
Operating the Lift – cont. Advanced Automation Controls The Touchstone SRV PRO TV Lift control box comes equipped with additional input/output features that allow you to connect external devices, such as third-party automation systems that can be controlled by a universal remote control. - Page 12 Advanced Automation Controls RS232 Controls The Touchstone SRV PRO TV Lift can also be controlled by third-party automation systems via a RS232 serial connection. The input connector on the control box uses a standard RJ-25 connection, The pinout of the connector is illustrated below.
-
Page 13: Mounting And Installing The Tv
Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV. - Page 14 Touchstone Elevate Mini Attaching TV Mounting Brackets To Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the round holes are toward the top of the TV, while the elongated holes are toward the bottom of the TV.
-
Page 15: Installing Tv On Lift
Touchstone Elevate Mini Installing TV on Lift 1. Using the wired handset control, press the UP button to move the lift to the highest position. 2. Hang TV on top crossbracket so that the top set of hooks on the TV bracket overlap the top bar of the flat panel TV mount. -
Page 16: Locking Tv To Flat Panel Tv Mount
Touchstone Elevate Mini Locking TV to Flat Panel TV Mount Once the TV is mounted to the lift, the TV can be locked to the flat panel TV mount so that the TV does not slide from side to side. To lock the TV into place, tighten the 2 long screws on the bottom of each TV bracket. The screws will tighten so that they lock against the bottom crossbracket of the flat panel TV mount. - Page 17 Technical Support and Troubleshooting Should you have any problems with your Touchstone Home Products SRV PRO TV Lift, our technical support staff is here to help. Our technical support reps are available by phone at 1-800-215-1990 Monday to Friday, from 8:00am to 5:00pm EST.
-
Page 18: Warranty
Touchstone Elevate Mini Warranty Touchstone Home Products warrants the SRV PRO TV Lift to be free from defects in material and workmanship for three (3) years from date of purchase. The warranty includes all parts, motorized components, electronics, and metal. If the SRV PRO TV Lift proves to be defective in material or workmanship during the warranty period, Touchstone Home Products will replace the defective part free of charge. - Page 19 Touchstone Elevate Mini 800.215.1990 www.touchstonehomeproducts.com rev. 20240514...
- Page 20 Touchstone Elevate Mini 800.215.1990 www.touchstonehomeproducts.com rev. 20240514...
