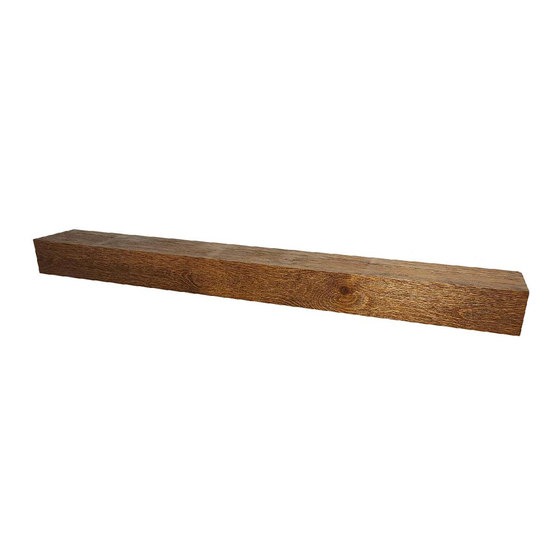

Encase Shelf Mantel
Model # : 90002, 90003, 90004
90005, 90006, 90007
INSTALLATION MANUAL
Read and understand this entire installation manual, including all safety
information, before mounting the mantel on the wall. Failure to do so could
WARNING
cause the mantel to not be secured to the wall properly.
Keep this installation manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Touchstone Encase 90002
Summary of Contents for Touchstone Encase 90002
- Page 1 Encase Shelf Mantel Model # : 90002, 90003, 90004 90005, 90006, 90007 INSTALLATION MANUAL Read and understand this entire installation manual, including all safety information, before mounting the mantel on the wall. Failure to do so could WARNING cause the mantel to not be secured to the wall properly. Keep this installation manual for future reference.
-
Page 2: Table Of Contents
Encase Shelf Mantel Table of Contents Encase Shelf Mantel Dimensions ..........................2 Unpacking Your Encase Shelf Mantel ........................3 Parts and Hardware ..............................3 Tools Required ................................ 3 What’s Included in the Box ............................. 3 Installation ..................................3 Choosing Installation Location ........................... 3 Installing Wood Mounting Bracket .......................... -
Page 3: Unpacking Your Encase Shelf Mantel
Installation Choosing Installation Location • If mounting above a Touchstone Home Products Electric Fireplace, measure wall location so that location for mounting the Encase Shelf Mantel meets the recommended clearances. • Minimum clearances (measurements taken from front of glass panel): 24”... -
Page 4: Installing Wood Mounting Bracket
Encase Shelf Mantel Installation – cont. Installing Wood Mounting Bracket Tools and Parts Required: Tools Needed: - Power drill and drill bits 8mm Screws 1 ½” Drywall Anchors - Stud Finder 4 – 60” mantels Wood Mounting Bracket - 1 4 –... -
Page 5: Installing Encase Shelf Mantel
Encase Shelf Mantel Installation – cont. Installing Encase Shelf Mantel Parts Required: Encase Shelf Mantel - 1 Instructions: 1. Align and place the mantel on the wood mounting bracket. The mantel will lock into place on the mantel. 2. The Encase Shelf Mantel is now ready for use. NOTE: The maximum weight capacity of the Encase Shelf Mantel is 50lbs. -
Page 6: Warranty
Touchstone Home Products®, Inc warrants our Encase Shelf Mantel to be free of defects in material and workmanship for one year from date of purchase. Touchstone will replace any Encase Shelf Mantel that is deemed defective or becomes defective during normal use within one year after the date of purchase. - Page 7 Encase Shelf Mantel 800.215.1990 www.touchstonehomeproducts.com Update: 20231211...
