- Page 1 Whisper Lift II PRO...

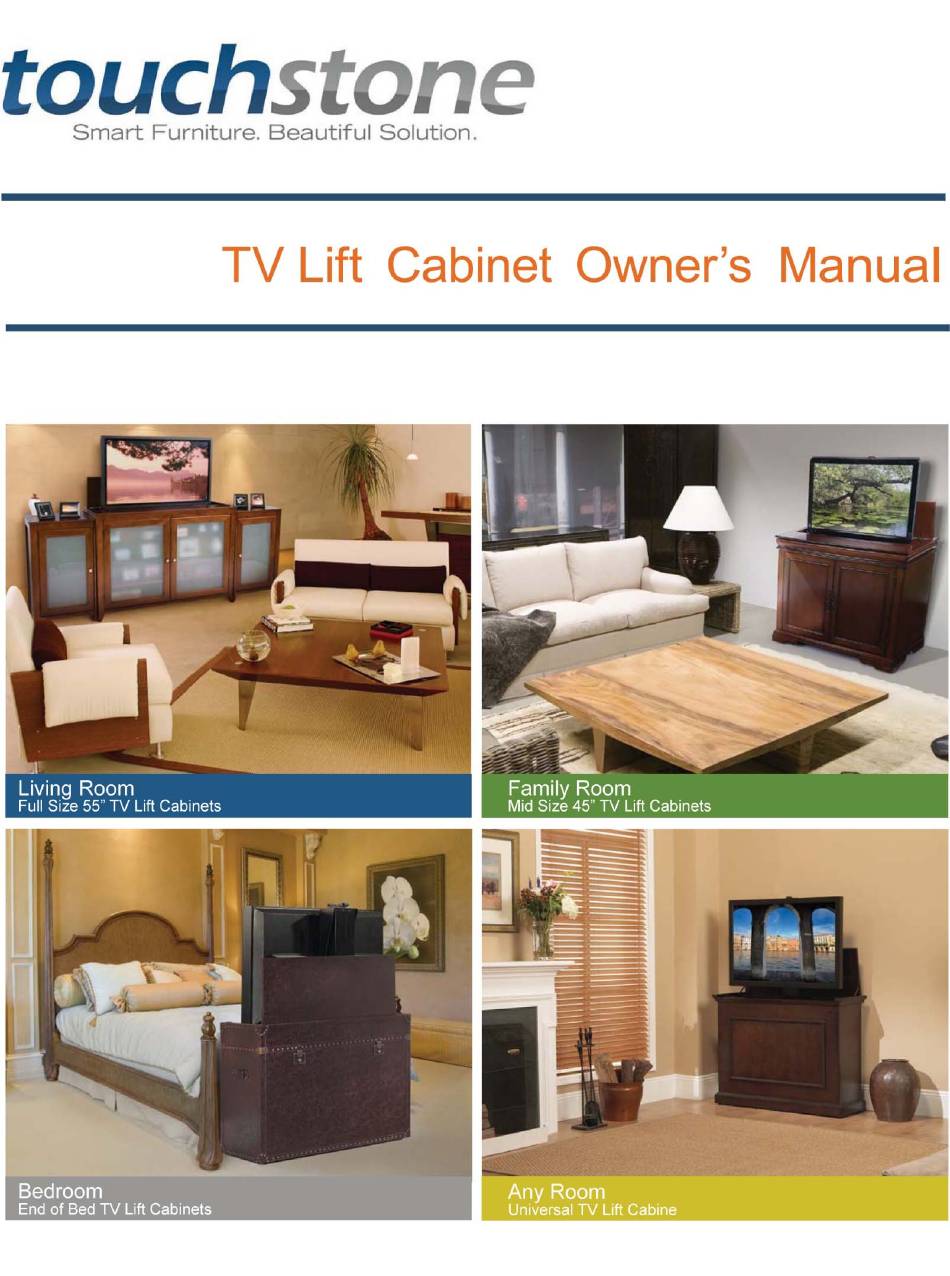

- Page 2 Touchstone TV Lift READ ME FIRST 1. After completing the unpacking and uncrating of the cabinet, you will find the Owner’s Manual, TV, installation hardware, and the wireless remote all together and sealed in a clear plastic envelope and affixed to the underside of the cabinet.
-
Page 3: Table Of Contents
Whisper Lift II PRO TV Lift Features ..............Error! Bookmark not defined. Initialize the Whisper Lift II PRO Lift ..............Error! Bookmark not defined. Pairing Universal IR Remote with Whisper Lift II PRO ......... Error! Bookmark not defined. Setting Lift Height ....................Error! Bookmark not defined. ... -
Page 4: About Your Touchstone Tv Lift Cabinet

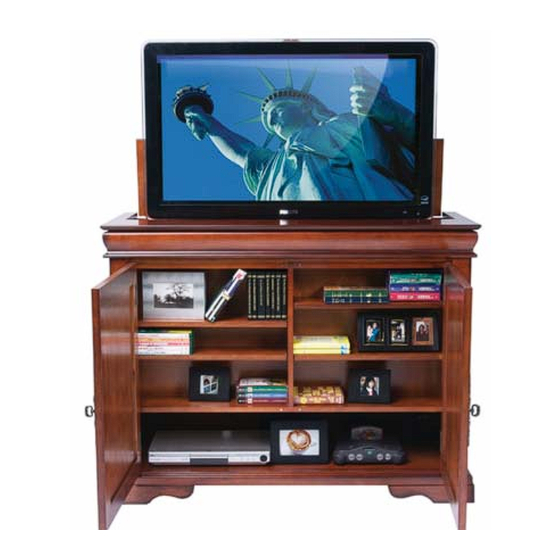

About Your Touchstone TV Lift Cabinet Congratulations on the purchase of your Touchstone TV Lift Cabinet. Touchstone Home Products takes pride in the quality of our cabinet craftsmanship and the smooth functionality of our TV lift mechanism. Please take a few minutes to learn about the features of your TV lift cabinet to insure you get the optimum use and performance from your new purchase. -
Page 5: Other Features Common To All Touchstone Cabinets
Touchstone TV Lift About Your Touchstone TV Lift Cabinet – cont. Other features common to all Touchstone cabinets All cabinets come with adjustable feet in all four corners of the cabinet. These can be used to raise/lower the cabinet, and to level the cabinet so that all doors and lid operate smoothly. -
Page 6: Safety
Touchstone TV Lift Safety Installing your Flat Screen TV in your Touchstone TV lift cabinet is fast and easy. Operating your lift is very straightforward. However, to avoid the risk of personal injury and to insure optimum performance of your TV lift mechanism, please pay particular attention to the warnings and safety notices throughout this manual. -
Page 7: Lift Components & Tv Installation Hardware
If that is the case, these screws can be purchased at most hardware/home improvement stores. Tools In order to assemble the Whisper Lift II PRO, you will need the following tools: - Philips-head screwdriver - size 4 metric hex wrench... -
Page 8: Operating The Whisper Lift Ii Pro Tv Lift
Initialize the Whisper Lift II PRO Lift PLEASE RUN INITILIZATION PROCEDURE BEFORE OPERATING LIFT AFTER INSTALLATION! Before you run the Whisper Lift II PRO Lift, you will need to initialize the Control box. To initialize the control box, you will need to do the following: 1. -
Page 9: Operating The Wireless Remote
18 of this manual. Operating the Wired Remote A wired control is included with your Touchstone Whisper Lift II PRO TV Lift, which can be mounted inside of the cabinet and control the lift should you misplace the wireless remote control. -
Page 10: Mounting And Installing The Tv
Please consult your TV manufacturer for the size of the mounting holes in the back of your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV. - Page 11 Touchstone TV Lift Attaching TV Mounting Brackets to Flat Panel TV- cont 3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.
-
Page 12: Installing Tv On Lift
Touchstone TV Lift Installing TV on Lift 1. Using the internal wired control, move the lift to the up position. The UP button is the button opposite of the cable side of the wired remote. DOWN 2. Hang TV on top crossbracket. -
Page 13: Installing Locking Brackets On Whisper Lift Ii Pro Tv Lift
Touchstone TV Lift Installing Locking Brackets on Whisper Lift II PRO TV Lift Tools Needed: - Philips-head screwdriver Instructions 1. Locate the bag with the Locking Bracket Kit included with your lift. In this bag, there will be 2 brackets and 2 philips-head screws. - Page 14 Touchstone TV Lift Installing Locking Brackets on Whisper Lift II PRO TV Lift – cont. 3. Place the angled end of the bracket into the slots in the TV mounting bracket just below the bottom cross bracket on the lift, as shown in the diagram below.
-
Page 15: Setting Height Of Adjustable Roller Assembly
Touchstone TV Lift Setting Adjustable Roller Height Each Whisper Lift II PRO comes with an adjustable roller assembly that allows you to set the maximum height of the lift. Tools Needed: - none Instructions: 1. Raise the lift to a height that is comfortable for you to work at. -
Page 16: Initialize The Whisper Lift Ii Pro Lift
Initialize the Whisper Lift II PRO Lift PLEASE RUN INITILIZATION PROCEDURE BEFORE OPERATING LIFT AFTER INSTALLATION! Before you run the Whisper Lift II PRO Lift, you will need to initialize the Control box. To initialize the control box, you will need to do the following: 1. -
Page 17: Pairing Universal Ir Remote With Whisper Lift Ii Pro
Pairing Universal IR Remote with Whisper Lift II PRO Advanced The Whisper Lift II PRO Advanced TV Lift can be paired with your existing universal IR remote control. To pair a universal IR Remote control with the Whisper Lift II PRO Advanced TV Lift, please follow the directions below: 1. -
Page 18: Setting Lift Height
Whisper Lift II PRO Advanced TV Lift Features - cont Setting Lift Height The Whisper Lift II PRO Lift has the ability to save a preset lift height. To set the lift height, you will need to do the following: 1. -
Page 19: Whisper Lift Ii Pro Accessories
Whisper Lift II PRO Accessories Install IR Sensor (included) If you plan to use the Whisper Lift II PRO TV Lift with an existing IR remote control, attach the IR sensor to port B on the side of the control box. -
Page 20: Infrared Repeater Kit (Optional)
Infrared Repeater allows the customer to install a small satellite TV/cable box in the bottom of the cabinet. The Touchstone Infrared Repeater allows the user to change the channel on their box without having direct line of sight to the component. -
Page 21: Touchstone Home Products Limited Warranty
Touchstone Home Products Limited Warranty Warranty Coverage Touchstone Home Products, Inc warrants the lift mechanism and control box units to be free of defects in material and workmanship for five years. Touchstone Home Products, Inc warrants the cabinet (lift not included) to be free of defects in material and workmanship for two years. - Page 22 Touchstone TV Lift Notes: www.touchstonehomeproducts.com 800.215.1990...
- Page 23 Touchstone TV Lift www.touchstonehomeproducts.com 800.215.1990...
- Page 24 Touchstone TV Lift www.touchstonehomeproducts.com 800.215.1990...
