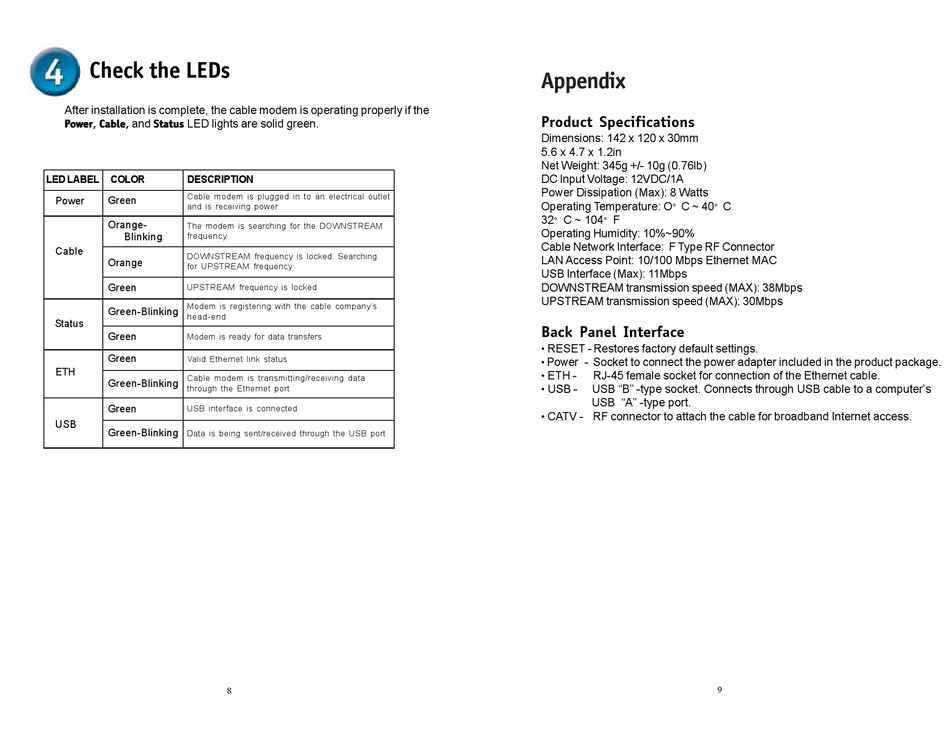

Check the LEDs

After installation is complete, the cable modem is operating properly if the
Cable, and Status
Status LED lights are solid green.
P P P P P o o o o o w w w w w er er er er er, Cable
Cable
Cable
Cable
Status
Status
Status
LED LABEL
COLOR
DESCRIPTION
Cable modem is plugged in to an electrical outlet
Power
Green
and is receiving power
Orange-
The modem is searching for the DOWNSTREAM
Blinking
frequency
Cable
DOWNSTREAM frequency is locked. Searching
Orange
for UPSTREAM frequency
Green
UPSTREAM frequency is locked
Modem is registering with the cable company's
Green-Blinking
head-end
Status
Green
Modem is ready for data transfers
Green
Valid Ethernet link status
ETH
Cable modem is transmitting/receiving data
Green-Blinking
through the Ethernet port
Green
USB interface is connected
USB
Green-Blinking
Data is being sent/received through the USB port
8
Appendix

Product Specifications

Dimensions: 142 x 120 x 30mm
5.6 x 4.7 x 1.2in
Net Weight: 345g +/- 10g (0.76lb)
DC Input Voltage: 12VDC/1A
Power Dissipation (Max): 8 Watts
Operating Temperature: O
C ~ 40
°
°
32
C ~ 104
F
°
°
Operating Humidity: 10%~90%
Cable Network Interface: F Type RF Connector
LAN Access Point: 10/100 Mbps Ethernet MAC
USB Interface (Max): 11Mbps
DOWNSTREAM transmission speed (MAX): 38Mbps
UPSTREAM transmission speed (MAX): 30Mbps
Back Panel Interface
RESET - Restores factory default settings.
Power - Socket to connect the power adapter included in the product package.
ETH -
RJ-45 female socket for connection of the Ethernet cable.
USB -
USB "B" -type socket. Connects through USB cable to a computer's
USB "A" -type port.
CATV - RF connector to attach the cable for broadband Internet access.
C
9
