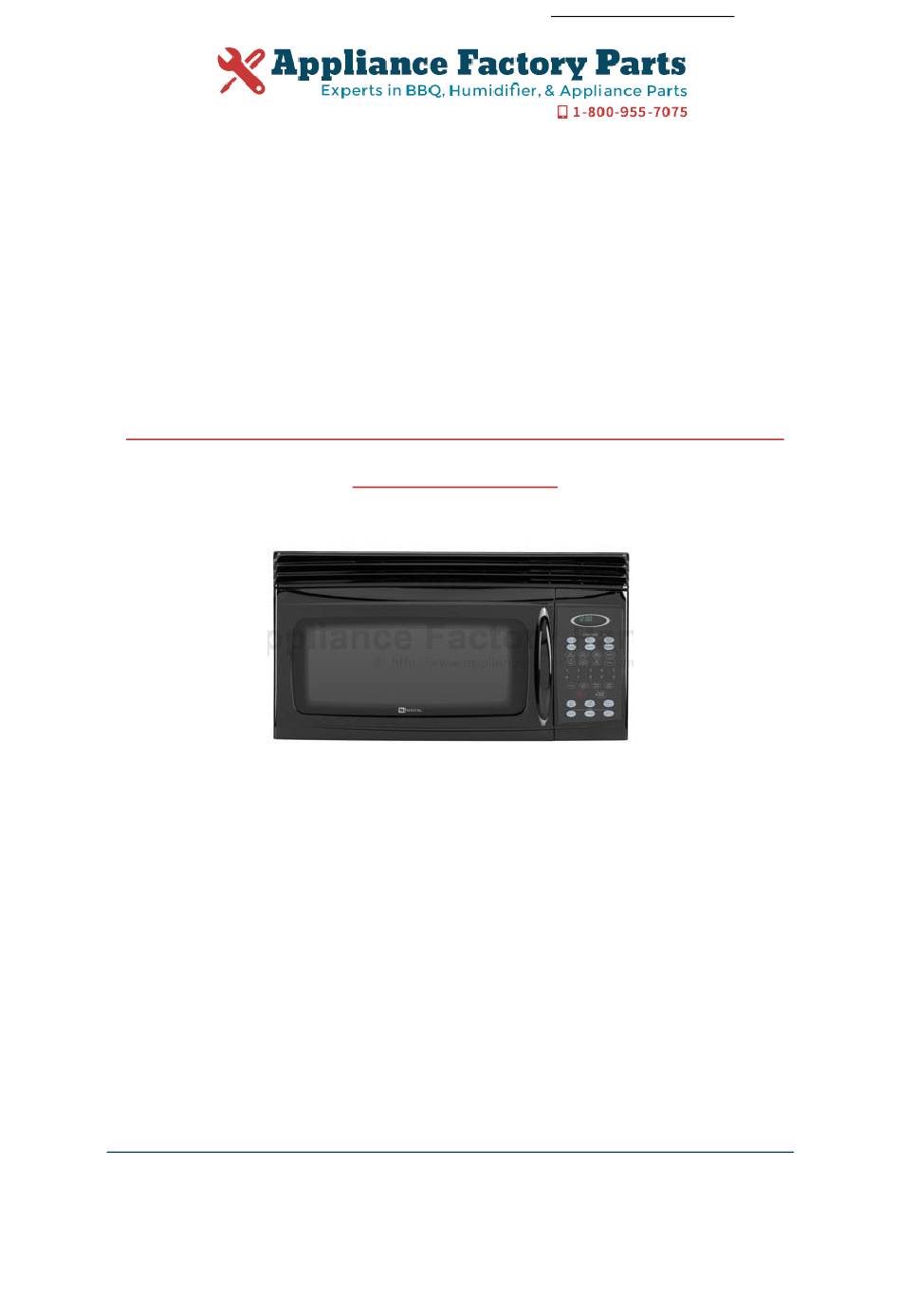

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAYTAG MMV5165AAQ Owner's Manual Shop genuine replacement parts for MAYTAG MMV5165AAQ Find Your MAYTAG Microwave Parts - Select From 71 Models -------- Manual continues below --------...
-
Page 2: Table Of Contents
Over The Range Over The Range Installation Instructions Contents Important Safety Information ....... 2 Parts, Tools, Materials ......... 6 STEP 1: Prepare The Electrical Connection ..8 STEP 2: Prepare The Venting System ....9 STEP 3: Prepare The Venting Blower ....11 STEP 4: Prepare The Wall &... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A. DO NOT attempt to operate this oven with the C. DO NOT operate oven if it is damaged. It is door open since open-door operation can result particularly important that oven door close in harmful exposure to microwave energy. - Page 4 IMPORTANT SAFETY INFORMATION Recognize this symbol as a SAFETY message WARNING When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns, electrical shock, fire, or injury to persons. 1. READ all instructions before using equipment. Contact nearest authorized service facility for examination, repair, or adjustment.
- Page 5 IMPORTANT SAFETY INFORMATION FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY) This equipment generates and uses ISM frequency Reorient the receiving antenna of the radio or energy and if not installed and used properly, that is in television. strict accordance with the manufacturer’s instructions, Relocate the Microwave Oven with respect to the may cause interference to radio and television...
- Page 6 IMPORTANT SAFETY INFORMATION Make Sure You Have Enough Space WARNING And Support Mount the oven against a flat, vertical wall, so it is To avoid risk of personal injury, install microwave oven supported by the wall. The wall should be constructed only as instructed.
-
Page 7: Parts, Tools, Materials
Parts, Tools, Materials THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts. Damper/duct connector One power cord clamp and (for roof venting or wall venting installation) One dark-colored mounting screw Not Actual Size (2 pieces must be assembled as (to hold the power cord) shown) - Page 8 Parts, Tools, Materials You will need the following tools and materials for the installation: Carton or other heavy material for covering the counter top. Clear Tape Stud Finder or Thin Nail (for taping the templates to the wall) Keyhole Saw (for the power cord hole) Saber Saw (for cutting vent holes for roof or wall vending)
-
Page 9: Step 1: Prepare The Electrical Connection
STEP 1: Prepare The Electrical Connection W A R N I N G AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4. Upper NOTE: The outlet should be on a circuit dedicated to the Cabinet... -
Page 10: Step 2: Prepare The Venting System
STEP 2: Prepare The Venting System NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 10. W A R N I N G - F I R E H A Z A R D THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways. - Page 11 STEP 2: Prepare The Venting System Standard Fittings NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking. Duct Length The total length of the duct system, including straight duct, elbows, transitions, and wall or roof caps must not exceed the equivalent of 140 feet.
-
Page 12: Step 3: Prepare The Venting Blower
STEP 3: Prepare The Venting Blower W A R N I N G To avoid risk of property damage, unplug the microwave oven or disconnect power at source by removing fuse or throwing circuit breaker. To avoid risk of personal injury, wear protective gloves when handling mounting plate. DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in electrical shock. - Page 13 STEP 3: Prepare The Venting Blower 4. Reassemble the blower wire. See Figure 14. 5. Rotate the unit so that the exhaust ports face the rear of the cabinet. See Figure 16. When you insert blower unit, blower wire must be like figure 15. 6.
-
Page 14: Step 4: Prepare The Wall & Upper Cabinet
STEP 4: Prepare The Wall & Upper Cabinet W A R N I N G To avoid personal injury or property damage, do not attempt to install this microwave oven if you cannot find a wall stud. Measure And Track/Tape Up The Templates 1. - Page 15 STEP 4: Prepare The Wall & Upper Cabinet W A R N I N G To avoid risk of personal injury, electrical shock or death: Note where electrical outlets and electrical wires are before you drill into the wall. Locate and disconnect power to any electrical circuits that could be affected by installing this oven.
-
Page 16: Step 5: Install The Mounting Plate
STEP 5: Install The Mounting Plate The Oven Must Be Connected To At Least One 3/16 Hole on Studs 5/8 Hole on Dry wall Only Wall Stud. " Minimum 66 From the Floor 1. Draw a vertical line on the wall at the center of the 30 wide For Wall- space. - Page 17 STEP 5: Install The Mounting Plate For Wall-Vented Make the box cutout for the rear wall duct. – 1 piece mounting plate: Us ing a pencil, put dots through slots F and G, and through holes H and I. Remove the mounting plate and draw lines extending through the points.
-
Page 18: Step 6: Attach The Oven To The Wall
STEP 6: Attach The Oven To The Wall W A R N I N G To avoid risk of personal injury or property damage, you will need two people to install this microwave oven. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 27) at the bottom of the mounting power cord plate.Reaching through upper cabinet, thread... - Page 19 STEP 6: Attach The Oven To The Wall 5. Roof venting installation: See Figure 33. Install ductwork through the vent opening in the upper cabinet. Complete the venting system through the roof according to the method needed. See "Prepare The Venting System"...
