Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.

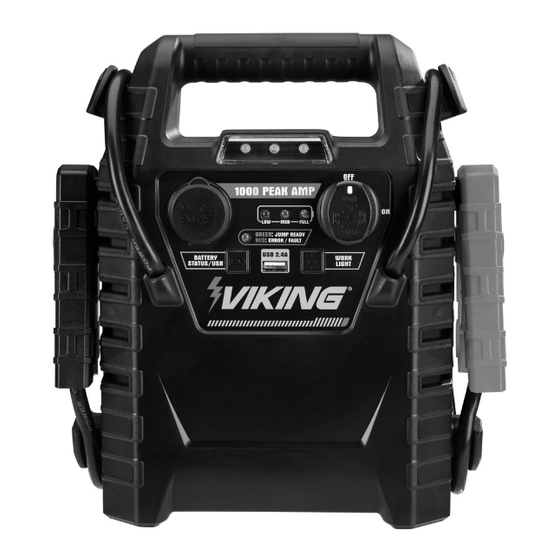

LEAD-ACID MULTI-FUNCTION
cHarGe
cOMpLeteLy
iMMeDiateLy
aFter
pUrcHaSe.
Fully recharge
after each use.
Fully recharge every
30 days to ensure
long battery life.
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2023 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
JUMP STARTER
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23k
59531

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 59531 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viking 59531

  • Page 1 Fully recharge every 30 days to ensure long battery life. Visit our website at: http://www.harborfreight.com 59531 email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible.
  • Page 2: Table Of Contents

    Risk of Eye Injury. Wear ANSI-approved splash-resistant safety goggles. Alternating Current Read the manual before Amperes set-up and/or use. Cold Cranking Amps WARNING marking concerning Risk of Fire. Reserve Capacity Follow connection procedure. Ampere-hours Page 2 For technical questions, please call 1-888-866-5797. 59531...
  • Page 3: Safety

    A moment of inattention produce a short-circuit current high enough to weld while operating Jump Starter may a ring or the like to metal, causing a severe burn. result in serious personal injury. 59531 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4: Specifications

    24″ L 6AWG Maximum Air Pressure 150 PSI USB: 1x5V, 2.4A Outlets 12V Auxiliary: 1x10A Functions: 12 Volt Jump-Starter, Air Compressor, 12  V DC Power Supply, and 3 LED Work Light, USB Power Page 4 For technical questions, please call 1-888-866-5797. 59531...
  • Page 5: Setup

    Outlet charge indicator Lights negative Battery cable Work Light Button USB port Battery test Button / USB power Button air compressor Switch pressure Gauge 120Vac charging input plug air Hose compartment 59531 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 When yellow light comes on while pressing the Battery Test Button. approximate b. After each Jump-Start. ac charge time c. Once a month. Initial Charge: 15 hours Recharge: 12 hours Page 6 For technical questions, please call 1-888-866-5797. 59531...
  • Page 7 (7 amps x 12V = 84 Watts) to Electric Cooler run the item. This figure is within the capacity Air Compressor of the unit (10 amps x 12V = 120 Watts). 59531 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8: Operation

    1. Thread the Tire Inflator over the valve stem firmly, making sure it is fully seated. tire inflator Hose Figure B: 2. Attach the proper adapter to the Tire Figure a: Inflator for the object to be inflated. Page 8 For technical questions, please call 1-888-866-5797. 59531...
  • Page 9 3. When finished, unplug the device from the USB Port. needed, following the instructions in the “charging the Jump Starter” section on page 6. note: To prolong Jump Starter battery life, keep Jump Starter battery fully charged. 59531 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10: Maintenance

    6. Replace the back panel and the screws. Page 10 For technical questions, please call 1-888-866-5797. 59531...
  • Page 11: Parts List And Diagram

    Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Internal parts are not user-serviceable and are not available. Specify UPC 193175473479 when ordering parts. 59531 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12: Warranty

    pLeaSe reaD tHe FOLLOWinG careFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
