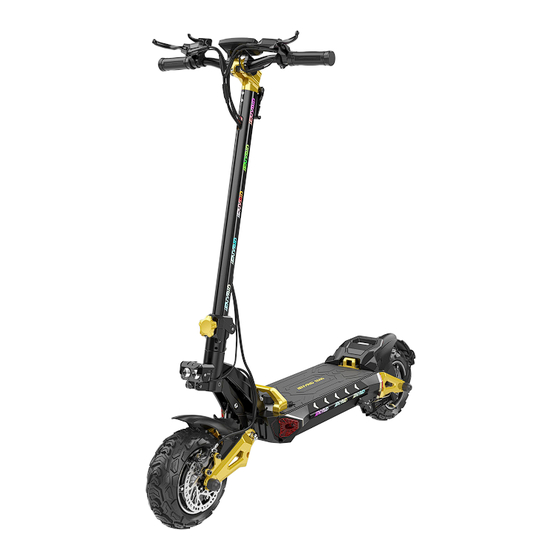

Dual motor electric scooter

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iENYRID ES60

  • Page 2 USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING Scan QR Code Or Enter URL for Online Installation Video https://www.youtube.com/watch?v=zkcq1U3Hdg8...
  • Page 3 1、 This manual was written to help you understand the proper use and maintenance of the iENYRID line of Electric Scooter. 2、 It is important to understand the functions and features of the new iENYRID before operating it as it will allow you to enjoy it from every ride.
  • Page 4: Table Of Contents

    CONTENT Product & Component Display ······································································· 1~2 Product Parameters ···················································································· 3 Products & Accessories ··············································································· 4 Product Installation ···················································································· 5~6 Product Folding ························································································ 7 Power On & Unlock & Combination Lock···························································· 8 Safe Driving Warning ················································································· 9 Battery & Charging ··················································································· 10~11 Error Code ·····························································································...
  • Page 5: Product & Component Display

    Product & Component Display 14 13 12 01: Instrument 08: Fron motor 15: Rear shock absorber 02: Brake lever 09: Front wheel 16: Tail lights 03: Vertical pole 10: Folding hook 17: Rear brake 04: Folding buckle 11: Plug 18: Rear motor 05: Headlights 12: Side light strip 19: Brake...
  • Page 6 Product & Component Display 01: Rear brake lever 09: Gear 17: Voltage display 02: Horn 10: Mileage 18: Cruise control 03: Headlight switch 11: Left turn signal lamp 19: Real time speed 04: Power on button 12: Gear number 20: Single/double motors 05: Upshift key 13: Brake signal/Fault 21: Right turn signal lamp...
  • Page 7: Product Parameters

    Product Parameters Model iE-ES60 Tire Size 11inch Battery 48V/23Ah Tyre Type Off-road Air tires Single charger: 8-10 hours Power 1200*2 Charging time Dual charger: 4-6 hours Display Screen Color Frame Material Aluminum alloy Max Speed 25-60KM/H Net Weight 39.6KG Range...
  • Page 8: Products & Accessories

    Products & Accessories SERIAL NUMBE ITEM QUANTITY Electric Scooter Charger Instructions Toolkit...
  • Page 9: Product Installation

    Product Installation Remove the scooter from the Lift the scooter's folding Secure the folding latch packaging box stem upright Ensure that the folding buckle is Adjust the handlebar stem to securely locked, which is a Align the screw holes the correct position prerequisite for safe driving...
  • Page 10 Ensure all four screws on Tighten the handlebar stem Assembly completed the handlebar stem are screws firmly tightened...
  • Page 11: Product Folding

    Product Folding Unscrew the folding latch Pull out the Lower the scooter's folding stem Locate the slot corresponding Secure the latch Folding to the latch...
  • Page 12: Power On & Unlock & Combination Lock

    Power On & Unlock & Combination Lock Long press the power button to enter the password input interface , press the power button three times to enter the three zero password , and then twice to unlock it quickly press the power button The unlocking process takes a short time, and it is normal for the screen to turn off if not unlocked within the specified time.
  • Page 13: Safe Driving Warning

    Helmet: Most common and serious injuries from riding are head injuries. This can be prevented by donning a helmet. You must wear a helmet when riding the iENYRID Scooter. The helmet must be warn according to their instruction. MECHANICAL SAFETY Before using the iENYRID Scooter: 1) Always perform a visual inspection of all screws and nuts are tight and in place.
  • Page 14: Battery & Charging

    Battery & Charging BATTER Do not charge indoors. - Do not turn on and operate the scooter while charging. - Keep the battery away from children, pets or direct heat. - Do not expose the battery to high temperature and pressure. - Please use the charger included with the scooter for charging.
  • Page 15 Battery & Charging First Charg It is important to fully charge the battery before your first use of the scooter. Your scooter ’s battery comes with these built-in features: 1. Balanced charging protection: During charging, the battery automatically balances the voltage among the internal cells to protect each cell.
  • Page 16: Error Code

    Error Cod Error Code Fault Diagnostic Step Solution Check whether the motor wires are connected properly or If there is no problem with each circuit, the Phase fault whether the colored wires are connected incorrectly. motor needs to be replaced. Low voltage protection Check if the battery is used up.
  • Page 17: After Sales

    We hope these videos will help you better understand and use our product. If you still have questions or concerns after watching the videos, please feel free to contact our customer service team, and we will be happy to assist you. Thank you again for your purchase and support! Wishing you a pleasant user experience https://www.facebook.com/iENYRID https://www.youtube.com/@iENYRID https://www.ienyrid.com...
  • Page 18: Limited Warranty

    PLEASE ALWAYS KEEP THE BOX FOR ANY POSSIBLE FUTURE AFTER-SALES SHIPMENT...
  • Page 19: Warranty Card

    Battery serial number Name Distributor Contact Note Shenzhen Tianshengle Technology Co., Ltd. Address: Room 502, 5th Floor, Building 1, Liuwei Business Center, No. 5,Longjing Community, Yangmei Community, Bantian Street, Longgang District, Shenzhen, China WhatsApp: +8613612953725 Customer support: support@ienyrid.com Official website: www.ienyrid.com...
