Summary of Contents for Insignia NS-AC10PWH5-C

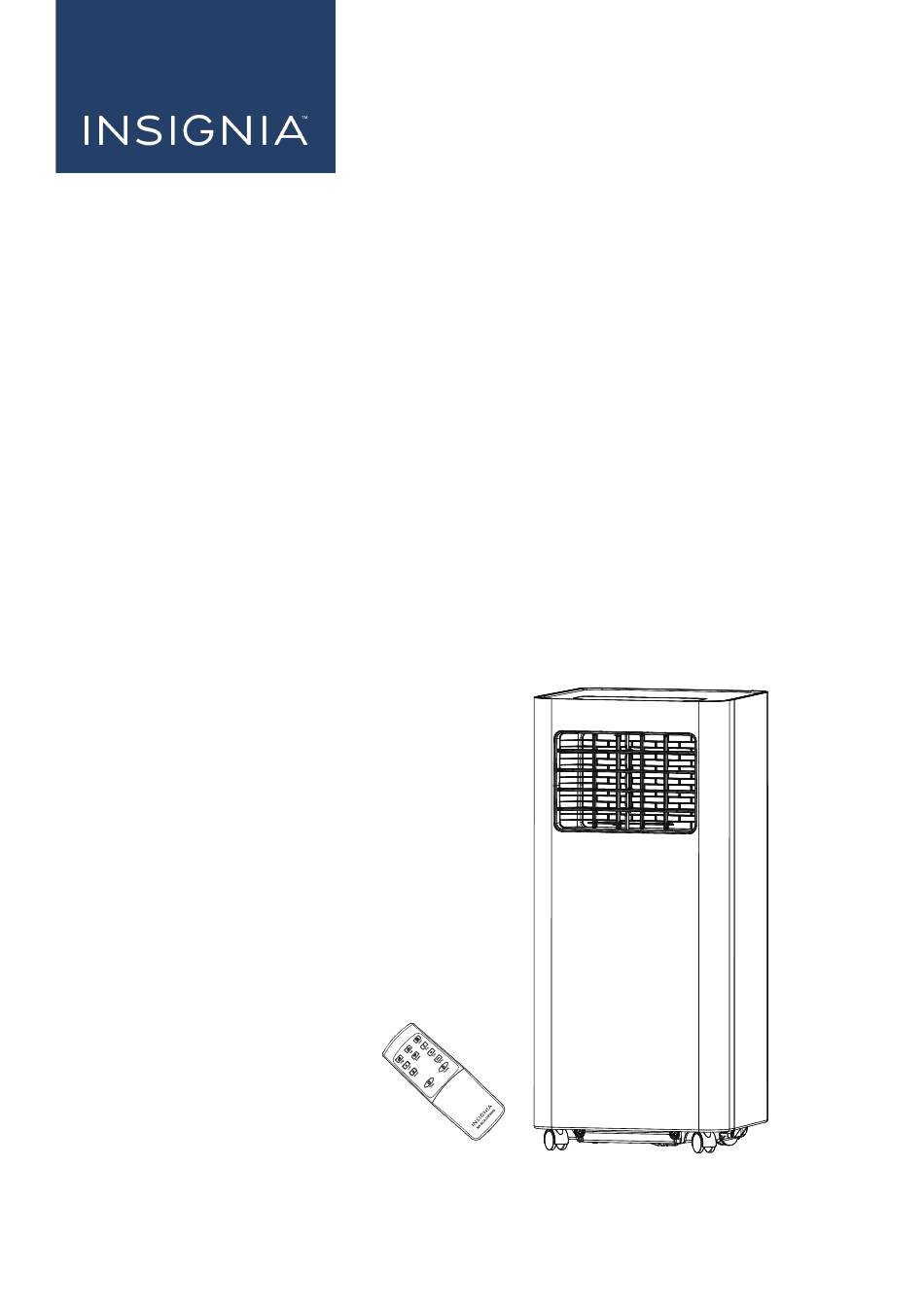

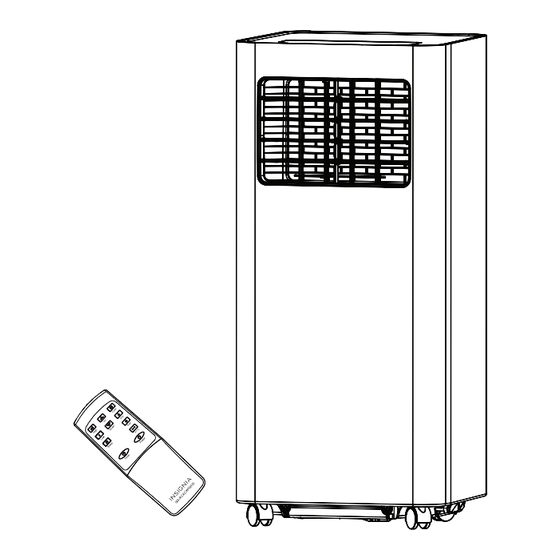

- Page 1 USER GUIDE 3-in-1 Portable Air Conditioner NS-AC10PWH5-C/NS-AC12PWH5-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS . -
Page 3: Introduction
NS-AC10PWH5-C/NS-AC12PWH5-C Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-AC10PWH5-C or NS-AC12PWH5-C represents state of the art design in portable air conditioning, designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE. Your safety and the safety of others are very important. - Page 4 WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: OPERATION • Use this appliance only for its intended purpose. • Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
- Page 5 NS-AC10PWH5-C/NS-AC12PWH5-C REFRIGERANT (FOR R32 ONLY) CAUTION ON FIRE Warnings • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater) •...
- Page 6 2) Work procedure Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapour being present while the work is being performed. 3) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.
- Page 7 NS-AC10PWH5-C/NS-AC12PWH5-C 11 Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
- Page 8 The circuit breaker should be tested periodically by pressing the TEST button then the RESET button. If the TEST button does not cause the circuit breaker to trip, or if the RESET button will not stay engaged, unplug the air conditioner immediately and contact an Insignia technician. Preferred grounding method...
-
Page 9: Features
NS-AC10PWH5-C/NS-AC12PWH5-C Features • 10K - 6,500 BTU DOE/ 10,000 BTU ASHRAE efficiently cools rooms with up to 23.23 sq. m (250 sq. ft.) of living space • 12K - 7,000 BTU DOE/ 12,000 BTU ASHRAE efficiently cools rooms with up to 27.89 sq. m (300 sq. ft.) of living space •... -
Page 10: Main Components
Main components Front Item Description Allows air to enter into your air conditioner. Do not block. Remove Upper air inlet filter and filter case the filter from this case to clean it at least every two weeks. See Cleaning the air filter on page 20. - Page 11 NS-AC10PWH5-C/NS-AC12PWH5-C Item Description Lower air inlet Allows air to enter into your air conditioner. Do not block. Power cord Plug this into a 115V 60Hz AC outlet to power your air conditioner. Control panel Buttons and display Function 1 Timer Sets your air conditioner to turn on or off automatically.
- Page 12 Accessories Item Description Connects your air conditioner to the window installation kit to vent Exhaust hose assembly exhaust air outside. Routes your air conditioner exhaust through a vertical or horizontal window opening and seals your window at the correct height/width. Fits both horizontal and vertical sliding windows.
-
Page 13: Remote Control
NS-AC10PWH5-C/NS-AC12PWH5-C Remote control Button Function High and Low speed settings Raises or lowers the fan speed. Sleep Activates sleep mode. Timer Sets your air conditioner to turn on or off automatically. In cool or fan mode, press to raise (... -
Page 14: Setting Up Your Air Conditioner
Setting up your air conditioner Remove and store packing materials for reuse. Remove any shipping tape before using your air conditioner. Remove tape residue with liquid dish soap and a damp cloth. Do not use sharp tools, alcohol, thinners, or abrasive cleaners to remove adhesive, which could damage the finish. -
Page 15: Installing Your Air Conditioner
NS-AC10PWH5-C/NS-AC12PWH5-C 3 Clip the exhaust hose assembly (exhaust hose connector) into the exhaust outlet from top to bottom. Installing your air conditioner 1 Measure the window size. 2 Install the window sealing plate(s) and vent panel in the window opening, adjusting the length to fit the window opening. - Page 16 68.5 cm (26.96 in.) Length of vent panel and plate 3: 50.8~68.5 cm (20.0~27.0 in.) 87.6 cm (34.48 in.) Length of vent panel and plate 1: 68.5~87.6 cm (27.0~34.5 in.) 106.8 cm (42 in.) Length of vent panel and plates 1 and 2: 87.6~106.8 cm (34.5~42.0 in.) 124.5 cm (49 in.) Length of vent panel and plates 1, 2, and 3: 106.8~124.5 cm (42.0~49.0 in.) 3 Insert the exhaust hose adapter into the vent panel (A), then slide the vent panel until in clicks into place (B).
- Page 17 NS-AC10PWH5-C/NS-AC12PWH5-C 4 Secure the exhaust hose adapter to the vent panel with the type B screw (provided). Type-B screw 5 Install the sealing sponge: A Remove the sealing sponge from the packaging. Sponge can be cut to fit the opening as needed. Extra sponge can be used to fill any remaining gaps (see step 7).
-
Page 18: Using Your Air Conditioner
Install the window security bracket with the type C screw (provided). Note: Check if there is a gap between the window and the sealing plate. If there is a gap, apply additional sponge. Type-C screw Security bracket Using your air conditioner Inserting the batteries in the remote control 1 Press down on the arrow on the back of the remote control, then slide the battery cover from the battery compartment. -
Page 19: Using Your Air Conditioner
NS-AC10PWH5-C/NS-AC12PWH5-C Using your air conditioner You can control your air conditioner by using the control panel on the of the unit or by using the remote control. If using the remote control, always point it at your air conditioner. Button... -
Page 20: Cleaning And Maintaining Your Air Conditioner
Cleaning and maintaining your air conditioner Your air conditioner is designed for year-round use with only minimal cleaning and maintenance. For maximum efficiency, we recommend that you have the cooling coils inspected and cleaned annually by a professional technician. Warning: •... -
Page 21: Emptying The Water Collection Tank
NS-AC10PWH5-C/NS-AC12PWH5-C Emptying the water collection tank When the internal water collection tank is full, “FL” appears on the LED display and your air conditioner turns off until the tank is emptied. For “FL,” the water should be drained out from the lowest drainage outlet. See Manually drain water when the internal tank is full ("FL"... -
Page 22: Restarting Your Air Conditioner After Storage
Set freezing up over. the mode control to High Fan. Contact Insignia Customer Care for the air The area to be cooled is too conditioner capacity required to cool the desired Your air conditioner runs large for your air conditioner. -
Page 23: Intelligent Error Indication
NS-AC10PWH5-C/NS-AC12PWH5-C Problem Possible issue Possible solution The unit may seem rather This is the sound of the compressor starting up and loud for the first two or three is normal. minutes of operation. Your air conditioner is A soft, swishing noise can be... -
Page 24: Specifications
Maximum length: 1500 ± 50 mm For 12k: Noise level during operation Minimum: 57 ± 3dB(A) Maximum: 61 ± 3dB(A) NS-AC10PWH5-C Dimensions (H × W × D) 70.2 × 32.5 × 29.5 cm (27.64 × 12.8 × 11.61 in.) Net weight 21.3 kg (46.97 lbs.) Gross weight 25.5 kg (56.23 lbs.) -
Page 25: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 26 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 23-0417...
