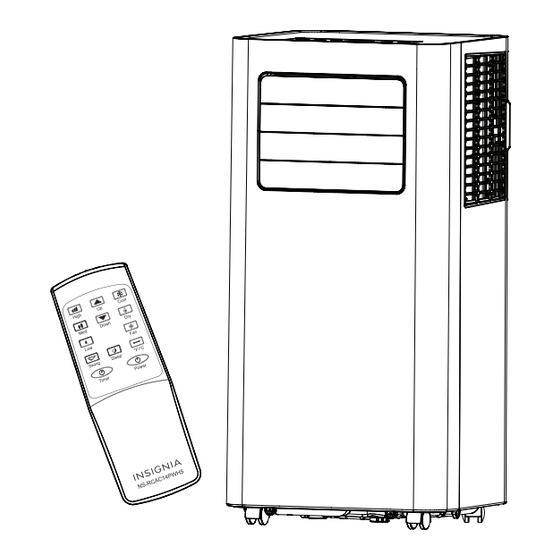

Insignia NS-AC14PWH5-C User Manual

3-in-1 portable air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

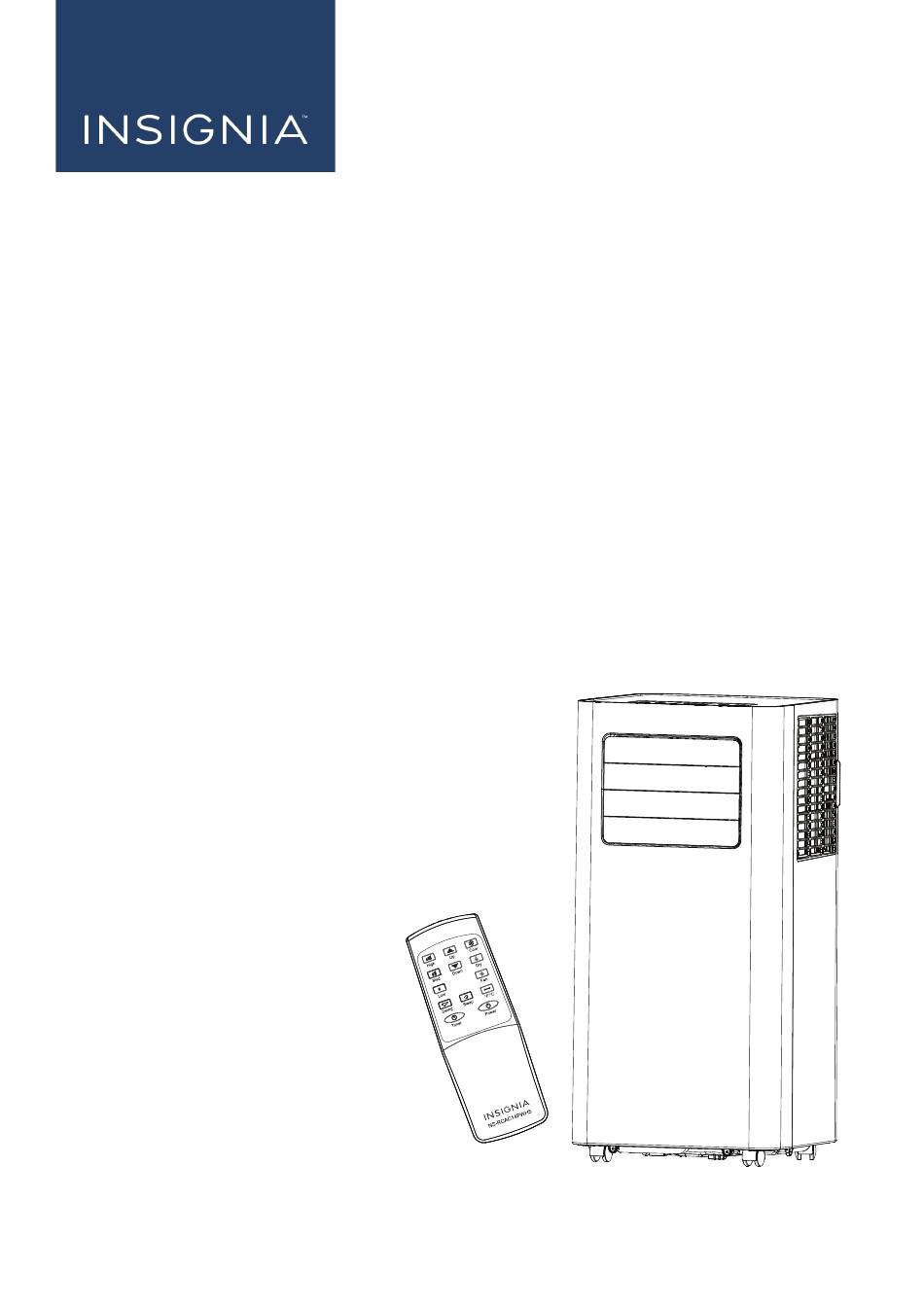

USER GUIDE
3-in-1 Portable
Air Conditioner
NS-AC14PWH5-C
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-AC14PWH5-C and is the answer not in the manual?

Questions and answers

linda
June 4, 2025

I am missing the drain hose, what do I need to replace it size of hose please

0

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-AC14PWH5-C

Summary of Contents for Insignia NS-AC14PWH5-C

  • Page 1 USER GUIDE 3-in-1 Portable Air Conditioner NS-AC14PWH5-C Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents Introduction ..................3 IMPORTANT SAFETY INSTRUCTIONS .

  • Page 3: Introduction

    NS-AC14PWH5-C Portable Air Conditioner Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-AC14PWH5-C represents state of the art design in portable air conditioning, designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE.
  • Page 4 WARNING To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this product, follow basic precautions, including the following: OPERATION • Use this appliance only for its intended purpose. • Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
  • Page 5 NS-AC14PWH5-C REFRIGERANT (FOR R32 ONLY) CAUTION ON FIRE Warnings • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. • The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater) •...
  • Page 6 2) Work procedure Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapour being present while the work is being performed. 3) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided.
  • Page 7 NS-AC14PWH5-C 11 Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
  • Page 8 The circuit breaker should be tested periodically by pressing the TEST button then the RESET button. If the TEST button does not cause the circuit breaker to trip, or if the RESET button will not stay engaged, unplug your air conditioner immediately and contact an Insignia technician. Preferred grounding method...

  • Page 9: Features

    NS-AC14PWH5-C Features • 9,000 BTU DOE/14,000 BTU ASHRAE efficiently cools rooms with up to 37.16 sq. m (400 sq. ft.) of living space • Fits both horizontal and vertical sliding windows. • Horizontal sliding window: height within 50.8 - 124.46 cm (20 - 49 inches) •...

  • Page 10: Main Components

    Main components Front Air outlet and Upper air inlet swing louver Filter and filter case Swiveling casters Back Item Description 1 Handle Provides a convenient grip when moving your air conditioner. 2 Control panel and display Displays air conditioner settings. Press buttons to change settings. 3 Air inlet filter and filter case Allows air to enter your air conditioner.
  • Page 11 NS-AC14PWH5-C Control panel Item Description Timer button Press to set your air conditioner to turn on or off automatically. Press and hold the Timer button and Mode button at the same time 2 Swing function for one second to turn on the automatic louver swing.
  • Page 12 Accessories Item Description Connects your air conditioner to the window installation kit to vent 1 Exhaust hose assembly exhaust air outside. Fits both horizontal and vertical sliding windows. • Horizontal sliding window: height within 50.8 - 124.46 cm (20 - 2 Window seal plate assembly 49 inches) •...

  • Page 13: Remote Control

    NS-AC14PWH5-C Remote control Button Function High, Med, and Press to raise or lower the fan speed. speed settings buttons Swing button Press to turn on the automatic louver swing. Timer button Press to set your air conditioner to turn on or off automatically.

  • Page 14: Setting Up Your Portable Air Conditioner

    Setting up your portable air conditioner Remove and store (optional) packing materials for reuse. Remove any shipping tape before using your air conditioner. Remove tape residue with liquid dish soap and a damp cloth. Do not use sharp tools, alcohol, thinners, or abrasive cleaners to remove adhesive, which could damage the finish.

  • Page 15: Installing Your Air Conditioner

    NS-AC14PWH5-C 3 Clip the exhaust hose assembly (exhaust hose connector) into the exhaust outlet from top to bottom. Installing your air conditioner 1 Measure the window size. 2 Install the window sealing plate(s) and vent panel in the window opening, adjusting the length to fit the window opening.
  • Page 16 68.5 cm (26.96 in.) Length of vent panel and plate 3: 50.8~68.5 cm (20.0~27.0 in.) 87.6 cm (34.48 in.) Length of vent panel and plate 1: 68.5~87.6 cm (27.0~34.5 in.) 106.8 cm (42 in.) Length of vent panel and plates 1 and 2: 87.6~106.8 cm (34.5~42.0 in.) 124.5 cm (49 in.) Length of vent panel and plates 1, 2, and 3: 106.8~124.5 cm (42.0~49.0 in.) Lock...
  • Page 17 NS-AC14PWH5-C 4 Secure the hose adapter to the vent panel with the type B screw (provided). Type B screw 5 Install the sealing sponge: A Remove the sealing sponge from the packaging. The sponge can be cut to fit the opening as needed. Extra sponge material can be used to fill any remaining gaps (see Step 7).
  • Page 18 Install the window sealing plate in the window opening. Note: For optimum performance, make sure that the exhaust hose is not twisted and is free of kinks. For better efficiency, shorten the hose by squeezing its sections together. Caution: The exhaust duct is designed especially for this air conditioner. Replacing or lengthening the duct could result in damage to your unit.

  • Page 19: Using Your Portable Air Conditioner

    NS-AC14PWH5-C Using your portable air conditioner Inserting the batteries in the remote control 1 Press down on the arrow on the back of the remote control, then slide the battery cover from the battery compartment. 2 Insert two AAA batteries (provided) into the battery compartment. Note the proper orientation of the + and – polarity of the batteries.

  • Page 20: Using Your Air Conditioner

    Using your air conditioner You can control your air conditioner by using the control panel on the top of the unit, or by using the remote control. If using the remote control, always point it at your air conditioner. Button Description Press to turn your air conditioner on or off: •...

  • Page 21: Cleaning And Maintaining Your Portable Air Conditioner

    NS-AC14PWH5-C Cleaning and maintaining your portable air conditioner Your air conditioner is designed for year-round use with only minimal cleaning and maintenance. For maximum efficiency, we recommend that you have the cooling coils inspected and cleaned annually by a professional technician.

  • Page 22: Emptying The Water Collection Tank

    Emptying the water collection tank When the internal water collection tank is full, “FL” appears on the LED display and your air conditioner turns off until the tank is emptied. The water should be drained from the lowest drainage outlet. Refer to the following section to manually drain the water.

  • Page 23: Restarting Your Air Conditioner After Storage

    Set freezing up. over. the mode control to Fan and the speed to High. Contact Insignia Customer Care for your air The area to be cooled is too conditioner capacity required to cool the desired My air conditioner runs large for your air conditioner.

  • Page 24: Intelligent Error Indication

    Problem Possible Cause Possible Solution The unit may seem rather This is the sound of the compressor starting up and loud for the first two or three is normal. minutes of operation. My air conditioner is too A soft, swishing noise can be loud.

  • Page 25: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 26 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A. 23-0419...
