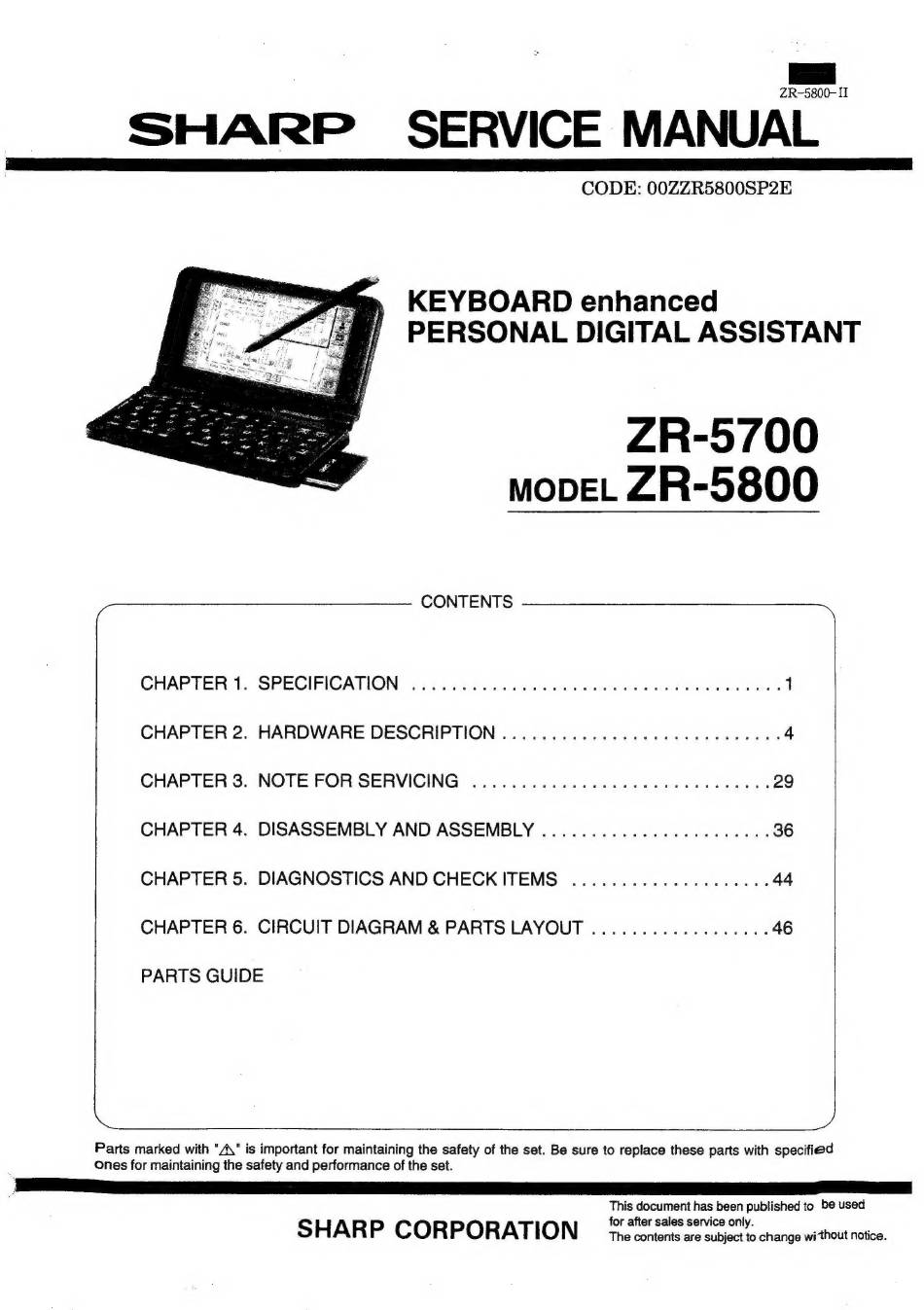

Sharp ZR-5700 Service Manual

ZR-5800- II
SHARP SERVICE MANUAL
CODE: 00ZZR5800SP2E
KEYBOARD enhanced
PERSONAL DIGITAL ASSISTANT
ZR-5700
mMoDEL ZR-5800
CONTENTS ee
CHAPTER 1; SPECIFICATION o4 sci scceacsacsniowerarntabtwewmenwen 1
GHAPTER 2. HARDWARE DESCRIPTION .......0c:eeeveweeeenteweemes 4
IGHAPTER &.. NOTE POR SERVICING ...0.ceyaee ieee ye deude ia meres 29
CHAPTER 4. DISASSEMBLY AND ASSEMBLY ..............-..000005 36
CHAPTER 5. DIAGNOSTICS AND CHECK ITEMS ...........-....0000- 44
CHAPTER 6. CIRCUIT DIAGRAM & PARTS LAYOUT ............-..05. 46
PARTS GUIDE
Parts marked with "/\" is important for maintaining the safety of the set. Be sure to replace these parts with specified
Ones for maintaining the safety and performance of the set.
This document has been published to be used
for aft {i i ly.
S HA R P C O R PORATI O N gn etapa a change without notice.
