STARLINK 04759103-501 Install Manual

Standard pipe adapter
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
| STANDARD PIPE ADAPTER INSTALL GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 04759103-501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STARLINK 04759103-501

Summary of Contents for STARLINK 04759103-501

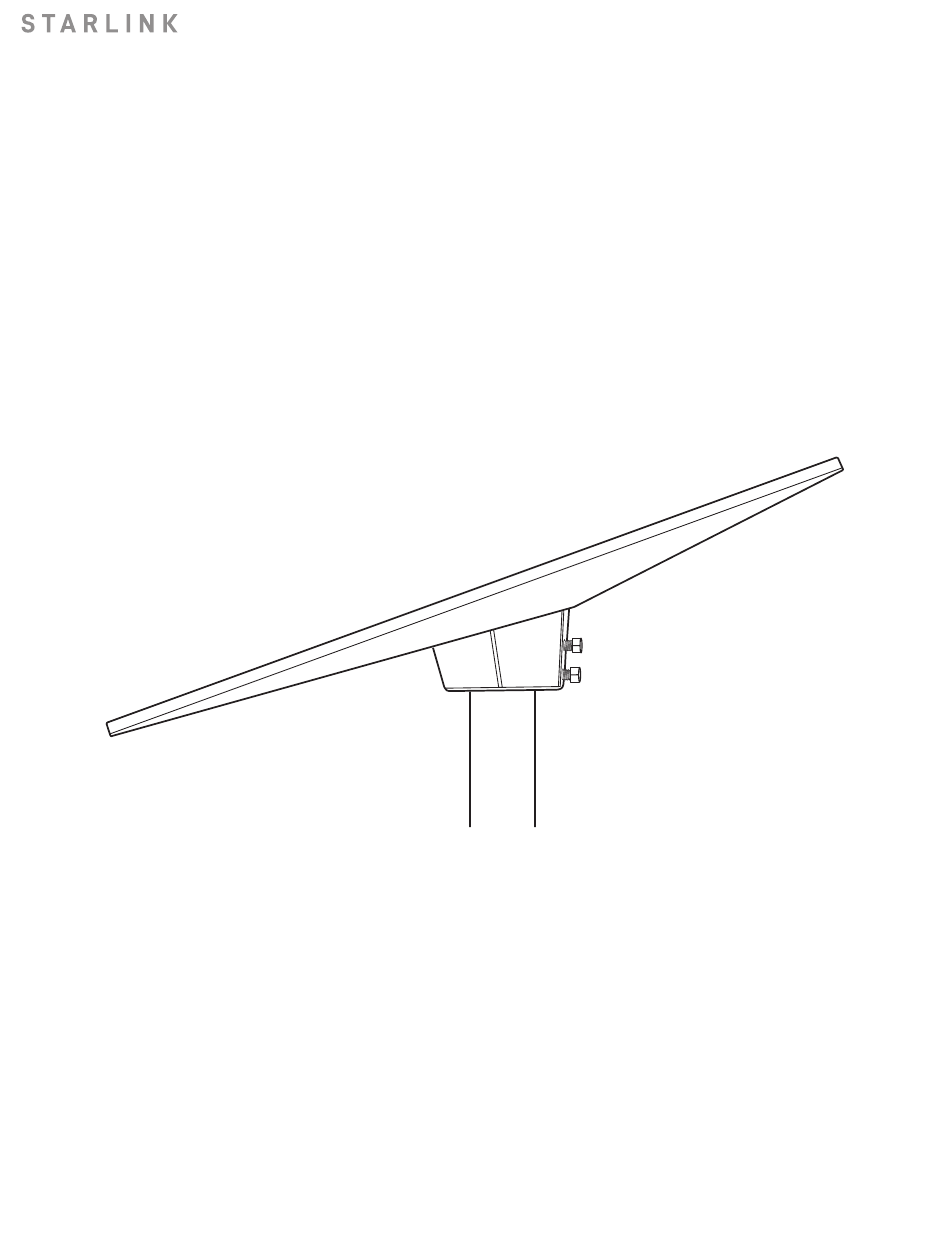

  • Page 1 | STANDARD PIPE ADAPTER INSTALL GUIDE...

  • Page 2: What's In The Box

    STANDARD PIPE ADAPTER KIT What’s in the Box Pipe Adapter Mount Allen Key Cable Routing Clips 558 mm (21.96 in) 213 mm (8.38 in) 31 mm - 63 mm (1.25 in - 2.5 in)
  • Page 3 2 | Find Mounting Location Your Starlink needs a clear view of the sky so it can stay connected with satellites as they move overhead. Objects that obstruct the connection between your Starlink and the satellite, such as a tree branch, pole, or roof, will cause service interruptions. Use the obstruction tool in the App to ensure you have selected a suitable mounting location.
  • Page 4 INSTALL 4 | Route Cable Through Pipe Adapter Route the Starlink cable through the opening in the pipe adapter and out the front end. 5 | Plug in Cable and Install Pipe Adapter Plug the cable into your Starlink. Ensure the plug is fully inserted such that the plug face is flush with the surface.
  • Page 5 Loosen the screws and slide the Pipe Adapter onto your mounting pipe. Temporarily tighten the screws to stabilize Starlink onto pipe. Connect the other end of the Starlink cable to router and plug in router power. 7 | Align Your Starlink An alert on the App will show if you need to rotate Starlink to be properly aligned.
  • Page 6 INSTALL 8 | Lock Alignment Tighten the screws on the Pipe Adapter to lock your Starlink in place. Ensure your Starlink is firmly attached.
