- Page 1 MoCA 2.5 Ethernet Adapter MN2525 / MN2550 v1.5 August, 2020 support@starlink7.com Start Guide...
-
Page 2: Introduc�On
MN2525 / MN2550 MoCA 2.5 Adapter Introduc�on Fast and Reliable Home Network with MoCA 2.5 MoCA 2.5 adapters boost the data speed and performance to reach up to 2.5 Gbps to build high-speed and reliable home mesh network over the exis�ng in-home coaxial network. -
Page 3: Package Content

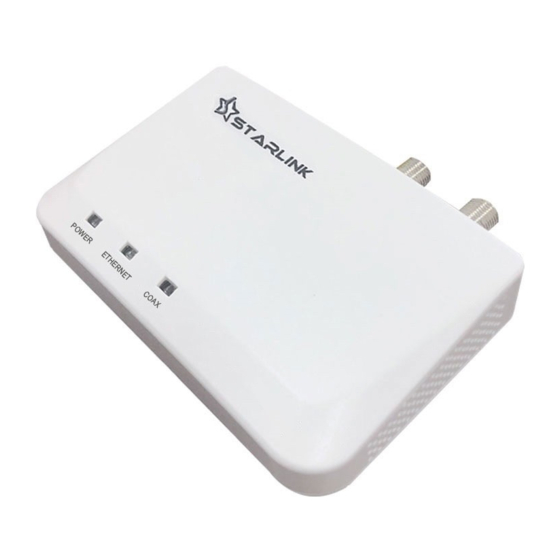

MN2525 MN2550 The MN2525/MN2550 MoCA 2.5 adapter is a high-speed network adapter for extending home network at modern homes to access Internet. The adapter provides an Ethernet connec�on anywhere a coaxial outlet is available. The output of the adapter also includes a TV or set-top box port to deliver video content to allow exis�ng TV connec�on at coaxial outlet. - Page 4 ② Connect the end of the coaxial cable removed in step 1 into the coaxial port labeled CATV (MN2525) or TV (MN2550) on the side of the Adapter. ③ Connect one end of another coaxial cable into the coaxial port labeled COM (MN2525) or MoCA (MN2550) on the side of the Adapter.
- Page 5 MN2525 / MN2550 MoCA 2.5 Adapter The Internet and op�onal TV signals are now being delivered across the coaxial network. MN2525 Make sure the POWER, ETHERNET and COAX LED glows or blinks green. MN2550 Make sure the Power, MoCA and System LED glows green. LAN1 / LAN2 Ethernet...
- Page 6 ② Connect the end of the coaxial cable removed in step 1 into the coaxial port labeled CATV (MN2525) or TV (MN2550) on the side of the Adapter. ③ Connect one end of another coaxial cable into the coaxial port labeled COM (MN2525) or MoCA (MN2550) on the side of the Adapter.
- Page 7 Reset to Factory Default Se�ngs ① Power on the Adapter and wait for 10 seconds. ② Press and hold the RESET bu�on on the side (MN2525) or at the bo�om (MN2550) of the Adapter for more than 10 seconds and release it.
- Page 8 Management Web Based Configura�on via 1000Base-T Connec�on Ethernet Ethernet IEEE802.3, IEEE802.3az MN2525 1000 Base-T MDI/MDIX, 2 x 75Ω F Interface MN2550 2 x 1000 Base-T MDI/MDIX, 2 x 75Ω F Radio Frequency / TV Frequency Range 5 MHz to 1002 MHz Transmit Return Loss ≥...
- Page 9 Power (green), System (green), MoCA (green) MN2550 LAN1/LAN2 Link (green), Ac�vity (amber) MN2525 DC Input, 1000Base-T RJ 45, COM (MoCA) 75Ω F, CATV 75Ω F, RESET Connectors MN2550 DC Input, 2 x 1000Base-T RJ 45, MoCA 75Ω F, TV 75Ω F, RESET...
- Page 10 MN2525 / MN2550 MoCA 2.5 Adapter Notes Warranty This device has one-year Limited Hardware Warranty and 120-day free so�ware updates a�er purchase. This Limited Warranty Statement gives the customer specific legal rights. The customer may also have other rights which vary from State to State in the United States, from province to province in Canada, and from country to country elsewhere in the world.
-
Page 11: Trouble Shoo�Ng
MN2525 / MN2550 MoCA 2.5 Adapter Trouble Shoo�ng The COAX/MoCA LED is not lit or unstable a�er installing 2 Adapters Prpblem: No coax network has been established. • Confirm that the COM or MoCA port on the Adapter is connected to the coax outlet on the wall •...
