STARLINK MN252 Manual

■
Boost the speed and performance of home networking to reach up to 2.5
Gbps Ethernet with the new MoCA 2.5 technology
■
Configurable high-frequency modulation (1.1GHz to 1.6GHz) allows Cable TV
(DOCSIS 3.0/3.1), Satellite TV and other TV signal overlay without interference
■
Turn any coaxial outlet to high-speed Ethernet / IP connection to deliver
high-definition video streaming, and high-speed Internet inside home
■
Supplement and extend the existing Wi-Fi network with high-speed wired
connection over in-home coaxial drops
■
Enable tablets, smart phones, gaming APPs/consoles and 4K/8K HDTV to
access content simultaneously
■
Work over the existing home coaxial wirings without re-wiring of Ethernet
cables
■
Plug-and-play installation
■
Enhance Wi-Fi network over coaxial wirings to reach wired speed and
coverage reliability to offload Wi-Fi gateway/router for content transfer
between smart devices
■
Support IPv4 / IPv6, TR069, DHCP and console configuration
■
Up to 16 MoCA 2.5 Adapters can be connected to build meshed Home
Network over coaxial cabling in house

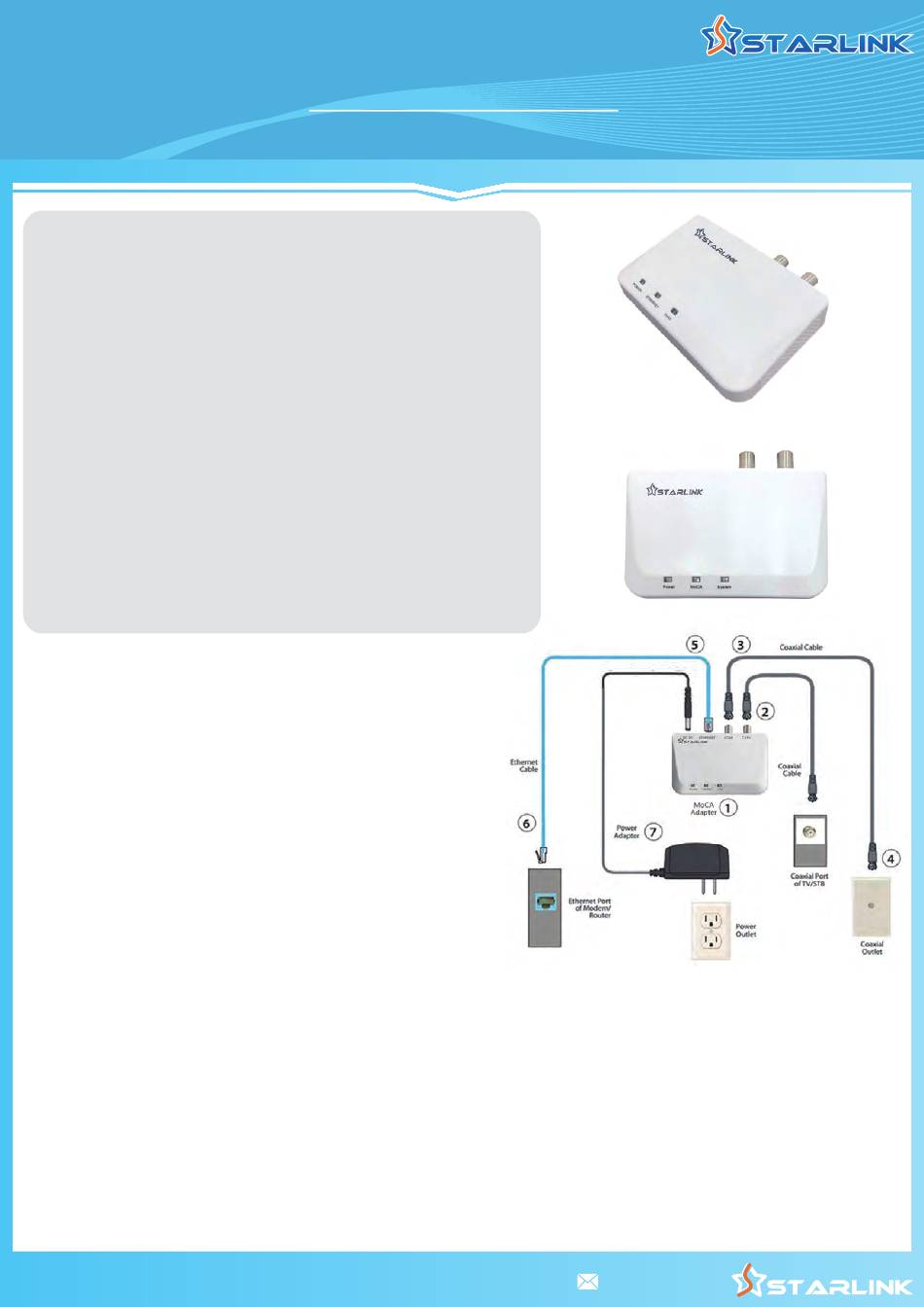

Connecting the First Adapter

① Locate the coaxial outlet in home desired to place the Adapter. If Web browsing is
needed, locate the coaxial outlet nears the home modem or router provided by Internet
Service Provider.
Unplug the end of the coaxial cable connected to the TV set or set-top box from its
coaxial wall outlet. If no TV set or set-top box is plugged into this coaxial outlet,
skip to step 3.
② Connect the end of the coaxial cable removed in step 1 into the coaxial port
labeled CATV (MN2525) or TV (MN2550) on the side of the Adapter.
③ Connect one end of another coaxial cable into the coaxial port labeled
COM (MN2525) or MoCA (MN2550) on the side of the Adapter.
④ Connect the other end of the coaxial cable installed in step 3 to the wall outlet left
unconnected in step 1.
⑤ Connect one end of an Ethernet cable into the ETHERNET (MN2525) or
LAN1 (MN2550) port on the side of the Adapter.
⑥ Connect the other end of the Ethernet cable into the Ethernet port of home
modem or router if Web browsing is needed. Or connect the other end of the
Ethernet cable into the Ethernet port of the device to connect to Internet.
⑦ Plug in the provided power adapter into the power port on the side of the Adapter.
Plug the other end of the power adapter into an electrical outlet or power source.

Connecting the Adapter without TV Signal (Ethernet Only)

① Locate the coaxial outlet in home desired to place the Adapter.
②
Connect one end of an Ethernet cable into the ETHERNET (MN2525) or
LAN1 (MN2550) port on the side of the Adapter.
③ Connect the other end of the Ethernet cable into the Ethernet port of a computer
or a Ethernet switch.
④
Connect one end of another coaxial cable into the coaxial port labeled
COM (MN2525) or MoCA (MN2550) on the side of the Adapter.
⑤ Connect the other end of the coaxial cable installed in step 4 to the wall outlet.
⑥ Repeat step 1 to step 5 at the other coaxial outlet in home.
⑦ Two computers or Ethernet switches are now connected in private local area
network (LAN) to exchange or transfer data via the Adapters.
Copyright © 2018 StarLink LLC. All Rights Reserved.
Specifications are subject to change without notice. Please contact your sales representative for further information.
MN2525 / MN2550
MoCA 2.5 Network Adapter with TV Extension
MN2525 MoCA 2.5 Network Adapter
MN2550 MoCA 2.5 Network Adapter
The Internet and optional TV signals are now being delivered across
the coaxial network.

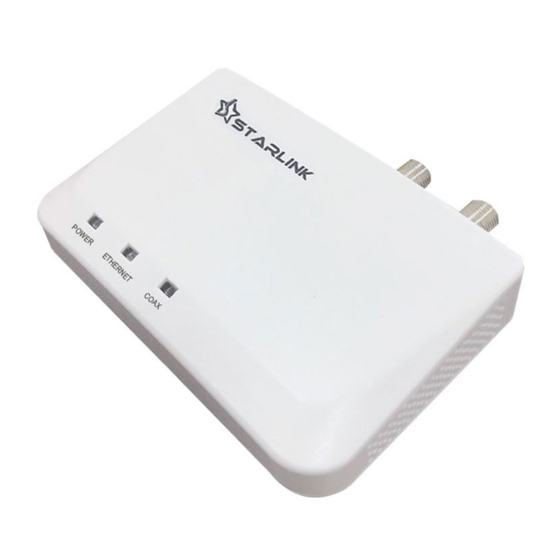

MN2525 Make sure the POWER, ETHERNET and COAX LED
glows or blinks green.
MN2550 Make sure the Power, MoCA and System LED glows green.
LAN1 / LAN2 Ethernet port LED glows green and/or
blinks amber.

MN2525 / MN2550 Adapter Web Management (Optional)

① Connect the ETHERNET (MN2525) or LAN1 / LAN2 (MN2550)
port of the Adapter and the Ethernet port of a computer with an
Ethernet cable. Power on the Adapter.
② Configure the IP address of the computer to be 192.168.144.100.
③ Launch a Web browser on computer and type
http://192.168.144.200 to login with
user name: admin, password: maxlinear
④ On the Web management page of the Adapter, current
configurations and operational status, such as frequency range,
transmission rate, IP address and other Adapter information can
be changed and reviewed.
