NSC Sicherheitstechnik RESONANCE PRO WM 6-165 STR EN54 Quick Start Manual

MOUNTING INSTRUCTIONS
▪
Attach the back panel of the speaker to the wall. Use the
enclosed screws.
▪
Feed the connection cable through the cut-out in the rear
wall of the speaker or use the inputs on the side or top/
bottom by knocking out the pre-punched holes and fitting
them with the enclosed rubber grommets.
▪ Connect the power cable to the ceramic terminal (COM
and 100V). If necessary, select a different power tapping
on the transformer. Please do not pull on the cable, but
carefully pull off the cable lug with pliers.
▪
Connect the red/black plug-in cable of the transformer
to the loudspeaker.
▪
Place the loudspeaker housing on the wall-mounted rear
wall of the loudspeaker.
▪
Use the 3 enclosed screws incl. spring washers to fasten
the loudspeaker.
NSC RESONANCE PRO SPEAKER RANGE
EN 54-24 PAVA LOUDSPEAKER

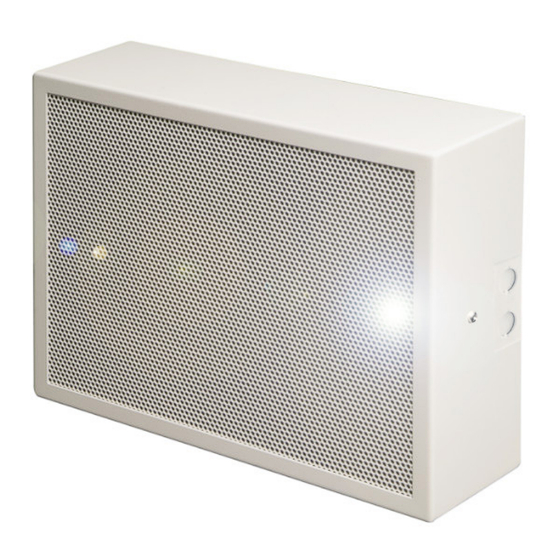

WM 6-165 STR EN54
ARTICLE-NO.: S61165-05
Vandal-proof wall mounted speaker; For voice
announcements and background music; All-metal
construction; LED strobe flashlight; EN 54-24; 6W; IP21
PRODUCT DESCRIPTION
This speaker is the best choice for sensitive installations like
prisons or industrial areas where plastic and wooden mate-
rials are not an option.
The 6W powered speaker is equipped with a 165mm full-ran-
ge loudspeaker chassis and a 100V transformer with 3 power
adjustments. In addition, the loudspeaker has a LED strobe
flashlight that, in a new version with 14 candela, delivers al-
most 3 times brightness.
This very high-performance white LED provides 1.400 lux at
a distance of 100mm and a flashing frequency of 75 flashes
per minute. With 18 lumens of light and a wide beam angle
(75°), the strobe flashlight provides bright and uniform area
illumination. Operating voltage of the flashing light 24 VDC,
current consumption max.: 9 mA.
The extremely stable metal housing in RAL 9010 with corro-
sion-resistant powder coating, offers tremendous resilience
paired with an unobtrusive design.
A 2-pin ceramic block and a thermal fuse provide additional
reliability. The speaker chassis is impregnated against wet-
ness.
The speaker is secured with protection class IP 21C against
the risks of environmental influences. It is also compliant with
the British Standard BS 5839, Part 8.
Quick and easy screw mounting.
Technical data may be changed or updated without prior notice. Status 09/2023
