MOUNTING INSTRUCTIONS
▪
Guide the connection cables through the cut-out in the
rear panel of the speaker.
▪
Attach the back panel of the speaker to the wall. Use the
enclosed screws.
▪
Connect the cable to the 100V transformer.
▪ Place the loudspeaker housing on one side of the rear wall
so that the clamping spring engages in the hole. Press
the second clamping spring inwards with a screwdriver
and at the same time press the speaker against the wall
so that the second clamping spring engages
▪ Use the enclosed plastic caps to cover the side holes.
NSC RESONANCE PRO SPEAKER RANGE
EN 54-24 PAVA LOUDSPEAKER
WM 6-165 EN54
ARTICLE-NO.: S61165-00

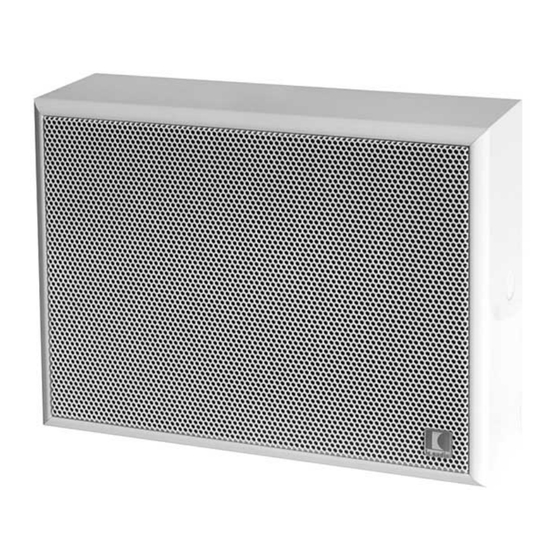

Wall mounted speaker; for voice announcements
and background music; Impact-resistant housing;
EN 54-24; 6W; IP54
PRODUCT DESCRIPTION
The 6W powered speaker is equipped with a 165mm full-ran-
ge loudspeaker chassis and a 100V transformer with 3 power
adjustments. The high-density, shock-resistant MDF wood
housing in white provides a low resonance sound. A sturdy
front grille made of steel guarantees enduring stability. For
additional reliability, a 2-pin ceramic block, and a thermal fuse
are provided and the speaker chassis is impregnated against
wetness.
The speaker is also secured with the high protection class IP
54 against the security risks of environmental influences. It
is also compliant with the British Standard BS 5839, Part 8.
The proven spring snap fastener on the rear wall ensures
quick wall mounting.
Technical data may be changed or updated without prior notice. Status 09/2023
