MOUNTING INSTRUCTIONS
▪
Mounting on the wall is done using the three parts of the
enclosed swivel bracket. One for the wall (A), one for the
speaker (B) and one connecting piece (C).
▪
Screw the mounting part (A) of the swivel bracket to the
wall.
▪
Screw the second mounting part (B) to the speaker.
▪
Then join the two parts together via the connecting part
and fasten with the enclosed screws (C).
▪
Connect the loudspeaker cable to the screw terminal.
To do this, remove the strain relief from the enclosed
touch guard.
▪
Place the terminal in the touch guard and lead the cable
through the cable passage.
▪
Screw the strain relief back on. Close the touch guard.
▪
Plug the clamp onto the mating plug on the back of the
speaker.

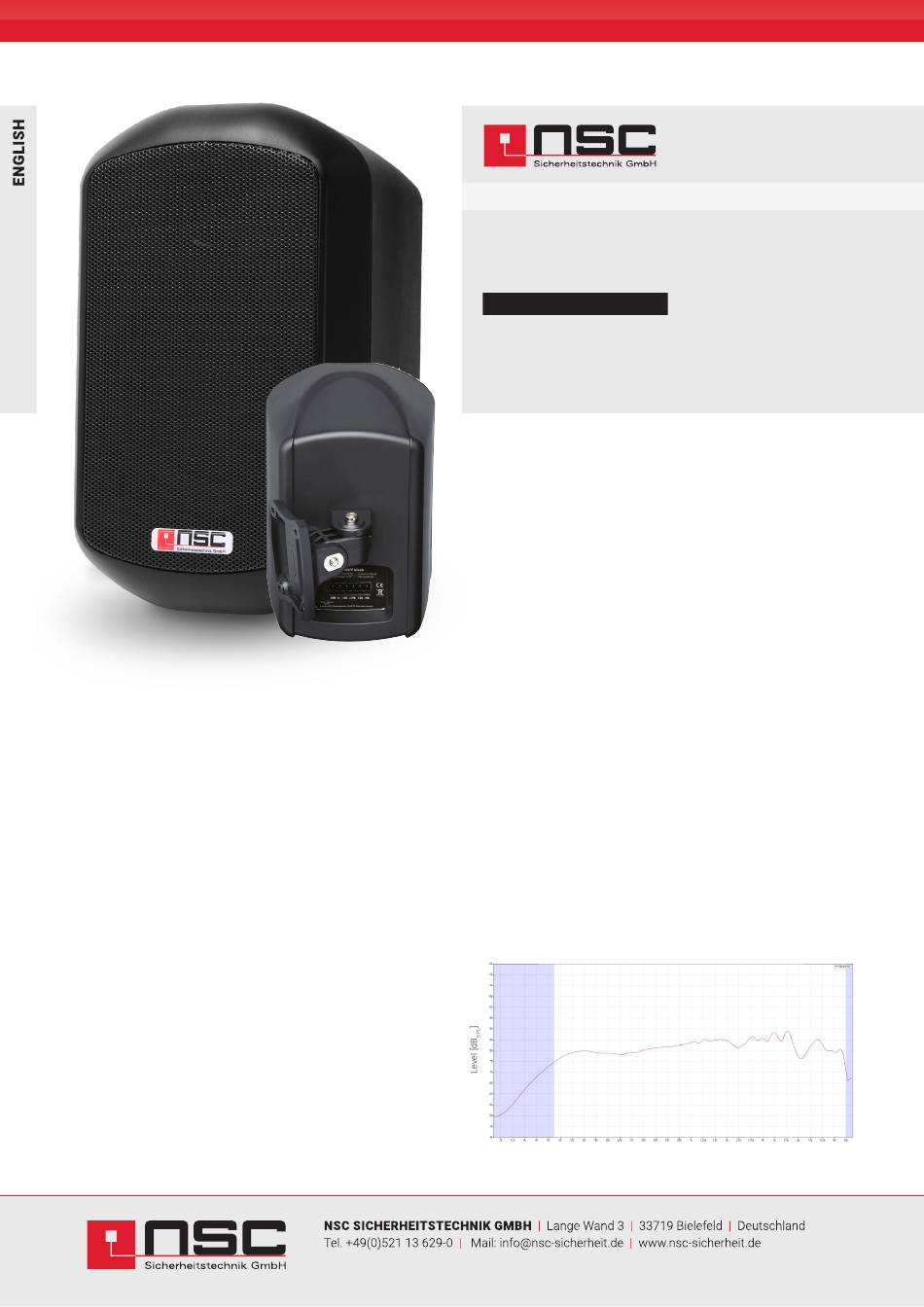

NSC RESONANCE PRO SPEAKER RANGE
EN 54-24 PAVA LOUDSPEAKER
MM 30-130 B EN54
ARTICLE-NO.: S65030-00
2-way monitor speaker; For voice announcements
and music with excellent sound quality;
EN 54-24; 30W; IP66;
PRODUCT DESCRIPTION
2-Way monitor speaker for voice alarm applications, certified
EN 54-24, suitable for voice announcements and music with
excellent sound quality indoor.
The compact monitor speaker impresses with its sophistica-
ted design and its powerful sound. Perfectly suitable for in-
stallations where high sound quality is needed.
The 30W powered speaker is equipped with a high-quali-
ty 2-way system and a 100V transformer with 3 power ad-
justments. Low-impedance operation with 8 ohms is possi-
ble. The impact-resistant, UV-resistant ABS plastic housing
in black assures enduring stability. For additional reliability, a
wetness impregnation of the speaker is provided.
The speaker is also secured with protection class IP 65
against the risks of environmental influences. A comfortable
connection of the speaker is made possible by a stable screw
terminal with contact protection. Quick and easy mounting
with wall mounting bracket.
F-RESPONSE
Technical data may be changed or updated without prior notice. Status 09/2023
Sensitivity (2.83 Vrms, 1M)
Frequency [kHz]
Advertisement
Related Manuals for NSC Sicherheitstechnik RESONANCE PRO Series
Summary of Contents for NSC Sicherheitstechnik RESONANCE PRO Series
- Page 1 NSC RESONANCE PRO SPEAKER RANGE EN 54-24 PAVA LOUDSPEAKER MM 30-130 B EN54 ARTICLE-NO.: S65030-00 2-way monitor speaker; For voice announcements and music with excellent sound quality; EN 54-24; 30W; IP66; PRODUCT DESCRIPTION 2-Way monitor speaker for voice alarm applications, certified EN 54-24, suitable for voice announcements and music with excellent sound quality indoor. The compact monitor speaker impresses with its sophistica- ted design and its powerful sound. Perfectly suitable for in- stallations where high sound quality is needed. The 30W powered speaker is equipped with a high-quali- ty 2-way system and a 100V transformer with 3 power ad- justments. Low-impedance operation with 8 ohms is possi- ble. The impact-resistant, UV-resistant ABS plastic housing...
- Page 2 TECHNICAL DATA Power 30/15/7,5/3,75 (8ohm) W Pmax @20kHz (100V) 16,81 W Frequency Range 60 - 24.000 Hz Frequency Response 50 - 25.000 Hz SPL 1W/1m, peak 87,4 dB EN54-24:2008 / 1438-CPR-xxxx SPL 1W/4m, peak 75,4 dB Loudspeakers for voice alarm systems SPL Pmax/4m, peak 90,1 dB in fire alarm systems for buildings SPL IEC268-5, 1W/1m 82,4 dB Order-No.: S65030-00 SPL EN54-24, Pmax/4m 86,0 dB TECHNICAL DRAWING Sensitivity EN54-24, 1W/1m 82,4 dB Sensitivity EN54-24, 1W/4m 70,4 dB Dispersion -6dB, 500Hz 360° (h); 360° (v) Dispersion -6dB, 1KHz 200° (h); 160° (v) Dispersion -6dB, 2KHz 130° (h); 100° (v) Dispersion -6dB, 4KHz 120° (h); 40° (v) Type A/B IP Rating IP65 Connector 6-pin screw terminal...
- Page 3 NSC RESONANCE PRO SPEAKER RANGE EN 54-24 PAVA LAUTSPRECHER MM 30-130 B EN54 ARTIKEL-NR.: S65030-00 2-Wege-Monitorbox; Lautsprecher für Sprachdurchsagen und Musik mit hervorragender Klangqualität; EN 54-24; 30W; IP65 PRODUKTBESCHREIBUNG 2-Wege-Monitorbox für Sprachalarmierung, zertifiziert ge- mäß EN 54-24, geeignet für Sprachdurchsagen und Musik mit sehr guter Klangqualität in Innenbereichen. Die kompakte Monitorbox besticht durch das einzigartige Design und hervorragend abgestimmte Lautsprecher- Komponenten. Dank moderner 2-Wege-Technik, besonders für Installationen mit anspruchsvoller Klangqualität geeignet.
- Page 4 TECHNISCHE DATEN Nennbelastbarkeit 30/15/7,5/3,75 (8ohm) W Pmax @20kHz (100V) 16,81 W Übertragungsbereich 60 - 24.000 Hz Frequenzgang 50 - 25.000 Hz Schalldruckpegel 1W/1m, peak 87,4 dB EN54-24:2008 / 1438-CPR-xxxx Schalldruckpegel 1W/4m, peak 75,4 dB Lautsprecher für Sprachalarmierungssysteme Schalldruckpegel Pmax/4m, peak 90,1 dB in Brandmeldeanlagen für Gebäude Schalldruckpegel IEC268-5, 1W/1m 82,4 dB Artikel-Nr.: S65030-00 Schalldruckpegel EN54-24, Pmax/4m 86,0 dB TECHNISCHE ZEICHNUNG Empfindlichkeit EN54-24, 1W/1m 82,4 dB Empfindlichkeit EN 54-24, 1W/4m 70,4 dB Öffnungswinkel -6dB, 500Hz 360° (h); 360° (v) Öffnungswinkel -6dB, 1KHz 200° (h); 160° (v) Öffnungswinkel -6dB, 2KHz 130° (h); 100° (v) Öffnungswinkel -6dB, 4KHz 120° (h); 40° (v) Typ A/B IP Schutzklasse IP65 Anschluss 6-polige Schraubklemme...
