iTechworld PS3600 PRO User Manual

Portable power station
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

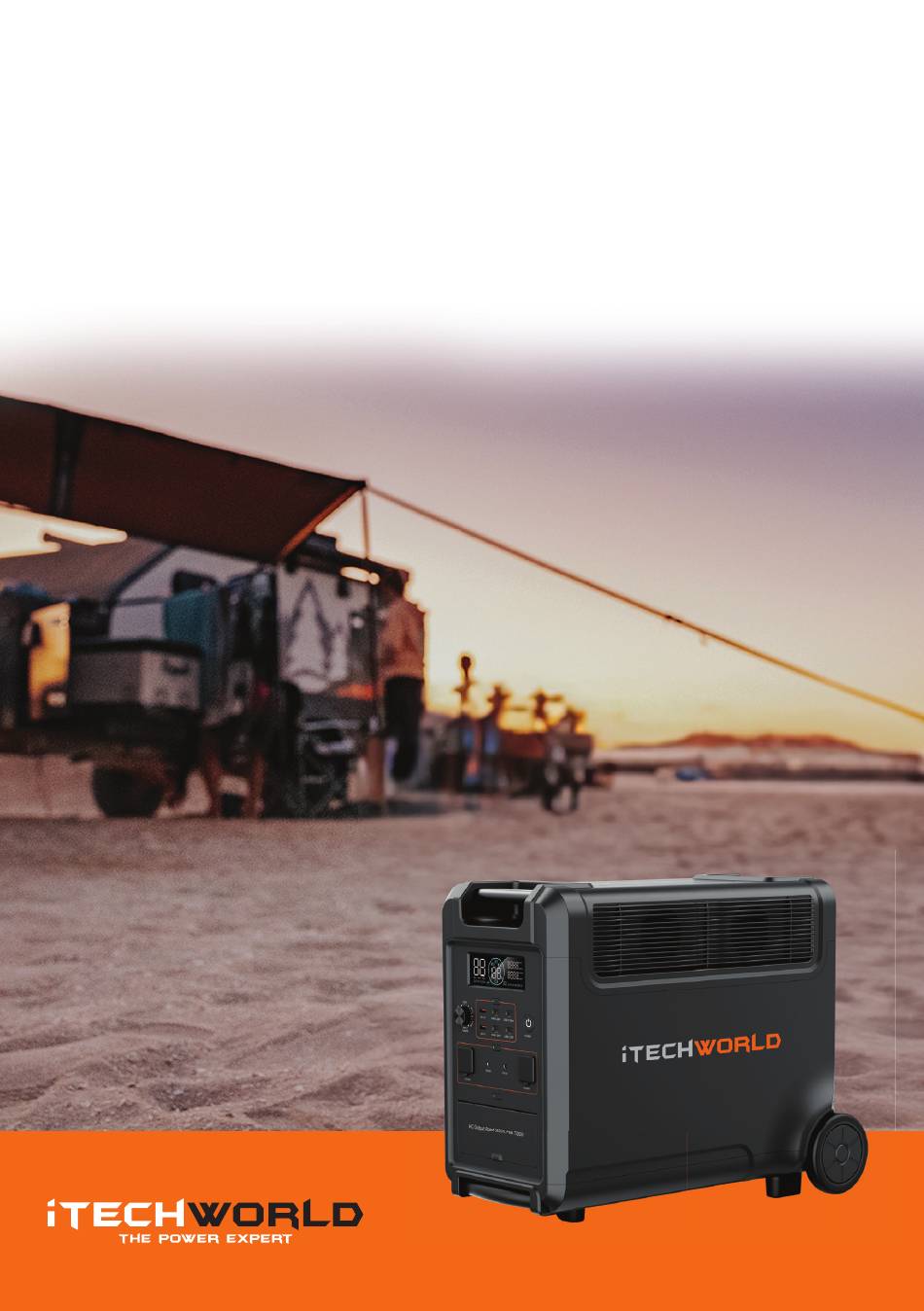

USER GUIDE
PS3600 PRO
PORTABLE POWER STATION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS3600 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for iTechworld PS3600 PRO

Summary of Contents for iTechworld PS3600 PRO

  • Page 1 USER GUIDE PS3600 PRO PORTABLE POWER STATION...

  • Page 2: Table Of Contents

    CONTENTS Product Overview Button Functions LCD Features Fault Resolution UPS Mode UPS Connections EB3840 Expansion Battery Connection Solar Panel Charging AC 240V/Wall Plug Charging Car/Vehicle Charging General Specifications Battery Specifications Safety Precautions Contact Us Back page...

  • Page 3: Product Overview

    PRODUCT OVERVIEW MAIN POWER CONTROL AIR INTAKE/OUTLET USB CONTROL AC 240V OUTPUT BUTTON LIGHT CONTROL XT-90 INPUT PORT DC CONTROL AC 240V INPUT PORT LCD DISPLAY OVERLOAD PROTECTION INPUT POWER ADJUSTMENT PARALLEL PORT...

  • Page 4: Button Functions

    BUTTON FUNCTIONS POWER CONTROL BUTTON: This is the master power button, a long press to turn on and a long press to turn off the unit (hold the button until the screen turns on/off). When not in use, please turn the unit off. USB CONTROL BUTTON: Make sure the power station is on before pressing the USB control button.
  • Page 5 INPUT POWER DIAL: When the PS3600 PRO is connected to the AC mains for charging, the power is automatically adjusted based on the actual input voltage. Turning the dial clockwise increases the input power, while turning it anti-clockwise decreases the input power.
  • Page 6 Use the included wall socket to get 2200W fast charging, which can fully charge the PS3600 PRO from 0 to 100% in 2 hours. The PS3600 PRO should be charged directly by the wall socket, please do not use extension cords.

  • Page 7: Lcd Features

    LCD FEATURES: REMAINING DISCHARGE TIME BATTERY LEVEL INDICATOR EXPANSION BATTERY STATUS BATTERY PROGRESS BAR PARALLEL OPERATION STATUS AC OUTPUT STATUS TOTAL INPUT POWER DC OUTPUT STATUS AC CHARGING STATUS USB OUTPUT STATUS XT90 INPUT STATUS USB-C OUTPUT STATUS HIGH/LOW TEMPERATURE XT60 OUTPUT STATUS FAN STATUS CIGARETTE LIGHTER OUTPUT STATUS...

  • Page 8: Fault Resolution

    FAULT RESOLUTION Status Explanation Resolution 1 - Begin by removing the output device. 2 - Next, check whether the overload protector is activated. If it’ s activated, follow these sub- The output exceeds steps: press the overload protection button, the standard and it’ s after that, press the AC output button.

  • Page 9: Ups Mode

    UPS MODE The PS3600 PRO has a bypass function, which means power will not pass through the battery; it will be taken directly from the AC output. In this mode, the power source is the power grid, when there is an emergency power outage, the power source will switch to the battery within 1Oms and protect the connected appliance.

  • Page 10: Eb3840 Expansion Battery Connection

    After successful parallel connection, the PS3600 PRO can commence charging or discharging. Keep in mind, the PS3600 PRO will charge at a slower rate when it' s almost full and will release power faster when used. If there' s no incoming charge, the unit with a higher state of charge will charge the unit with a lower state of charge.

  • Page 11: Solar Panel Charging

    To ensure proper operation, please verify that there is no regulator in the line. You will need to input unregulated solar power into the PS3600 PRO as it already contains a built-in regulator. THE AREA OF CHARGING...

  • Page 12: Ac 240V/Wall Plug Charging

    AC CHARGER CHARGING Use the AC charger provided to charge this unit. It will only require 2 hours to fully charge the PS3600 PRO. PS3600 PRO CAR/VEHICLE CHARGING it’ s important to use the car charger that was provided with the unit for charging.

  • Page 13: General Specifications

    GENERAL SPECIFICATIONS Model name PS3600 PRO Dimensions 550*321*464mm Weight 42Kg Capacity 3840Wh Max parallel capacity 11,520Wh XT90 Input 12-160V 2000W max AC output 50/60Hz (frequency switch available), rated at 3600W Pure Sine Wave. Built in overload and short circuit protection.

  • Page 14: Safety Precautions

    SAFETY PRECAUTIONS For safe operation and optimal performance, the PS3600 PRO Portable Power Station must be operated correctly. Please carefully read, under stand, and follow all instructions and guidelines in this user guide. Failure to follow these instructions may result in damage to the unit, property, death, or serious injury.
  • Page 15 WARNING: Do not drop the power station. WARNING: When not using the power station, turn off the power and unplug the power cord. WARNING: Do not use the power station and its accessories to connect equipment if there is a defect. DANGER: Never smoke or allow a spark or flame in the vicinity of the power station.

  • Page 16: Contact Us

    When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger and better benefi ts to all our customers Australia-wide.
