ROOMS TO GO KIDS SOUTH BEND 275-937 Assembly Instructions Manual

ROOMS TO GO KIDS SOUTH BEND 275-937 Assembly Instructions Manual

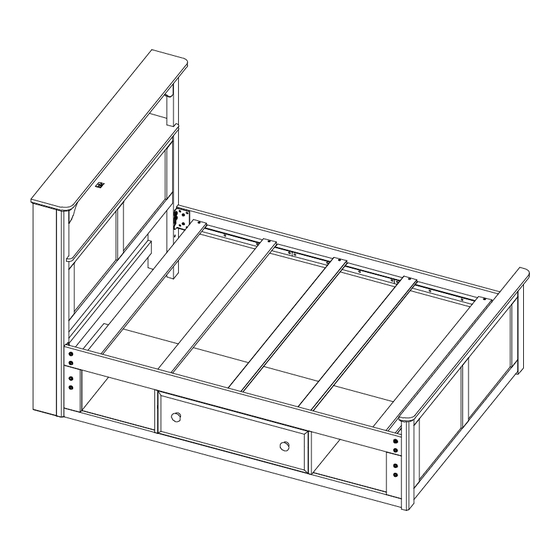

Twin/ full bookcase bed / w/ 1/2 storage side rails

Advertisement

Quick Links

OPTION 1:
TWIN/FULL BOOKCASE BED
PART LIST IN THE BOX OF HEADBOARD
NO
.
DESCRIPTION
Headboard
A
PART LIST IN THE BOX OF FOOTBOARD + SLATS
NO
.
ITEM DESCRIPTION
B
Footboard
Slat
C
PART LIST IN THE BOX OF 2 PC SIDE RAILS
NO
.
ITEM DESCRIPTION
Twin/Full 2 PC Side Rails
D
PART LIST IN THE BOX OF 1 PC SIDE RAIL
NO
.
ITEM DESCRIPTION
Twin/Full 1 PC Side Rail
E
PART LIST IN THE BOX OF STORAGE SIDE RAIL
NO
.
ITEM DESCRIPTION
Storage Side Rail
F
PLEASE CONTACT YOUR RETAIL STORE OR WWW.ROOMSTOGO.COM WITH SERVICE OR PARTS
This product is manufactured by INRM for
Version 1 - Oct 6, 2023
SOUTH BEND
TWIN/ FULL BOOKCASE BED
OPTION 2:
TWIN/FULL BOOKCASE BED
w/ 1 STORAGE SIDE RAIL
Q'TY
1PC
Q'TY
1PC
5PCS
Q'TY
2PCS
Q'TY
1PC
Q'TY
1PC
DO NOT USE SUBSTITUTE PARTS.
REPLACEMENT REQUEST
TWIN/FULL BOOKCASE BED
HARDWARE LIST FOR HEADBOARD
NO
ITEM DESCRIPTION
.
1
Allen Wrench
4 * 80
mm
2
Wood Screw #8*32mm
3
4*100mm
Allen Key
4
Tipping Restraint
(Customer to assemble)
Remark:
In case of using the drilling machines for the assembling, please use the
Allen Key (3) to replace Allen Wrench (1).
HARDWARE LIST FOR STORAGE SIDE RAIL
NO
.
ITEM DESCRIPTION
Bolt 5/16"*25*Ø17mm
1
2
Lock Washer 8mm
3
Flat Washer Ø19*2mm
4
Allen Wrench 4 *80mm
4*100mm
5
Allen Key
Remark:
In case of using the drilling machines for the assembling, please use the
Allen Key (5) to replace Allen Wrench (4).
HARDWARE REQUIRED
SCREWDRIVER (NOT INCLUDED)
OPTION 3:
w/ 2 STORAGE SIDE RAILS
Q'TY
4PCS
4PCS
4PCS
1PC
1PC
PAGE 1 OF 7
Q'TY
1PC
10PCS
1PC
1PC
