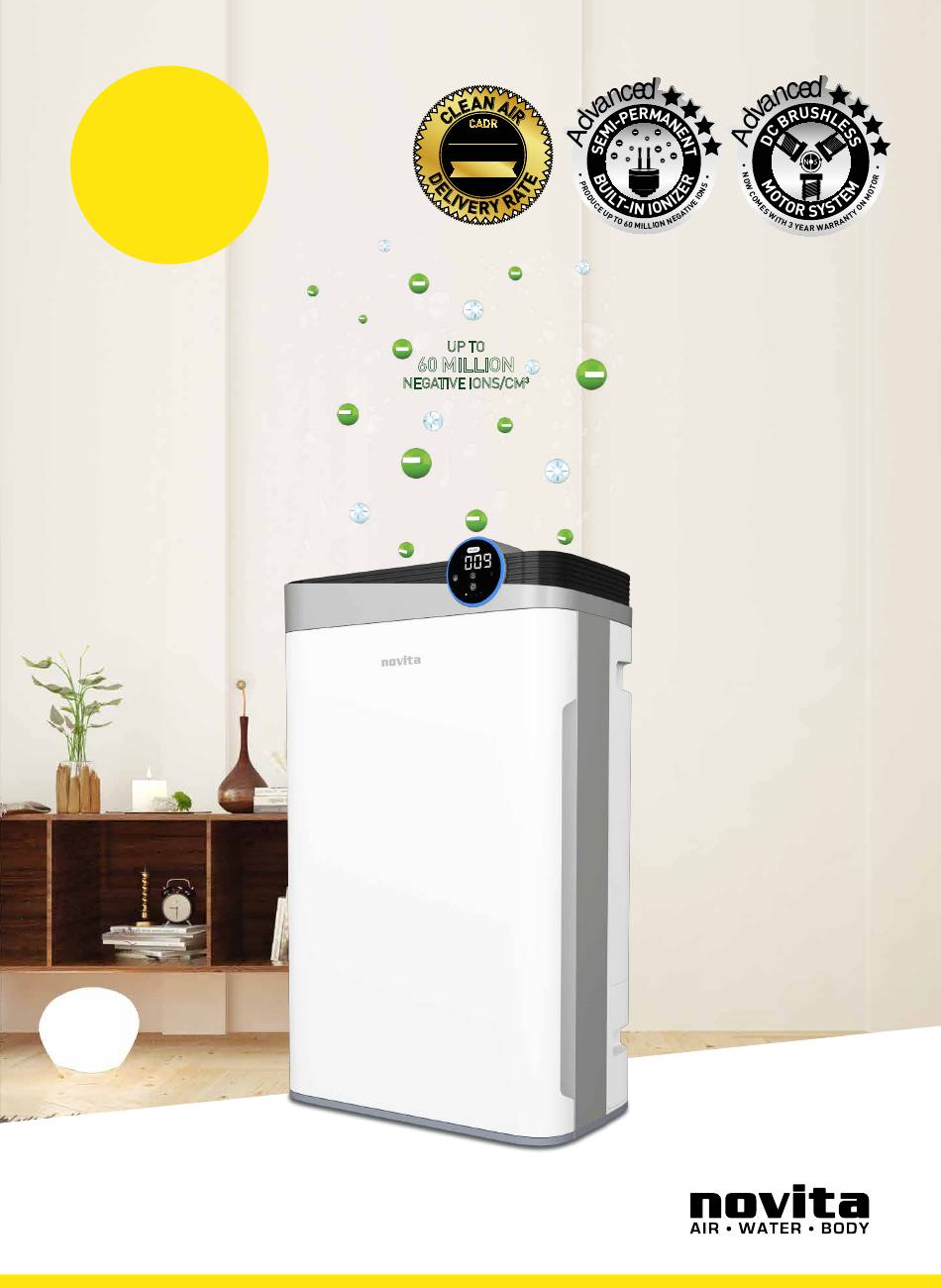

A4S

BREATHE WELL

4-IN-1 AIR PURIFIER

OPERATING INSTRUCTIONS AND E-WARRANTY APPLICATION

PLEASE READ INSTRUCTIONS BEFORE USING THE AIR PURIFIER

282 CFM

480 m

◊

PM2.5 SMOKE

*CFM Unit Is Equivalent To ft

/min

◊

/h Unit Is Derived From CFM Conversion

BASED ON NOVITA PM2.5 FILTER

TEST IS PERFORMED IN ACCORDANCE TO

AHAM AC-1-2015 STANDARD

UP TO

60 MILLION

NEGATIVE IONS/CM

• LOW POWER CONSUMPTION OF 47W^ •

• INCREASED MOTOR LIFESPAN •

• INCREASED EFFICIENCY •

• REDUCED NOISE •

^ BASED ON HIGH FAN SPEED SETTING

PURIFY

ELIMINATE AIRBORNE

ALLERGENS & GERMS

HUMIDIFY

REPLENISH MOISTURE &

IMPROVE HUMIDITY LEVEL

IONIZE

FRESHEN INDOOR AIR

SANITIZE

EFFECTIVE AGAINST

VIRUSES & BACTERIA

(WITH NOVITA AIR PURIFYING

SOLUTION CONCENTRATE)

Table of Contents

Need help?

Do you have a question about the puriclean complete BREATHE WELL A4S and is the answer not in the manual?

Questions and answers

Summary of Contents for Novita puriclean complete BREATHE WELL A4S

Page 1 PM2.5 SMOKE *CFM Unit Is Equivalent To ft /min ◊ /h Unit Is Derived From CFM Conversion BASED ON NOVITA PM2.5 FILTER TEST IS PERFORMED IN ACCORDANCE TO AHAM AC-1-2015 STANDARD 4-IN-1 AIR PURIFIER • LOW POWER CONSUMPTION OF 47W^ •...
Page 2: Table Of Contents
• Operating Instructions & e-Warranty Application (e-copy) Please contact us immediately if any of the above-mentioned items are not included. OPTIONAL ACCESSORY • novita Air Purifying Solution Concentrate (Compatible with novita 4-In-1 air purifier, air revitalizer, aroma diffuser and humidifier)
Page 3: Product Description
PRODUCT DESCRIPTION PRODUCT DESCRIPTION TOP VIEW BACK VIEW FRONT VIEW Air Outlet Grille Air Inlet Water Tank Handle Back Panel Control Panel Front Panel Water Tank Base LCD Display Screen Humidifying Filter Water Level Float Sensor Power Cord & Plug Air Quality Sensor Light Water Tank Cover FIR Particle Sensor...
Page 4: Technical Specification
CFM unit is equivalent to ft /min, m /hr unit is derived from CFM conversion. Based on novita PM2.5 filter. *Based on average excellent indoor air quality, 12 hours a day, 7 days a week usage under normal domestic indoor environment.
Page 5: Puriclean Complete™ System
STAGE 04 // AIR PURIFICATION AIR HUMIDIFICATION AIR IONIZATION AIR SANITIZATION STAGE BUILT-IN IONIZER (SEMI-PERMANENT) STAGE STEP STEP STEP STEP STAGE NOVITA AIR PURIFYING SOLUTION WASHABLE COOL CATALYST GRANULAR 99.97% TRUE HUMIDIFYING CONCENTRATE MESH FILTER FILTER ACTIVATED HEPA FILTER FILTER ◊...
Page 6: Using The Novita 4-In-1 Air Purifier A4S
STAGE 04 // AIR SANITIZATION novita Air Purifying Solution Concentrate is formulated with NSF certified and EPA registered active ingredient from USA, to reduce the potential risks from the airborne threats. Introduced into the surrounding air through the 4-In-1 humidification function, the vaporized concentrate containing the active ingredient is encapsulated by the negative ions from the built-in ionizer.
Page 7: Operating Notes
Proceed to place back the water tank refill rubber lid, align, slot and slide the water tank back into the unit. Ensure the water tank is securely installed and locked in position. • When the water tank is removed, the water shortage tank illuminates continuously and unit will stop operation even though the other light indicators continue to illuminate.
Page 8 STEP 04 TIMER Touch TIMER button consecutively to select your preferred timer operation (from 01 to 12 hours) to switch off the unit. Timer can be set at an interval of 01 hour. • Control Panel • The selected timer operation will be displayed on the LCD screen for 5 seconds, then revert back to the PM2.5 readings.
Page 9 STEP 07 FAN SPEED Touch SPEED button to select your preferred fan speed (Low, Medium or High) settings. The selected fan speed setting will be displayed on the LCD screen and its corresponding button illuminates. • Control Panel • • LCD Screen Display • Low Fan Speed Medium Fan Speed High Fan Speed...
Page 10 • LCD Screen Display • • Control Panel • Touch and hold for 3 seconds STEP 11 SLEEP MODE Touch SLEEP button once to activate sleep mode and its corresponding button illuminates. At sleep mode, air flow rate is reduced to the lowest and all light indicators will be switched off except fan speed indicator which will be illuminated at 15% light intensity.
Page 11 • The evaporative humidification cannot be carried out, when the water tank is empty. • When humidification function is not required, ensure the water is thoroughly drained and dried from the water tank. • The optional product accessory – novita air purifying solution concentrate is used in conjunction with the humidification function.
Page 12: Using The Novita Air Purifying Solution Concentrate
Using the novita Air Purifying Solution Concentrate • This unit can be used in conjunction with novita air purifying solution concentrate only. Warranty will not cover any damages caused by the use of other brands/types of scents/blends/solutions/solvents or additives. • novita air purifying solution concentrate is compatible with novita 4-In-1 Air purifier, air revitalizer, aroma diffuser and humidifier.
Page 13: Months/9,000 Hours Puripro ® Filter Replacement
STEP 06 10 cm Ensure there is clearance of at least 50 cm for air inlets at both sides of the unit and clearance of at least 10 cm for the back of the unit. • DO NOT block the air inlets and outlets to ensure sufficient air ventilation and maximum efficiency of the unit.
Page 14: 12 Months Humidifying Filter Replacement
STEP 04 Align the grooves at the bottom of the front panel casing into the unit and close it towards the magnetic catch securely. • Please be careful not to injure your hand while attaching the front panel casing back onto the unit.
Page 15: Cleaning & Maintenance
STEP 04 Grasp the water tank handle, slide it inwards to assemble into the unit. Ensure the water tank is securely installed and locked in position. • When the water tank is removed, the water shortage illuminates and unit will stop operation.
Page 16 04. HUMIDIFYING FILTER It is recommended to clean and maintain the humidifying filter at least once a week or whenever a new scent of novita air purifying solution concentrate is used, to prevent compromising the scent due to traces of the preceeding concentrate residues.
Page 17: Safety Precautions
SAFETY PRECAUTIONS SAFETY PRECAUTIONS DO NOT pull or tug the unit by Keep the unit away from Ensure all filters are properly the power cord to prevent safety flammable liquids. placed into the unit before usage. hazards or damage to the unit. Servicing should only be DO NOT insert any foreign Always place the unit on a dry,...
Page 18: Safety Instructions
It is recommended to replace water inside the water tank with fresh tap water daily for the evaporative humidification function. CAUTION! This unit can be used novita air purifying solution concentrate only. Warranty will not cover any damages caused by the use of other brands/types of scents/blends/solutions/solvents or additives.
Page 19: Troubleshooting
• • Power plug or cord is damaged. Contact novita Customer Care Centre. • • The front panel, air outlet grille or Remove and reattach the front panel, water tank are not properly assembled air outlet grille and water tank for the into the unit.
Page 20: Novita Customer Service Guarantee
Minimum Downtime Understanding that time is of the essence, for each servicing or repair, novita guarantees that we will only take up to 7 working days to get your product up and ready for collection.
Page 21: E-Warranty Application
S$24 is applicable. To the fullest extent permitted by law, novita shall not be in any way liable for any consequential, incidental, direct, indirect...
Page 22: Extended Warranty
In the event that the Product is out of stock, obsolete or beyond repair, novita reserves all rights to replace the Product with another similar value as deem appropriate, subject to availability. In no event shall any recovery against novita exceed the actual price paid for the purchase of the Product.
