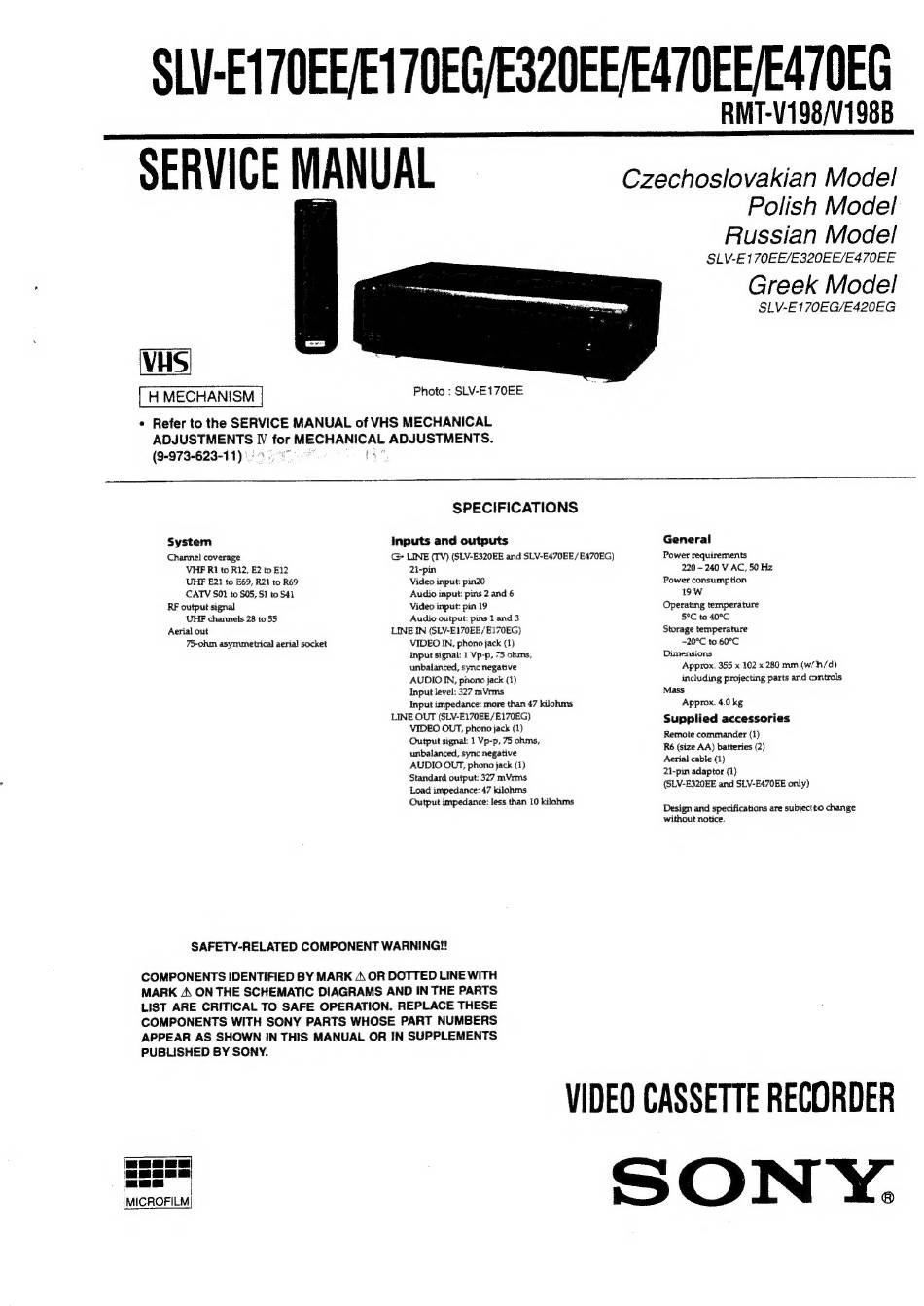

RMT-V198/V198B
SERVICE MANUAL
VHS

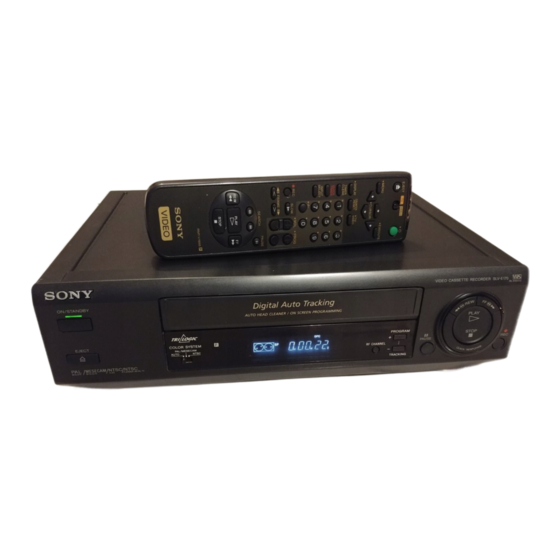

Photo : SLV-E170EE
« Refer to the SERVICE MANUAL of VHS MECHANICAL
ADJUSTMENTS IV for MECHANICAL ADJUSTMENTS.
(9-973-623-11) ) 8"
Czechoslovakian Model
Polish Model
Russian Model
SLV-E170EE/E320EE/E470EE
Greek Model
SLV-E170EG/E420EG
System
Channel coverage
VHF R1 to Ri2, E2 to E12
UHF E21 to £69, R21 to R69
CATV S01 to $05, S1 to $41
RF output signal
UHF channels 28 to 55
Aerial out
75-ohm asymmetrical aerial socket
SPECIFICATIONS
inputs and outputs
C LINE (TV) (SLV-E320EE and SLV-E470EE/E470EG)
21-pin
Video input: pin20
Audio input: pins 2 and 6
Video input: pin 19
Audio output: pins 1 and 3
LINE IN (SLV-E170EE/E170EG)
VIDEO IN, phono jack (1)
input signal: 1 Vp-p, 7S ohms,
unbalanced, sync negative
AUDIO IN, phono jack (1)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
LINE OUT (SLV-E170EE/E170EG)
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phono jack (1)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
General
Power requirements
220 - 240 V AC, 50 Hz
Power consumption
19W
Operating temperature
S°C to 40°C
Storage temperature
~20°C to 60°C
Dimensions
Approx. 355 x 102 x 280 mm (w/h/d)
including projecting parts and controls
Mass
Approx. 4.0 kg
Supplied accessories
Remote commander (1)
R6 (size AA) batteries (2)
Aerial cable (1)
21-pin adaptor (1)
(SLV-E320EE and SLV-E470EE only)
Design and specifications are subjecito change
without notice.
VIDEO CASSETTE RECORDER
SON
Y.
