  • Page 1 Admiral Series CA-190 Bench Scale Owner’s Manual 1960-0652-0M Rev A 09/17...
  • Page 2 1960-0652-0M Rev A 09/17...
  • Page 3 FCC Compliance Statement This equipment generates uses, can radiate radio frequency, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
  • Page 4 1960-0652-0M Rev A 09/17...

  • Page 5: Model Description

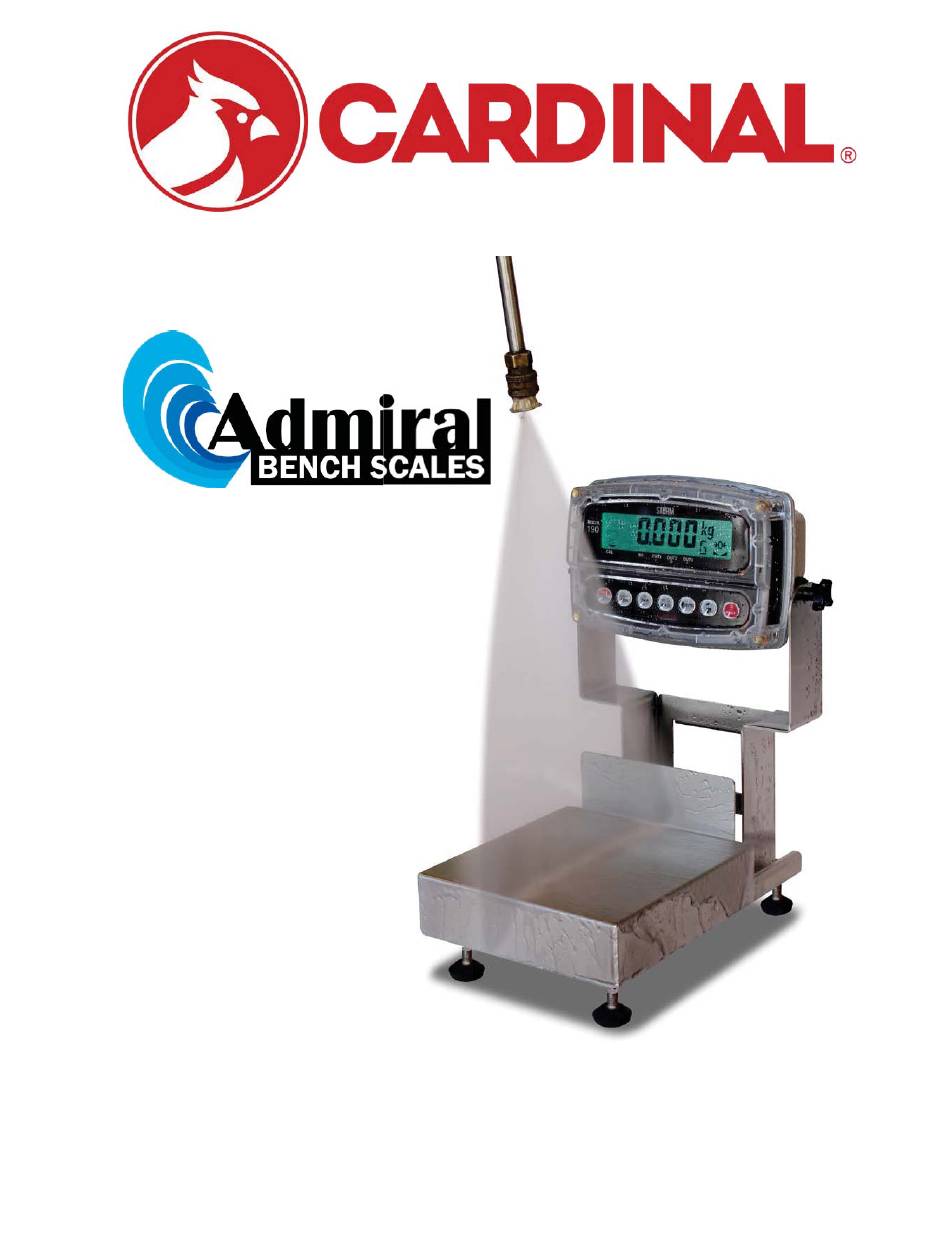

    INTRODUCTION The Admiral Series CA-190 Bench Scale is designed for speed and accuracy with an extremely heavy-duty platform that provides a stable base for high-usage food processing applications. Combined with the extreme-duty 190 Storm indicator with both having an IP69K rating, this bench scale is unmatched.

  • Page 6: Site Preparation Requirements

    SITE PREPARATION REQUIREMENTS The Admiral Series CA-190 Bench Scale is a precision weight-measuring instrument. As with any precision instrument, it requires an acceptable environment to operate at peak performance and reliability. This section is provided to assist you in obtaining such an environment.

  • Page 7: Electrical Power

    SITE PREPARATION REQUIREMENTS, CONT. Electrical Power The scale has been designed to operate from 100 to 240 VAC @ 0.4A Max. at 50/60 Hz. Note that a special order is not required for operation at 230/240 VAC. WARNING! - To avoid electrical hazard and possible damage to the scale, DO NOT, under any circumstance, cut, remove, alter, or in any way bypass the power cord grounding prong.

  • Page 8: Installation

    INSTALLATION Unpacking the Scale Before beginning installation of the scale, make certain that it has been received in good condition. Carefully remove it from the shipping carton and inspect it for any evidence of damage (such as exterior dents and scratches) that may have taken place during shipment. Remove the packing material from the scale base and the protective covering from the indicator and commodity tray.

  • Page 9: Operation

    OPERATION Keypad The Admiral Series CA190 Bench Scale indicator is equipped with a 7-key Capacitive Touch keypad. The keypad is used to enter commands and data into the indicator. This section describes each key along with its normal function. It is helpful to refer to the actual indicator while reading this section.
  • Page 10 OPERATION, CONT. Keypad, Cont. Description TARE (Enter): The TARE key is used during operation to store the current Gross weight as the new Tare weight. The display will change to the Net weight and the Net annunciator will turn on. NET/GROSS: The NET/GROSS key is used to toggle between the Gross and Net weight modes.

  • Page 11: Key Functions

    OPERATION, CONT. Key Functions The Fn/ key is used to select several additional functions that may have been enabled during the setup and calibration of the indicator. Those functions include: Hold, Count, Time and Date, Peak Hold, Checkweigher, Live Weight, Weight Accumulation and Backlight Color. NOTE: The Hold, Count and Live Weight functions cannot be enabled if the Legal- For-Trade option ( ) was selected during setup.
  • Page 12 OPERATION, CONT. Annunciators The Admiral Series CA190 Bench Scale indicator is equipped with annunciators that are turned on to indicate that the display is in the mode corresponding to the annunciator label or that the status indicated by the label is active. This section describes each annunciator. Symbol Name Description...
  • Page 13 OPERATION, CONT. Annunciators, Cont. ACCEPT This annunciator is used to signal that the displayed weight is within the acceptable weight limits for the OUT2 Checkweigher feature. That is, the weight is equal to or greater than the minimum acceptable weight and equal to or less than the maximum acceptable weight.
  • Page 14 OPERATION, CONT. Checkweigher With the Checkweigher function enabled during setup of the indicator, the function must be activated before it can be used. Refer to the 190 Technical and Operation Manual, 8400-M022-O1, section 4.14 Function Setup, the ) parameter to enable the Fn/ key Checkweigher function.
  • Page 15 OPERATION, CONT. Checkweigher, Cont. Target Weight Selection From the weight display, briefly press and then release the Fn/ key. The display will show the prompt Press the TARE key. The display will show the ID of the currently selected target weight. If the setting displayed is acceptable, press the TARE key to save it.
  • Page 16 The Admiral Series CA190 Bench Scale can operate from an optional rechargeable Lithium Ion battery. If you wish to operate the scale from a battery, you must first obtain and install the BP190 optional battery. The battery can be purchased from the Cardinal Scale Parts Department. Phone: (800) 641-2045 or email: parts@cardet.com.

  • Page 17: Battery Status

    BP190 - OPTIONAL BATTERY, CONT. Slots in Power Supply Cover Cable Ties Battery Pack Cable Ties Connected Together See Step 5 Note and Images Below. WRONG! Do Not Position Cable Ties Connection on CORRECT! Front of Batteries. Position Cable Ties Connection on Top of Batteries.

  • Page 18: Charging Guidelines

    BP190 - OPTIONAL BATTERY, CONT. Charging To recharge the battery pack, the AC power adapter must be connected to an AC power outlet and plugged into the indicator. It will take approximately six (6) hours to fully recharge the battery pack in the indicator. While the battery pack is charging the indicator can still be operated.

  • Page 19: Care And Cleaning

    CARE AND CLEANING The Admiral Series CA190 bench scale is comprised of a IP69K rated indicator and a wash- down base that may be cleaned using high pressure, high temperature wash-down procedures or hand cleaned with detergents and water. NOTE: The high pressure, high temperature spray should be no closer than 4 to 6 inches, with the pressure between 1160 to 1450 PSI and the temperature limited to 176 ºF.

  • Page 20: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE The Admiral Series CA190 Bench Scale has been designed to provide you with years of trouble-free operation. However, should you experience a problem, please refer to the troubleshooting guide below before you call for service. The following describes several types of symptoms along with suggested remedies.

  • Page 21: Error Codes

    ERROR CODES The indicator used on the Admiral Series CA190 Bench Scale is equipped with software that indicates when an error in the operation takes place. The following lists the error codes displayed along with their meaning. Should you encounter an error code, please refer to this list for the cause.

  • Page 22: Parts Identification

    PARTS IDENTIFICATION ITEM NO. QTY. PART NUMBER DESCRIPTION 1960-0646-0A BASE/COLUMN 1960-0647-08 WEIGHBRIDGE SSPW-20KG LOAD CELL, CA8-15KGW-190 SSPW-20KG LOAD CELL, CA8-30W-190 SSPW-75KG LOAD CELL, CA12-60KGW-190 SSPW-75KG LOAD CELL, CA12-120W-190 1960-D558-08 COMMODITY TRAY 1960-0650-08 LOAD CELL SPACER 6540-1202 LEVELER FEET 6007-0103 BLT HEX HD 5/16-18 UNC X 2 1/2” S.S. 6021-2085 SCW BUTTON HD M8-1.25 X 14MM S.S.
  • Page 23 PARTS IDENTIFICATION, CONT. 1960-0652-0M Rev A 09/17...
  • Page 24 PARTS IDENTIFICATION, CONT. 1960-0652-0M Rev A 09/17...
  • Page 25 STATEMENT OF LIMITED WARRANTY WARRANTY TERMS Cardinal Scale Manufacturing Company warrants the equipment we manufacture against defects in material and workmanship. The length and terms and conditions of these warranties vary with the type of product and are summarized below:...
  • Page 26 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of our product. Cardinal will not be liable for consequential damages of any nature, including but not limited to loss of profit, delays or expenses, whether based on tort or contract.
  • Page 27 1960-0652-0M Rev A 09/17...
  • Page 28 Cardinal Scale Mfg. Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 www.cardinalscale.com Technical Support: 1-866-254-8261 E-mail: tech@cardet.com Printed in USA 1960-0652-0M Rev A 09/17 1960-0652-0M Rev A 09/17...
