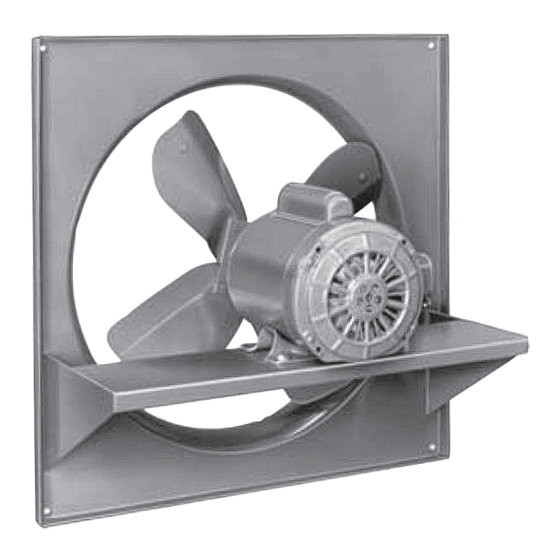

- Page 1 CINCINNATI FAN u s e r m a n u a l Arrangement 4 axial fan Model PF I N STA L L AT I O N - O P E R AT I O N - M A I N T E N A N C E...
- Page 2 Altitude ft Airstream Temperature °F Do Not Exceed this RPM Fan RPM Maximum Safe Fan RPM Motor Data: (This section is completed only if the motor was supplied by Cincinnati Fan) Voltage Phase Frame Size Enclosure Efficiency If Motor is EXP, Class(es) and Group(s) are Manufacturer’s Model Number...
-
Page 3: Table Of Contents
contents This manual contains vital information for the proper installation and Note operation of your blower fan. Carefully read the manual before installa- tion or operation of the blower fan and follow all instructions. Save this manual for future reference. General ................................ -
Page 4: General
general Receiving Unpacking Be careful not to damage or deform any parts of the fan when removing it from the packaging container. All the packaging material should be kept in the event the fan needs to be returned. Handling Handling of the fan should be performed by trained personnel and be consis- tent with all safe handling practices. - Page 5 general Temperature Some fans, fan components and all motors operate at temperatures that could burn someone if they come in contact with them. If this potential hazard could exist in your installation, steps must be taken by the user to protect anyone from coming in contact with this equipment.
-
Page 6: Installation
Safety Guards Cincinnati Fan offers guards, as options, to keep your fan in compliance with OSHA safety regulations. These include inlet or discharge guards and belt guards. It is the responsibility of the user to make sure this fan meets all local, state and OSHA safety regulations. -
Page 7: Dampers And Shutters
installation Dampers and Shutters (airflow control devices) If the fan is supplied with any type of air flow control device, it should be closed before initial start-up of the fan to minimize overloading of the motor. Any air- flow control device, with bearings, should be maintained in accordance with the manufacturers instructions. -
Page 8: Electrical
installation Electrical Disconnect Switches: All fan motors should have an independent disconnect switch located in close visual proximity to turn off the electrical service to the fan motor. Disconnects must be locked out in accordance with OSHA “lock out-tag out” procedures any time inspection or maintenance is being performed on the fan and/or motor assembly. - Page 9 installation Location: On PF model fans, the motor is in the airstream. The standard motor is a totally enclosed type motor which is suitable in a clean, dry airstream below 104°F (40°C). If the airstream will be wet, dirty or reach temperatures above 104°F (40°C), a completely different type of fan should be used.
-
Page 10: Maximum Fan Speed
The maximum safe fan speed is shown on the data sheet shipped with the fan. If you have lost the data sheet, contact Cincinnati Fan or the sales office for your area. You must have the serial number from the fan name plate for us to determine the maximum safe fan speed. -
Page 11: Initial Unit Startup
operation Pre-Startup and Post-Startup Check (Check blocks as each step is completed. Retain for you records) Failure to complete and document all the following Pre-Startup checks, Note Post-Startup checks and Vibration checks, could void all warranties. Pre-Startup Check completed by: Date Eight Hour Post-Startup Check completed by: Date... -
Page 12: Vibration
operation Pre-Startup Check completed by: Date Eight Hour Post-Startup Check completed by: Date Three-Day Post-Startup Check completed by: Date Apply power to the blower motor and let it come up to full speed. Turn off the power. Look and listen for n n n n n n any unusual noise or mechanical abnormality while the propeller is still spinning. -
Page 13: Routine Inspection And Maintenance
If the operating conditions of the fan are to be changed (speed, pressure, temperature, etc.) consult Cincinnati Fan or our sales office in your territory to determine if the unit will operate safely at the new conditions. -
Page 14: Propeller Balance
maintenance must be rebalanced or replaced. The other airstream components should also be inspected for wear or structural damage and cleaned or replaced if neces- sary. After cleaning any propeller, it should be balanced. There are two ways to balance a propeller: Add balancing weights for fabricated aluminum, steel or stainless steel propellers: Balance weights should be rigidly attached to the propeller at a location... -
Page 15: Safety Equipment And Accessories
Replacement Parts Under normal conditions, you should not need any spare or replacement parts for at least 24 months after shipment from Cincinnati Fan. That does not include any wear due to abrasion, corrosion, excessive temperatures, abuse, misuse, accident or any severe conditions the fan was not designed for. -
Page 16: Troubleshooting
maintenance Troubleshooting Potential problems and causes listed below are in no order of importance or priority. The causes are only a list of the most common items to check to correct a problem. If you find the cause of a problem, do not assume it is the only cause of that problem. -
Page 17: Long Term Storage
maintenance Long Term Storage Storage exceeding 30 days after receipt of equipment. Failure to adhere to these instructions voids all warranties in their entirety. Note • Storage site selection: - Level, well-drained, firm surface, in clean, dry and warm location. Mini- mum temperature of 50°F (10°C). - Page 18 maintenance - Do not lubricate the motor bearings during storage. Motor bearings are packed with grease at the factory. Excessive grease can damage the insulation quality in the motor. - If the storage location is damp or humid, the motor windings must be protected from moisture.
-
Page 19: Warranty, Limits Of Liability, Responsibility And Returns
Limited Warranty Cincinnati Fan and Ventilator Company (Seller) warrants products of its own manufacture, against defects of material and workman-ship under normal use and service for a period of eighteen (18) months from date of shipment or twelve (12) months from date of installation, whichever occurs first. This warranty does not apply to any of Seller’s products or any part thereof which has been... - Page 20 Purchaser’s and/or User’s compliance with any Federal, State and local regulations. Returns Cincinnati Fan & Ventilator Company assumes no responsibility for any mate- rial returned to our plant without our permission. An RMA (Return Material Authorization) number must be obtained and clearly shown on the outside of the carton or crate and on a packing slip.
-
Page 21: Parts Drawing
Or, you can print a current version by going to our website at: cincinnatifan.com. Parts Drawing Cincinnati Fan manufactures many models and arrangements with special variations. For that reason, the maintenance manuals contained on our website do not include a parts drawing nor the completed blower or fan specifications on page 2. - Page 24 Axial Fan U S E R M A N UA L SPX ENGINEERED AIR MOVEMENT CF-19-IOM-24 ISSUED 5/2024 ©2024 SPX ENGINEERED AIR MOVEMENT ALL RIGHTS RESERVED 7697 SNIDER ROAD In the interest of technological progress, all products are subject to design T E C H N O L O G I E S MASON, OH 45040 USA and/or material change without notice.
