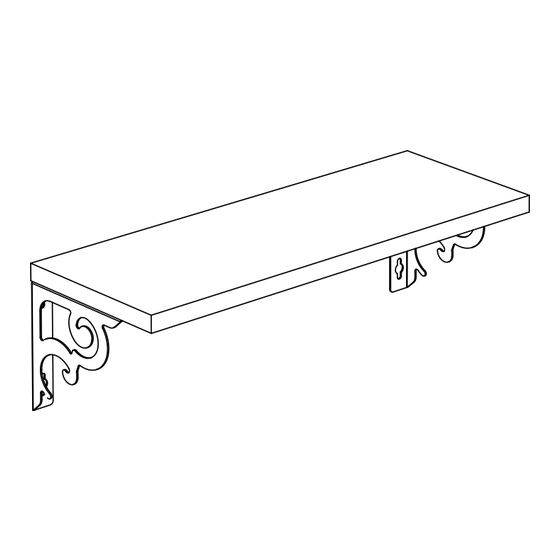

Wall Shelf Instruction Manual
(C)
Model: AMFS21
Thank you for choosing this AMADA product! At AMADA, we strive to
provide you with the best quality products and services in the industry.
Should you have any issues, please don't hesitate to contact us at
support@amadahome.com.
Advertisement
Related Manuals for Amada Homefurnishing AMFS21
Summary of Contents for Amada Homefurnishing AMFS21
- Page 1 Wall Shelf Instruction Manual Model: AMFS21 Thank you for choosing this AMADA product! At AMADA, we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION • Check package contents against supplied parts and hardware list to ensure that all components were received undamaged. DO NOT use damaged or defective parts. lf you require replacement parts, please contact our customer service at support@amadahome.com. •... - Page 3 WARNING • For drywall mounting, use drywall anchors [D]. • For wood stud mounting, drywall anchors [D] and wall anchors [E] are not necessary. • For solid concrete and concrete block walls, use wall anchors [E]. Step 1 Secure the Brackets to Wall Shelf Using Four Short Screws [A] Option A [Not Included]...
- Page 4 Option B [Not Included] 01A / 01B / 01C Step 2 Secure the Brackets on the Wall Before installation, please identify your wall type. For wood stud installation, follow step 2A. For drywall installation, follow step 2B. For solid concrete and concrete block walls installation, follow step 2C. Step 2A Wood Stud on one Side and the Drywall on the Other Stud Finder Pencil...
- Page 5 Level (NOT lncluded) Pencil (NOT lncluded) 1 27/32" (47mm) Electric Drill 1 3/16” (30mm) (Not lncluded) 5/64" (2mm) ø1/4'' (6mm) For Wood Stud For drywall [Not Included] WARNING: DO NOT use anchors [D] or [E] on wood stud. The drywall anchors [D] are for drywall only! 1/8"...
- Page 6 Step 2B For Drywall Level (NOT lncluded) Pencil (NOT lncluded) Electric Drill (Not lncluded) 1 3/16” (30mm) ø1/4'' (6mm) [Not Included] 1/8" (3mm) NOTE: Allow head of screw to protrude 1/8" (3mm) from the wall.
- Page 7 Step 2C For Solid Concrete and Concrete Block Walls Level (NOT lncluded) Pencil (NOT lncluded) 2 3⁄64'' ( 52 mm) 1/4'' ( 6 mm) Electric Drill (Not lncluded) Hammer (Not lncluded)
- Page 8 1/8" (3mm) NOTE: Allow head of screw to protrude 1/8" (3mm) from the wall. [Not Included] Step 3 Hang the Wall Shelf onto the Head of Screw Option A Option B 860-00252-00 Rev00...
