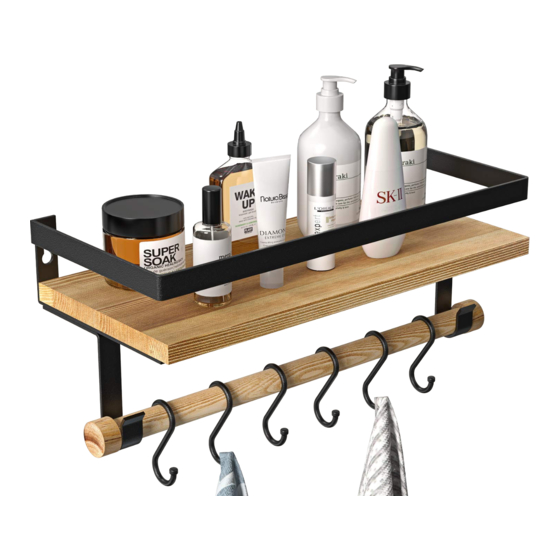

Floating Shelf Instruction Manual
V1.0
Model: AMFS09
Thank you for choosing this AMADA product! At AMADA we
strive to provide you with the best quality products and services
in the industry. Should you have any issues, please don't hesitate
to contact us at amada_supportus@163.com.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amada Homefurnishing AMFS09
Summary of Contents for Amada Homefurnishing AMFS09
- Page 1 Floating Shelf Instruction Manual V1.0 Model: AMFS09 Thank you for choosing this AMADA product! At AMADA we strive to provide you with the best quality products and services in the industry. Should you have any issues, please don't hesitate to contact us at amada_supportus@163.com.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION • Check package contents against supplied parts and hardware list to assure that all components were received undamaged. Do not use damaged or defective parts. lf you require replacement parts, please contact amada customer service at amada_supportus@163.com. •... - Page 3 Step 1 Secure the Metal Brackets [B] to Wood Board Loosen Tighten Step 2 Secure Screws to Wall Before installation, please identify your wall type. For wood stud installation, follow the step 2A. For drywall installation, follow the step 2B. For solid concrete and concrete block walls installation, follow the step 2C...
- Page 4 Step 2A For Wood Stud WARNING: For wood stud mounting, wall anchors [H] and [I] are not [Not Included] necessary. [Optional] (For wood stud only!) 2 in.(50mm) 1/8in.(3mm) spacing left ø5/64 in.(ø2mm) between the wall and the end of screws For Screw [E] Step 2B For Drywall...
- Page 5 Step 2C For Solid Concrete and Concrete Block Walls 2 11/64 in.(55mm) 15/64 in.(ø6mm) 1/8in.(3mm) spacing left between the wall and the end of screws Step 3 Hang the Floating Shelf to Wall...
- Page 6 Step 4 Hang the Towel Bar and Hooks to Floating Shelf...
- Page 8 Thank you again choosing this AMADA product! All of us at AMADA do appreciate your product purchase. We hope that you are as happy with your product as we are designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
