Speaker Module

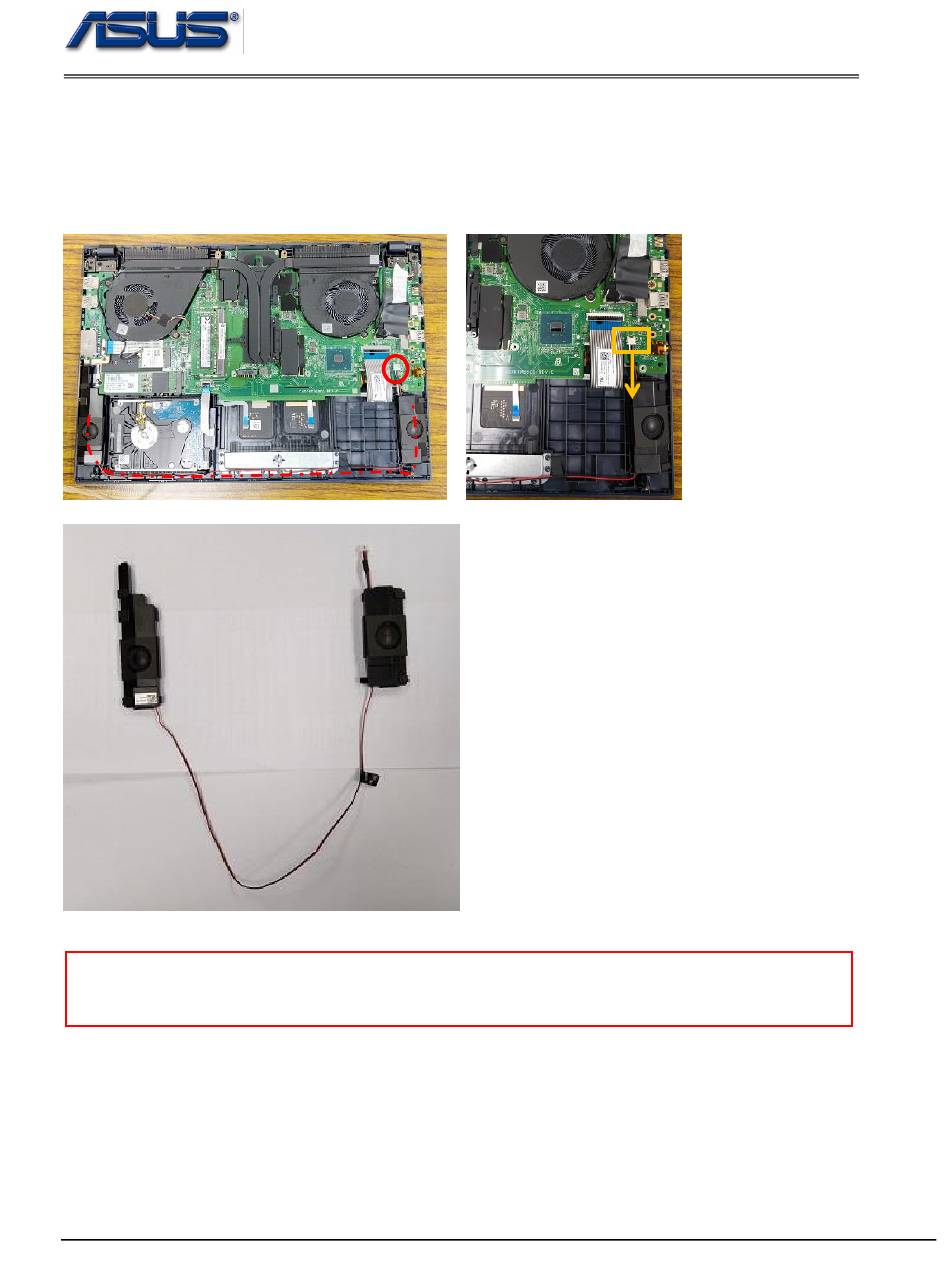

The illustrations below show how to remove the Speaker Module.
1. Disconnect the speak cable on the M/B and remove it.
Assembly Notice: please well arrange the audio cables and put them in the hook slot.
Parts
⚫
X571 SPEAKER SET//QCI/DN320102001*1
Disassembly Procedure
2 - 11
V1.0
