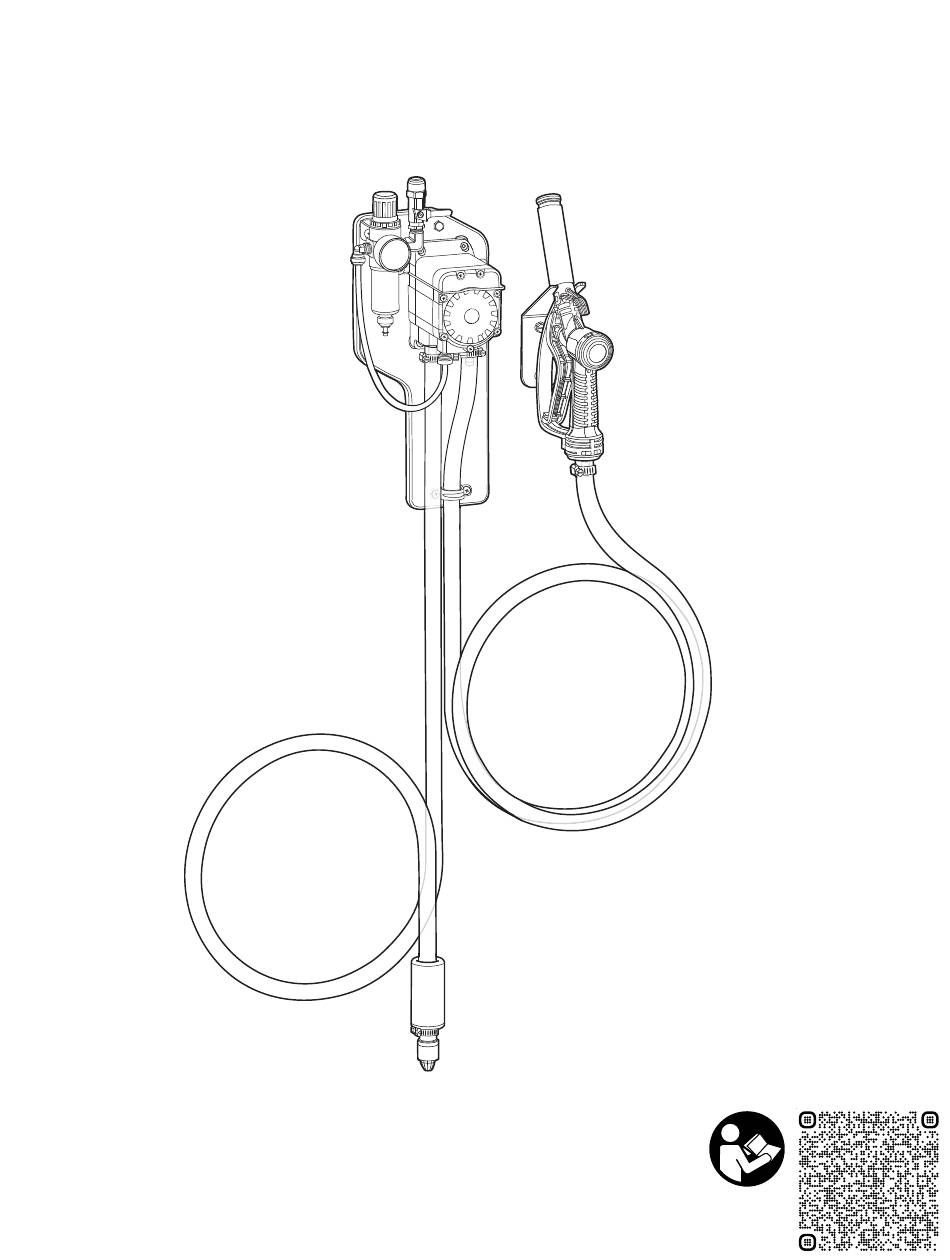

- Page 1 Chemical Transfer Unit Operation Manual CTX1 - CTX5 READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions) operation manual...
- Page 2 Always flush the unit with fresh water thoroughly when switching from an alkaline to an acid or an acid to an alkaline. Model: CTX1 - CTX5 V20240130 • Page 2 of 9...
- Page 3 If needed, install an air dryer before the unit. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: CTX1 - CTX5 V20240130 • Page 3 of 9...
-
Page 4: Product Overview
Flow rate* 3.5 gal/min (13.2 l/min) per pump Pump seals Santoprene, Viton, or Kalrez *Flow rates given are based on chemical with viscosity of water and factory air pressure settings. Model: CTX1 - CTX5 V20240130 • Page 4 of 9... -
Page 5: Product Components
Product Components Get to know the CTX1 components that you will need to use, adjust or assemble. Chemical Transfer Unit • One pump 1. Air regulator 2. Air pressure gauge 3. Air line 4. Suction Hose CTX1 5. Air inlet valve 6. - Page 6 4. Air line 5. Air inlet valve 6. Quick-change pump 7. Wand bracket 8. Discharge wand 9. Trigger gun 10. Discharge hose 11. Suction hose 12. Suction valve CTX3 CTX4 CTX5 Model: CTX1 - CTX5 V20240130 • Page 6 of 9...
-
Page 7: Using Your Unit
12. Squeeze trigger handle on the trigger gun to relieve any pressure remaining in the unit. 13. Release trigger handle after all pressure has been relieved from the unit. Model: CTX1 - CTX5 V20240130 • Page 7 of 9... - Page 8 13. Squeeze trigger handle on the trigger guns to relieve any pressure remaining in the unit. 14. Release trigger handle after all pressure has been relieved from the unit. Model: CTX1 - CTX5 V20240130 • Page 8 of 9...
-
Page 9: Maintenance
To service your unit, refer to the service manual which includes: • Troubleshooting procedures. • Detailed parts breakdowns and illustrations. • Part numbers of serviceable components and assemblies. Scan this code for service manual Model: CTX1 - CTX5 V20240130 • Page 9 of 9...
