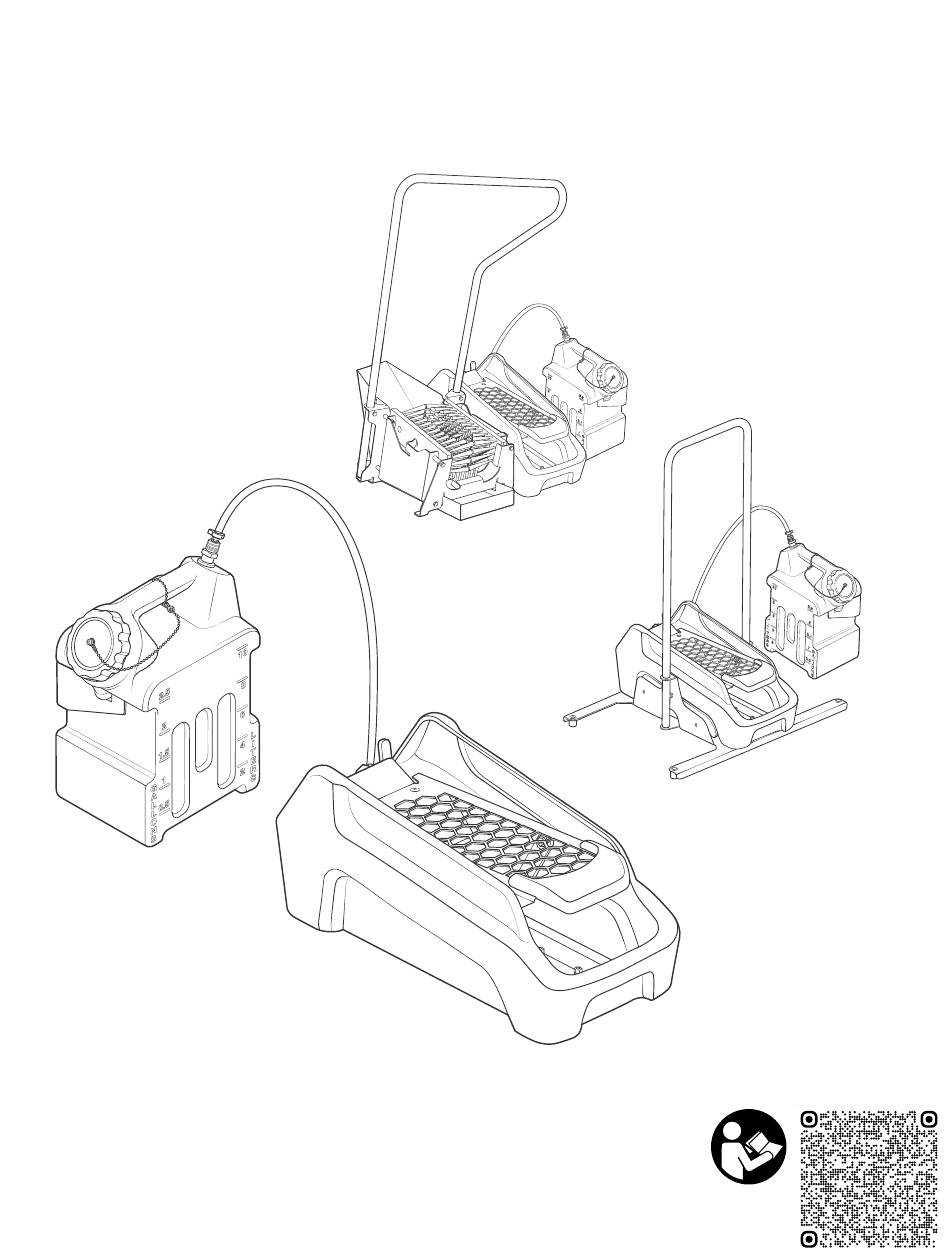

Airless Footwear Sanitizing Unit
Operation Manual
SS4 | SS4-MBS | SS4-BSH
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
SS4-MBS
SS4
Scan this code for
operation manual
SS4-BSH
Advertisement
Table of Contents
Related Manuals for Foamit SS4
Summary of Contents for Foamit SS4
- Page 1 Airless Footwear Sanitizing Unit Operation Manual SS4 | SS4-MBS | SS4-BSH SS4-MBS SS4-BSH READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for...
- Page 2 This unit is for use with fully protective footwear only. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 2 of 9...
-
Page 3: Product Overview
Add the bolded option codes to item number as shown. For standard units, no option code is needed. Examples: • SS4 (standard unit) • SS4-BSH (unit with base and handle) • SS4-MBS (unit with manual boot scrubber) Requirements Liquid temperature range 40-100˚F (4.4-37.8˚C) - Page 4 Product Components Get to know the SS4 components that you will need to use, adjust or assemble. Front view 1. Jug rack 2. Cap Back view 3. Jug 4. Suction assembly 5. Lock lever 6. Catch basin 7. Foot grate 8.
- Page 5 15. Base plate with handle 16. Base plate locator 17. Handle 18. Debris shield 19. Side brush 20. Boot scrubber base 21. Sole brush 22. Debris tray 23. Floor mount plate Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 5 of 9...
- Page 6 Handling Your Unit Use the following lift points for proper handling of your unit. Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 6 of 9...
-
Page 7: Using Your Unit
The entire sole should be covered with a consistent spray pattern. 9. Once spray pattern is achieved, place other foot on the grate and step down to activate the spray. Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 7 of 9... - Page 8 11. If desired, the unit is designed for secure floor installation, and includes a floor mount plate (h). Mounting hardware not included. 12. To prime and operate unit, follow the operating instructions listed on the previous page. Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 8 of 9...
-
Page 9: Maintenance
Maintaining Your Unit To keep your unit operating properly, perform the following daily maintenance procedures: For SS4, SS4-BSH, and SS4-MBS units: Collection basin cleaning instructions: • Inspect the stainless foot grate for debris and clean 1. - Page 10 Airless Footwear Sanitizing Unit Service Manual SS4 | SS4-MBS | SS4-BSH SS4-MBS SS4-BSH READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for...
- Page 11 This unit is for use with fully protective footwear only. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 2 of 12...
- Page 12 Maintaining Your Unit To keep your unit operating properly, perform the following daily maintenance procedures: For SS4, SS4-BSH, and SS4-MBS units: Collection basin cleaning instructions: • Inspect the stainless foot grate for debris and clean 1.
- Page 13 If unit does not hold a prime • Check hose clamps and ensure that barbs are secure. • Check all tubing connections and verify none are loose, broken, or leaking. Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 4 of 12...
-
Page 14: Housing Assembly
Housing Assembly HSGA-SS4: Housing assembly for SS4 - includes mechanism mounting plate, lock lever, rubber feet, locknuts and bolts Item number Description Locknut - 1/ 4 -20 - stainless - nylon LN1420 insert 2 HSG-SS4 Housing for SS4 3 LKLVR-SS4 Lock lever for SS4 Bolt - 1/ 4 -20 x 1 1/ 4 in. -
Page 15: Mechanism Assembly
Mechanism Assembly MCHA-SS4: Mechanism assembly for SS4 - includes fluid and air pumps, foot locator, manifold assembly, and mounting hardware Item number Description 1/ 4 -20 x 1/2 in. bolt - stainless - B142012-VS truss head Phillips - Vibra-Seal 1/ 4 in. id 3/8 in. od clear hose - 2 H14CL-PV PVC - available per ft. - Page 16 80 deg - 4 GPH 4 P18 Plug 1/8 MPT hex head 304 SS VLVA-3W2P-SS4: Valve assembly for SS4 - 3 way 2 position - includes fittings and nut Item number Description Fixed elbow 1/8 in. MPT x 1/ 4 in. tube...
- Page 17 Mechanism Sub-assemblies PMPA-FLD-SS4-WF: Pump assembly for SS4 - fluid - includes fittings, tubing, and check valves Item number Description Clamp for 1/ 4 in. od tube - plastic CLMPTB38-ADJ adjustable 1/ 4 in. id 3/8 in. od clear hose - 2 H14CL-PV PVC - available per ft.
- Page 18 Base With Handle SS4-BSH SS4-BSH: Footwear sanitizer - airless - SS4 - includes base with handle, 2.5 gallon chemical jug with suction, and SS rack BSHA-SS4: Base and handle assembly for SS4 - includes floor base plate, handle, and hardware...
- Page 19 Manual Boot Scrubber SS4-MBS SS4-MBS: Footwear sanitizer - airless - SS4 - includes floor mount, manual boot scrubber with combo handle, 2.5 gallon chemical jug with suction, and SS rack FMPL-SS4: Floor mount plate for SS4 Item number Description Floor mount plate for SS4 -...
- Page 20 14 SSJR2-P SS rack to mount chemical transport jug #14 x 1 1/ 4 in. wall mount screw anchor - 15 WMS14A plastic - 5/16 in. drill size SSJR2 Model: SS4 | SS4-MBS | SS4-FMH V20240125 • Page 11 of 12...
-
Page 21: Additional Configurations
Additional Configurations SS4-FM: Footwear sanitizer - airless - SS4 - includes floor mount, 2.5 gallon chemical jug with suction, and SS rack Item number Description Footwear sanitizer - airless - includes 2.5 gal chemical jug with suction and SS rack...
