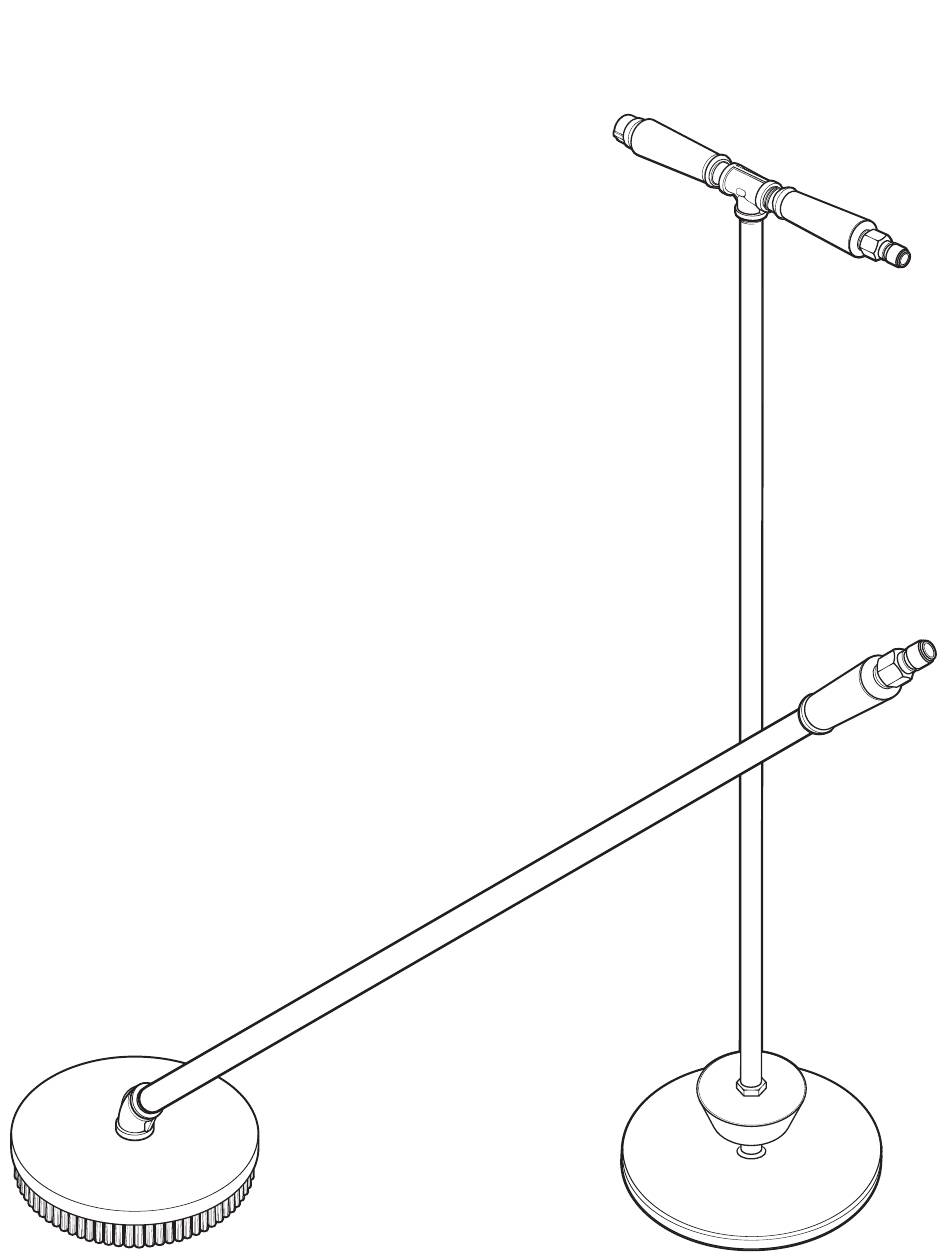

- Page 1 Drain Foaming Attachment User Manual DFA | DFA-TR7 READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. English (Original Instructions)
- Page 2 If needed, install an air dryer before the unit. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Model: DFA | DFA-TR7 V20211217 Page 2 of 6 •...
- Page 3 Product requirements Equipment requirements Requires connection to a FOAMit unit with ½ in. FPT discharge ball valve. Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information...
- Page 4 2. Thread the tee handle onto the top of the stainless steel pipe. (DFA model only). 3. Thread the rubber stopper end of the stainless steel pipe onto the stainless steel disc. (DFA model only). 4. Thread drain brush head onto stainless steel pipe. (DFA-TR7 model only).
- Page 5 • Inspect the mixing material located inside the retaining collar to release female fitting. attachment handle for debris and wear. Clean and replace as needed. • Inspect foam ring gasket for wear and replace as needed. Model: DFA | DFA-TR7 V20211217 Page 5 of 6 •...
- Page 6 Stainless pipe nipple ½ MPT x ½ MPT- 6 in. SSN126 long - SCH 40S QCSS12PF SST12 Stainless tee ½ FPT SSTLN12 ½ in. stainless locknut SSTLN12 RMS16 MIX7 SSN1248 SEL12F45 DFA-SSD12 SC1212 DFBD7 DFA-12 FWP12 HHSB1238 DFA-TR7 Model: DFA | DFA-TR7 V20211217 Page 6 of 6 •...
