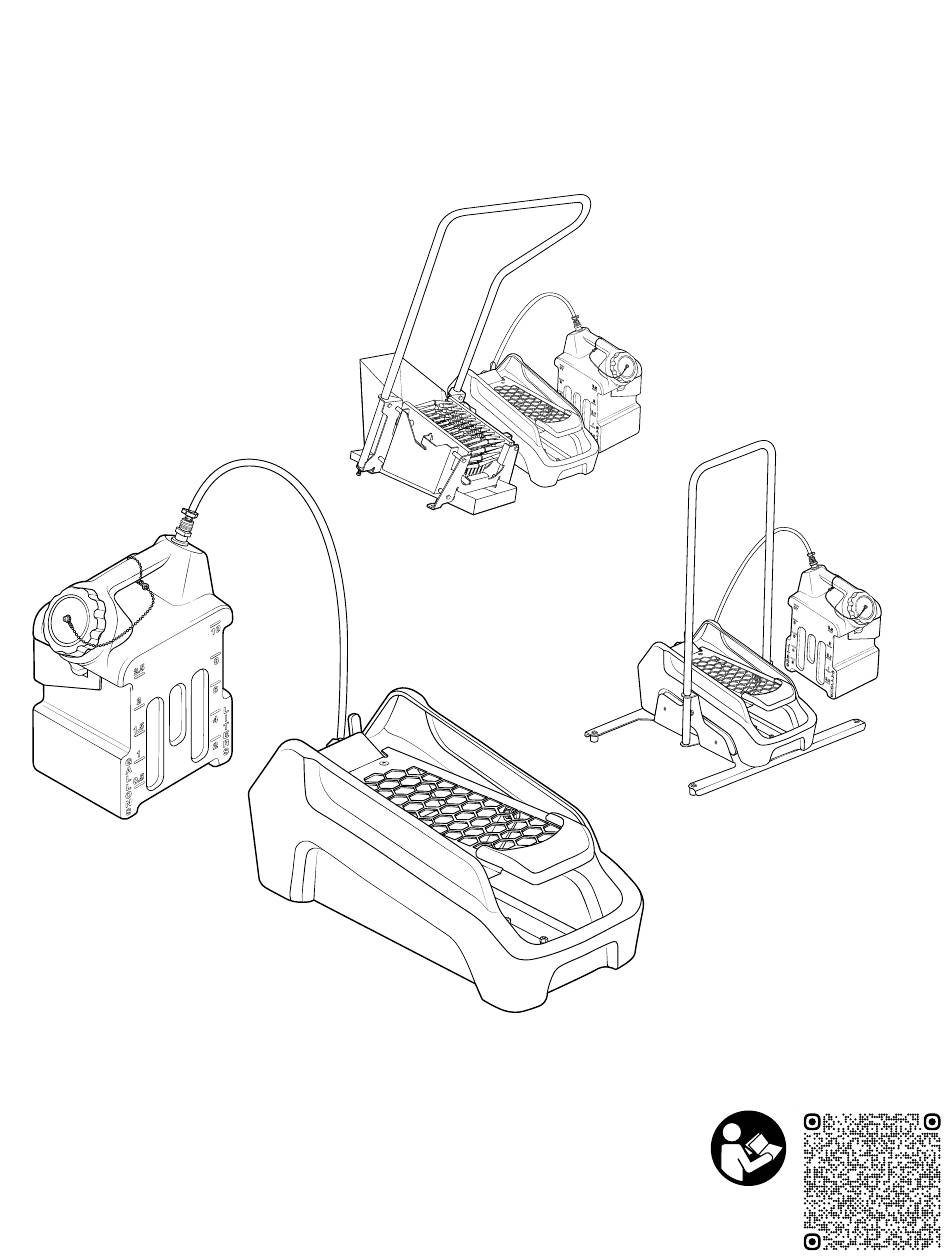

Airless Footwear Sanitizing Unit
Service Manual
SS4 | SS4-MBS | SS4-BSH
READ ALL INSTRUCTIONS BEFORE USING OR
SERVICING THIS UNIT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS
AND SERVICE TECHNICIANS.
English (Original Instructions)
SS4-MBS
SS4
Scan this code for
service manual
SS4-BSH
Advertisement
Table of Contents
Related Manuals for Foamit SS4
Summary of Contents for Foamit SS4
- Page 1 Airless Footwear Sanitizing Unit Service Manual SS4 | SS4-MBS | SS4-BSH SS4-MBS SS4-BSH READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for...
- Page 2 This unit is for use with fully protective footwear only. PROTECT THE ENVIRONMENT Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: SS4 | SS4-MBS | SS4-FMH V20240822 • Page 2 of 12...
-
Page 3: Maintaining Your Unit
Maintaining Your Unit To keep your unit operating properly, perform the following daily maintenance procedures: For SS4, SS4-BSH, and SS4-MBS units: Collection basin cleaning instructions: • Inspect the stainless foot grate for debris and clean 1. - Page 4 If unit does not hold a prime • Check hose clamps and ensure that barbs are secure. • Check all tubing connections and verify none are loose, broken, or leaking. Model: SS4 | SS4-MBS | SS4-FMH V20240822 • Page 4 of 12...
-
Page 5: Housing Assembly
Housing Assembly HSGA-SS4: Housing assembly for SS4 - includes mechanism mounting plate, lock lever, rubber feet, locknuts and bolts Item number Description Locknut - 1/ 4 -20 - stainless steel - LN1420 nylon insert 2 HSG-SS4 Housing for SS4 3 LKLVR-SS4 Lock lever for SS4 Bolt - 1/ 4 -20 x 1 1/2 in. -
Page 6: Mechanism Assembly
Mechanism Assembly MCHA-SS4: Mechanism assembly for SS4 - includes fluid and air pumps, foot locator, manifold assembly, and mounting hardware Item number Description Bolt - 1/ 4 -20 x 1/2 in. - stainless B142012-VS steel - truss head Phillips - Vibra-Seal 1/ 4 in. - Page 7 80 deg - 4 GPH 4 P18 Plug 1/8 MPT hex head 304 SS VLVA-3W2P-SS4: Valve assembly for SS4 - 3 way 2 position - includes fittings and nut Item number Description Fixed elbow 1/8 in. MPT x 1/ 4 in. tube...
- Page 8 Mechanism Sub-assemblies PMPA-FLD-SS4-WF: Pump assembly for SS4 - fluid - includes fittings, tubing, and check valves Item number Description Clamp - plastic - for 3/8 in. od CLMPTB38-ADJ tube - adjustable 1/ 4 in. id 3/8 in. od clear hose - 2 H14CL-PV PVC - available per ft.
- Page 9 Base With Handle SS4-BSH SS4-BSH: Footwear sanitizer - airless - SS4 - includes base with handle, 2.5 gallon chemical jug with suction, and SS rack BSHA-SS4: Base and handle assembly for SS4 - includes floor base plate, handle, and hardware...
- Page 10 Manual Boot Scrubber SS4-MBS SS4-MBS: Footwear sanitizer - airless - SS4 - includes floor mount, manual boot scrubber with combo handle, 2.5 gallon chemical jug with suction, and SS rack FMPL-SS4: Floor mount plate for SS4 Item number Description Floor mount plate for SS4 -...
- Page 11 12 WMBRKT-JG Wall mount bracket - stainless steel Wall mount screw anchor - #14 x 1 1/ 4 in. - 13 WMS14A plastic - 5/16 in. drill size WMA-JG Model: SS4 | SS4-MBS | SS4-FMH V20240822 • Page 11 of 12...
-
Page 12: Additional Configurations
Additional Configurations SS4-FM: Footwear sanitizer - airless - SS4 - includes floor mount, 2.5 gallon chemical jug with suction, and SS rack Item number Description Footwear sanitizer - airless - includes 2.5 gal chemical jug with suction and SS rack...
