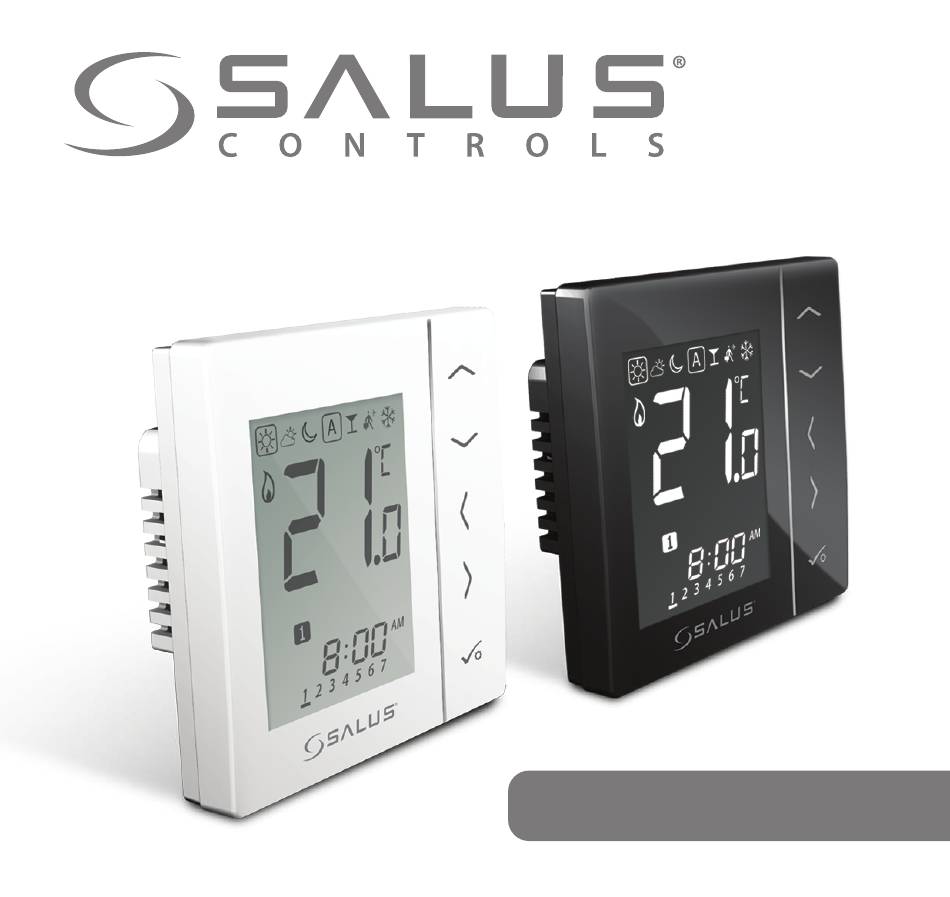

Digital Thermostat
Models: VS30W and VS30B
I N S T A L L E R / U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS30W and is the answer not in the manual?

Questions and answers

Related Manuals for Salus VS30W

Summary of Contents for Salus VS30W

  • Page 1 Digital Thermostat Models: VS30W and VS30B I N S T A L L E R / U S E R M A N U A L...
  • Page 2 Digital Thermostat Models: VS30W and VS30B I N S TA L L E R / U S E R M A N UA L VS30 1 x Installer / User manual Fixing screws VS30W and VS30B Installer / User Manual...

  • Page 3: Installation

    Always isolate the AC mains supply before following EC Directives: 2014/30/EU, 2014/35/ installing or working on any components that EU and 2011/65/EU require 230V AC 50Hz supply. We hope you enjoy this product... Safety Information VS30W and VS30B Installer Manual...
  • Page 4 See page 41. Emergency For the installer Switch off the voltage to the indivdual thermostat Please enter any parameter wring centre or complete system. changes in the installer notes section. VS30W and VS30B Installer Manual...
  • Page 5 See page 8. L N L Zone 1 SL N L Sensor Terminals S1, S2 (Optional) Example Can be used for external AIR Zone 1 or Floor sensor. - - + + Example SL N L VS30W and VS30B Installer Manual...
  • Page 6 For wall mounting, mark and mount the rear case to the wall. The VS30 is suitable for wall boxes with a centre hole distance of : 60mm Only for flush mounting boxes with horizontal fixing holes. 60mm VS30W and VS30B Installer Manual...
  • Page 7 · · Not to be positioned on exterio · · Do not install the remote senso · · Only the temperature at the po · · Not to be positioned on an exterior wall. VS30W and VS30B Installer Manual 130cm...
  • Page 8 Installation – Terminal Connections Sensor Terminal (optional) Sensor Terminal (optional) Night set back output Optional SALUS Sensor Load (Thermal Actuators) NSB for other Live 230V AC 50Hz thermostats Neutral Wiring Centre Thermal Actuator Output VS30W and VS30B Installer Manual...
  • Page 9 Power Terminals NSB (Night Set Back) Connection Sensor Terminals (if applicable) You are ready to secure the rear housing to the wall box Please use the screws provided Ensure the orientation arrow is pointing upwards. VS30W and VS30B Installer Manual...
  • Page 10 Installation – Thermostat Mounting Fit the front housing to the rear housing Ensure the pin connections are aligned Lightly press until you Align the front housing hear a positive click. at the top edge. VS30W and VS30B Installer Manual...
  • Page 11 Installation – LCD Graphics VS30W and VS30B Installer Manual...
  • Page 12 Auto On or Auto Off. For group thermostat this indicates that it is a member of a group. Party indicator: When Party mode is active. Vacation indicator: When Vacation mode is active. Frost protection indicator: Frost protection is active, not available in cooling mode (if applicable). VS30W and VS30B Installer Manual...
  • Page 13 If the set temperature is changed when in program mode, the hand will appear until the next program start time. Programs number indicator: In AUTO program mode or Temporary override is running, it means the current program running. Day indication: 1 = Monday. VS30W and VS30B Installer Manual...

  • Page 14: Installation - User Interface

    Floor sensor probe indicator: Show only when Air + Floor sensor is connected. Setting indicator: Indicates the unit is in setting mode when program setting. Indicate’s the manual mode. Keylock indicator: Shows that keys are inactive. VS30W and VS30B Installer Manual...
  • Page 15 1. OK key: Short press to confirm selection. 2. Long press to save and exit. 3. Long press to enter the user settings. Lock/Unlock. 5 SECONDS Enter Installer parameter settings. 5 SECONDS Test mode. 5 SECONDS VS30W and VS30B Installer Manual...
  • Page 16 Installation – First Power Up Software Version 2 Seconds ON first power up. Proceed to page 19 Time Setting VS30W and VS30B Installer Manual...
  • Page 17 Installation - Graphics Key Press once Press x amount of times Hold for five seconds Flashing Short press to save and Short press to back up long press to save and exit VS30W and VS30B Installer Manual...
  • Page 18 User Guide - Setting time and date VS30W and VS30B Installer Manual...
  • Page 19 User Guide - Setting time and date Hour Use left to select 12 hour and right to select 24 hour. Minutes Year Month Adjust the time using the up or down arrow key. VS30W and VS30B Installer Manual...
  • Page 20 Typically 17 Deg C for UFH or 15 Deg C for radiators Frost Temperature typically used for periods of long absence or holidays. Typically 5 Deg Your thermostat comes preset for the above temperatures. These can be adjusted. Please see page 37. VS30W and VS30B Installer Manual...
  • Page 21 Occupied Temperature. Typically 22ºC Unoccupied Temperature Typically 40ºC This avoids cooling being active when the property is unoccupied. Evening Temperature Typically 26ºC Your thermostat comes preset for the above temperatures. These can be adjusted. Please see page 37. VS30W and VS30B Installer Manual...
  • Page 22 User Guide - Default Heating Schedule .1 Monday to Friday 12.00 6.00 9.00 16.00 23.00 Saturday to Sunday 12.00 7.00 23.00 VS30W and VS30B Installer Manual...
  • Page 23 User Guide - Optional Heating Schedule .2 Monday to Friday 12.00 6.00 22.30 Saturday to Sunday 12.00 7.00 23.00 VS30W and VS30B Installer Manual...
  • Page 24 User Guide - Optional Heating Schedule .3 Monday to Friday 12.00 5.00 8.00 14.00 22.00 Saturday to Sunday 12.00 7.30 22.30 VS30W and VS30B Installer Manual...
  • Page 25 User Guide - Optional Heating Schedule .4 Monday to Friday 12.00 6.00 9.00 15.00 22.30 Saturday to Sunday 12.00 7.30 23.00 VS30W and VS30B Installer Manual...
  • Page 26 User Guide - Optional Heating Schedule .5 Monday to Friday 12.00 6.00 10.00 16.00 23.00 Saturday to Sunday 12.00 7.30 23.30 VS30W and VS30B Installer Manual...
  • Page 27 User Guide - Default Cooling Schedule .1 Monday to Friday 12.00 6.00 9.00 16.00 23.00 Saturday to Sunday 12.00 7.00 23.00 VS30W and VS30B Installer Manual...
  • Page 28 User Guide - Optional Cooling Schedule .2 Monday to Friday 12.00 6.00 22.30 Saturday to Sunday 12.00 7.00 23.00 VS30W and VS30B Installer Manual...
  • Page 29 User Guide - Optional Cooling Schedule .3 Monday to Friday 12.00 5.00 8.00 14.00 22.00 Saturday to Sunday 12.00 7.30 22.30 VS30W and VS30B Installer Manual...
  • Page 30 User Guide - Optional Cooling Schedule .4 Monday to Friday 12.00 6.00 9.00 15.00 22.30 Saturday to Sunday 12.00 7.30 23.00 VS30W and VS30B Installer Manual...
  • Page 31 User Guide - Optional Cooling Schedule .5 Monday to Friday 12.00 6.00 10.00 16.00 23.00 Saturday to Sunday 12.00 7.30 23.30 VS30W and VS30B Installer Manual...
  • Page 32 User Guide – Setting the Temperature Schedule Use right and left to select the day of the programs. 7 Days Individual VS30W and VS30B Installer Manual...
  • Page 33 User Guide – Setting the Temperature Schedule Adjust the time using the up or down arrow key. Use right and left to select the Hi/Mid or low temp. VS30W and VS30B Installer Manual...
  • Page 34 If you require a 5th or 6th program enter a time and select your temperature To remove a program out set the time to --:--. When you set the temperature, the schedule will respond to those temperatures. See page 37 on how to change VS30W and VS30B Installer Manual...
  • Page 35 Temporary override allows you to increase the temperature or decrease it to the desired setting until it reverts back on the next program time. Use the up or down arrow key to adjust the temperature to the setting you desire. VS30W and VS30B Installer Manual...
  • Page 36 User Guide - Temporary Override Confirm the temporary set temperature. To cancel temporary override press See below. VS30W and VS30B Installer Manual...
  • Page 37 Use the up or down arrow key to view your set temperature. See page 35. To cancel permanent override select Repeat for if required See below. To adjust your permanent override temperature follow the steps on page 35. VS30W and VS30B Installer Manual...
  • Page 38 You select up to 9hr 50min. Use the up arrow to select the hr/min. Press tick to confirm and it will start to count down . VS30W and VS30B Installer Manual...
  • Page 39 User Guide - Holiday Mode Use the right arrow to select the holiday mode. Use the up arrow to select how many days to be off for. Press tick to confirm and it will start the holiday count down. VS30W and VS30B Installer Manual...
  • Page 40 User Guide - Frost Protection Use the right arrow to select the frost mode. Use the up arrow to select the frost protection temperature. Press tick to confirm the temperature that it has been set to. VS30W and VS30B Installer Manual...
  • Page 41 Installation - Entering Device Menu Press all three buttons If you need to simultaneously. change device parameters follow the steps below. Must only be entered by the installer. This is the first screen of the device menu. VS30W and VS30B Installer Manual...
  • Page 42 Internal temp is measured by stat Cooling Control On-Off 0.5 Deg C +/- 0.25 Deg C On-Off 1.0 Deg C +/- 0.5 Deg C Actuator type NO Normally Open NC Normally Closed Valve protection Disable Enable VS30W and VS30B Installer Manual...
  • Page 43 6-45 Deg C when temp is reached for 10 Deg C floor protection Floor sensor Limit Output relay will be switched off for cooling 6-45 Deg C when temp is reached for 6 Deg C floor protection VS30W and VS30B Installer Manual...

  • Page 44: Error Code

    Enter Number 47 Press all three buttons and press simultaneously. Must only be entered by the installer. ERROR DESCRIPTION ERROR CODE Err02 Maximum/Minimum Floor Temp Reached Err03 Broken Floor Sensor Err04 Floor Sensor Short Circuit VS30W and VS30B Installer Manual...
  • Page 45 Temperature Scale 5 to 35ºC, tolerance 0.5ºC Heat/Cool Local changeover Sensor Air or floor protection. Device Parameters See page 42 for full list of functions Operating Temperature 0 to 50ºC Storage Temperature -20 to 60ºC VS30W and VS30B Installer Manual...

  • Page 46: Installation Notes

    Installation - Notes VS30W and VS30B Installer Manual...

  • Page 47: Warranty

    Warranty SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product.
  • Page 48 SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Issue Date: April 2014...

This manual is also suitable for:

Vs30b
