Delta Children W170846-100 Manual

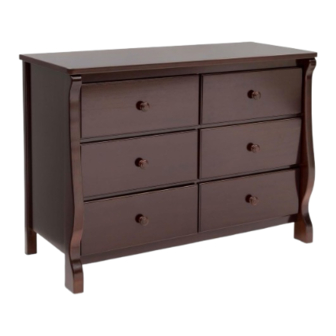

Dresser
Hide thumbs

Advertisement

Table of Contents

Read all instructions
before assembly and use.
KEEP INSTRUCTIONS FOR
FUTURE USE.
EN
Style #:
___________
Lot:
___________
REV
Date:
___________
Before contacting Delta Consumer
Experience Center please ensure this
information matches the information
found on the label on the Back Panel.
To Make Assembly Even
Easier Watch Video Here!
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly,
keep out of reach of children until assembly is complete.
This product is not intended for institutional or commercial use.
Dresser
For Questions or
to Contact Us:
DeltaChildren.com/Help
If unable to access website, please email
wcs@DeltaChildren.com
Expect longer response times via email.
May 09, 2023, 43882, R2
