Eaton TRIPP LITE U442-DOCK15-S Owner's Manual

Eaton TRIPP LITE U442-DOCK15-S Owner's Manual

Usb-c dock removable clip for laptops and tablets
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

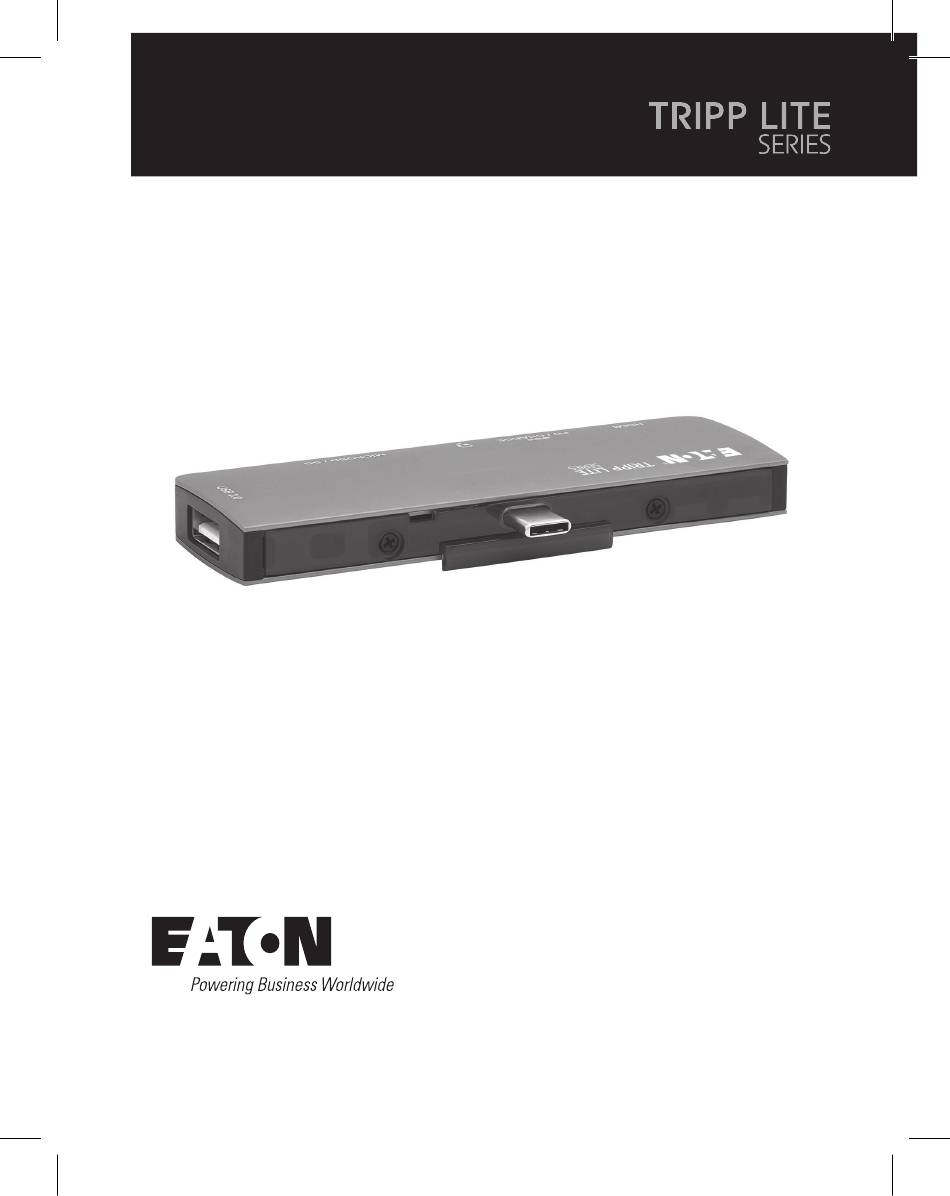

Owner's Manual
USB-C Dock
Removable Clip for Laptops
and Tablets
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
Model:
U442-DOCK15-S
USB Type-C
and USB-C
®
are registered trade-
marks of USB Imple-
menters Forum.
Purchased product
may differ from image.
®
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE U442-DOCK15-S and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE U442-DOCK15-S

Summary of Contents for Eaton TRIPP LITE U442-DOCK15-S

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...

  • Page 2: Product Features

    Product Features • On-the-go docking station connects to a USB-C port to give your device HDMI video, audio, data and memory card ports. • USB-C Power Delivery (PD) 3.0 port provides up to 60W of power to your USB-C enabled device. •...

  • Page 3: Product Overview

    Product Overview 1 HDMI Port: Supports resolutions up to 4K x 2K (3840 x 2160) @ 30 Hz 2 USB-C Port: Supports PD 3.0 Charging up to 60W (20V/3A) 3 3.5 mm Audio Port: Supports audio output and microphone input 4 Micro SD Card Slot 5 SD Card Slot 6 LED: Illuminates white when power is supplied...

  • Page 4: Installation

    Installation 1 Connect the USB 3.2 Gen 1 Type-C male connector to your USB-C enabled device. Note: Insert until the clip is fully secured to your device or until a click is heard. 2 Using an HDMI cable, such as P569-Series (sold separately), connect the HDMI port to your monitor, TV or projector.

  • Page 5: Specifications

    Specifications: Input Connector USB-C (x1) USB 3.2 Gen 1 Type-C (Male) Output Connectors USB-A (x1) USB 2.0 USB-C (x1) USB-C PD Charging Only HDMI HDMI Audio 3.5 mm Memory Cards (x1) SD, (x1) Micro SD Environmental Operating Temperature 32°F to 122°F (0°C to 50°C) Operating Humidity 10 to 90% RH, Non-Condensing Storage Temperature...

  • Page 6: Warranty

    (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
  • Page 7 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.
  • Page 8 Eaton has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
