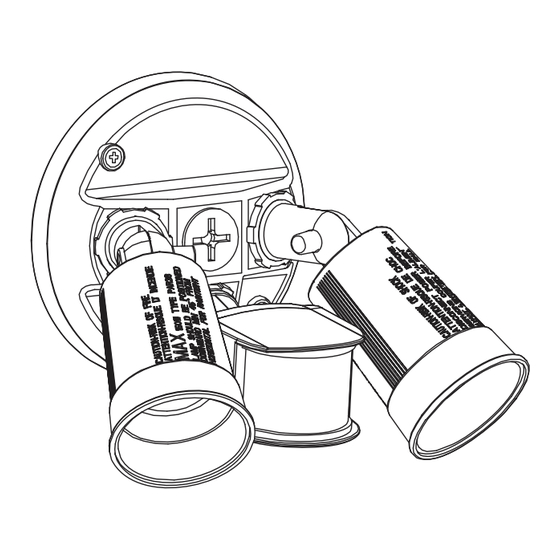

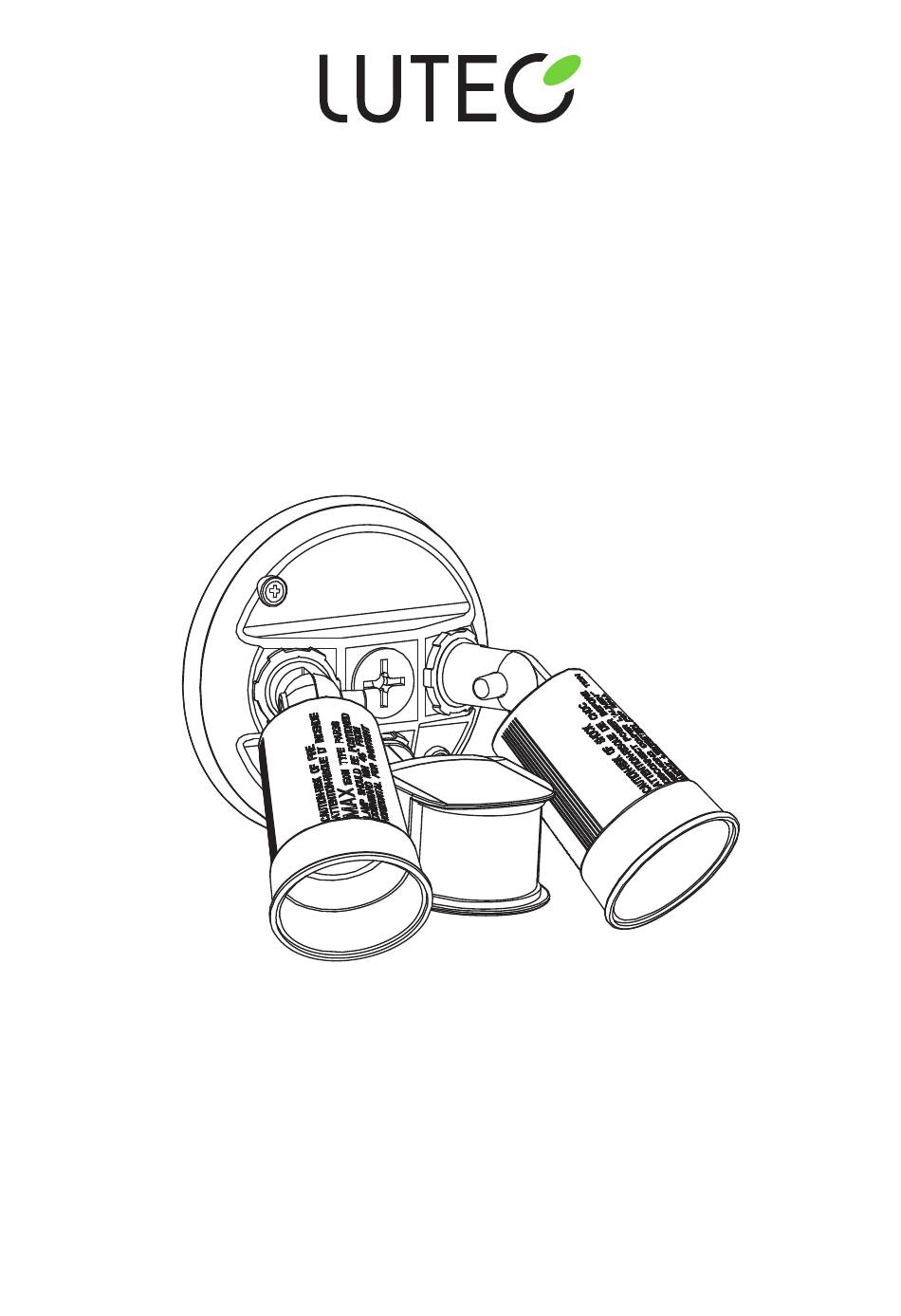

- Page 1 MOTION-ACTIVATED FLOODLIGHT Owners Manual MODEL #7636003331 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fixture HARDWARE CONTENTS (not shown actual size) Wire Nut Crossbar Mounting Screw Screw Qty. 2 Qty. 1 Qty. 2 Qty. 2... -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING: • Consult a qualified electrician if you are not certain about the installation process. Always install wiring connections in accordance with local code, ordinances and the National Electric Code. •... - Page 4 2. Attach the crossbar (CC) to the junction box (not included) using the two screws (AA). This fixture can also be installed on the ceiling. 3. Connect the ground wire from the junction box to the ground screw on the crossbar (CC). Connect the white wire from the junction box to the white wire from the light fixture (A) by twisting a wire nut (BB) onto the bare ends of...
- Page 5 5. Install the two bulbs (not included). 6. After mounting the fixture, apply silicone caulking compound completely around the perimeter of the cover plate where the back of the cover plate meets the mounting surface. Silicone caulking prevents water from seeping into the junction box.
-
Page 6: Care And Maintenance
8. Turn ON power to work area at main circuit breaker or fuse box. OPERATING INSTRUCTIONS MODE TIME SETTING DESCRIPTION The sensor will detect movement and the light will activate regardless of time of day. After movement has stopped or left TEST TEST the coverage area, the light will remain on for about 5 seconds,... -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. No power to light. 1. Check that the circuit is on, The light will not go on. wall switch is on, and there is power to light fixture. 2. There may be a poor 2. -
Page 8: Year Limited Warranty
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. LUTEC USA LLC: 149B Houston Rd Troutman NC 28166 Ningbo UTEC Electric Co.,LTD CN8, Far East Industry Park, Yuyao, China www.lutec.com...
