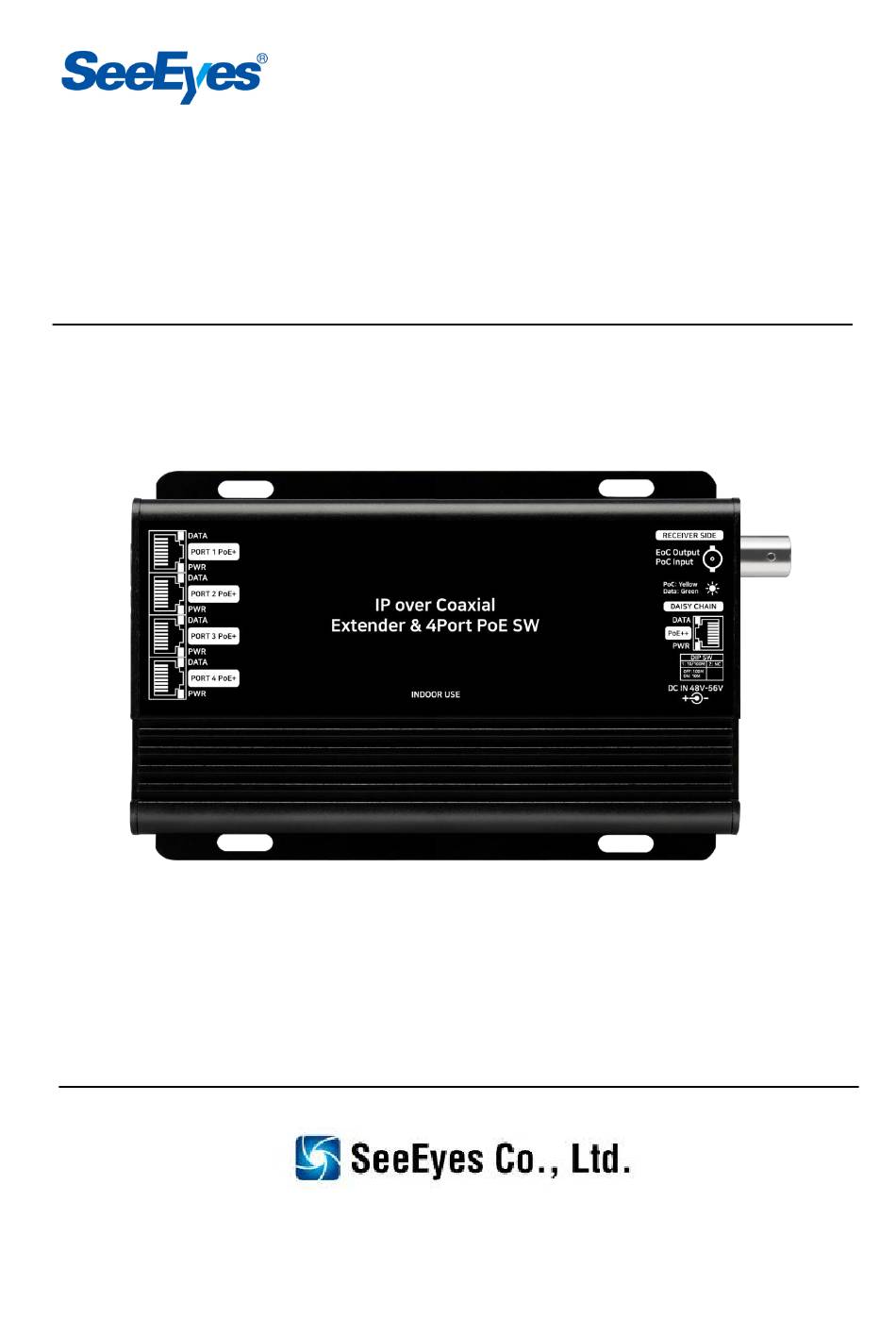

- Page 1 Release Version 1.0 Hi Power 4-ch IP Transmitter with built-in PoE HUB SC-IPT3004P User Guide SC-IPT3004P...
- Page 2 Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is intended to protect user safety and prevent property damage. Please read this user guide carefully and use the device properly Warning (Failure to adhere to any of the following guidelines could result in serious injury or death for someone.) ■...
- Page 3 Release Version 1.0 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration.
- Page 4 Release Version 1.0 1. Introduction 1-1. Overview SC-IPT3004P is a hybrid network data transmitter with built-in 4CH PoE HUB and EoC(Ethernet Over Coax.) function. This transmission device transmits Ethernet data from four IP cameras over only one coaxial cable and receives operating power from receiver such as SC-IPR07HP, therefore, it shortens construction period and reduce installation cost.
- Page 5 ② RX SIDE : SC-IPR07P/SC-IPR07HP connection port. PoC(Power over Coax.) supported (when connecting SC-IPR07P/ SC-IPR07HP) ③ EoC Status LED : SC-IPT3004P Power LED, EoC Data LED ④ NVR SIDE : NVR connection port. ⑤ Bandwidth Select Switch : 100Mbps, 10Mbps setting supported...
- Page 6 Release Version 1.0 <POWER, LINK/ACT Status Display LED> LED Type Indicator Color State Description EoC Status Operation Power Yellow Operation power OK EoC Data Green Flashing EoC Data Transmitting & Receiving OK PoE Output Yellow PoE Output OK Cam Side 1X4 RJ45 Ethernet Data Green...
-
Page 7: Connection Diagrams
Release Version 1.0 5. Connection Diagrams 5-1. In case of using as a 4CH PoE HUB 5-2. In case of using with EoC(Ethernet over Coax.) device (SC-IPR07HP) - Page 8 Release Version 1.0 5-3. In case of using 8CH transmission configuration 5-4. In case of using PoE Injector (PoE++)
-
Page 9: Transmission Distance
Release Version 1.0 ※ You may need to change the adapter depending on the camera power consumption. ※ Please configure general communication network (Internet/In-company, house) separated to CCTV network. ※ Please be noted that if the bandwidth exceeds 10Mbps after setting the switch to 10Mbps, a problem may occur with the video. - Page 10 Release Version 1.0 < PoE Camera Power Consumption Table Based on EoC Receiver > PoE Camera Power Consumption (Max. Power Output) Transmission Disance PoE Camera PoE Camera PoE Camera PoE Camera Power Source CAM Side Rx (5C-HFBT) 100m 11.5W 11.5W 11.5W 11.5W 200m...
- Page 11 Release Version 1.0 PoE Camera Power Consumption (Max. Power Output) Power Transmission Disance PoE Camera PoE Camera PoE Camera PoE Camera Source CAM Side Rx (5C-FB) 100m 200m 11.9W 11.9W 11.9W 11.9W 100m 300m 10.5W 10.5W 10.5W 10.5W 400m 8.4W 8.4W 8.4W 8.4W...
-
Page 12: Specifications
Release Version 1.0 7. Specifications Model No. SC-IPT3004P DC Power DC 48V or DC 56V Adaptor Power PoE Power PoE IEEE 802.3af/at/bt, Endspan / Midspan (Mode A / Mode B) Input DC 48~56V Adapter or PoE (DC Adapter power priority) -
Page 13: Troubleshooting Method
Release Version 1.0 8. Troubleshooting Method Condition Check Method • Check the power cable connection state. Power is not • Check if the exclusive adapter is used. • Check the PoE switch hub connection state. supplied. • Check the CABLE PIN configuration state. •... -
Page 14: Warranty Certificate
Release Version 1.0 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 15 Release Version 1.0 MEMO.
- Page 16 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
