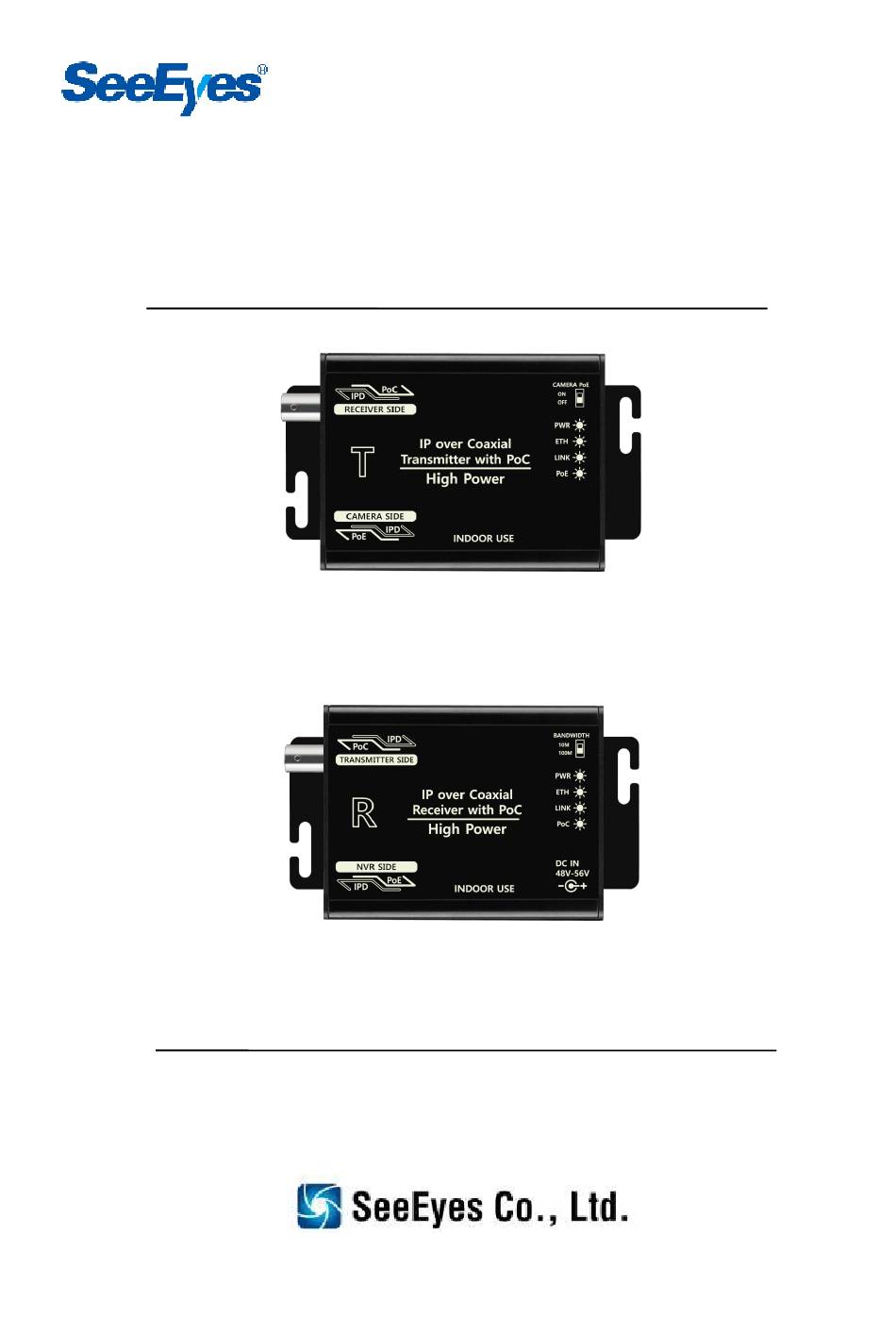

- Page 1 Release Version 1.0 High Power IP Over Coaxial Transmission Solution SC-IPC601(SC-IPC601T, SC-IPC601R) User Manual SC-IPC601T (1 channel Transmitter) SC-IPC601R (1 channel Receiver)
- Page 2 Release Version 1.0 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) Be sure to install the product after unplugging power cord.
- Page 3 Release Version 1.0 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Proper ambient temperature and humidity are recommended. - Avoid extremely high temperatures(over 50°C) or low(below -10°C), and humid conditions. ■...
-
Page 4: Product Components
Release Version 1.0 1. Introduction of item 1-1. Summary The 1-channel power overlapping IP transmission set consists of the transmitter SC-IPC601T and the receiver SC-IPC601R. This is a product developed as a high power support type product of SC-IPC07P among our company's IP coaxial transmission device series. -
Page 5: Name And Function Of Each Part
Release Version 1.0 3. Name and function of each part 3-1. SC-IPC601T(Transmitter) ① ③ ② ④ ① CAMERA PoE Switch: IP PoE camera power supply setting switch. ※ When connecting an IP PoE camera, set the CAMERA PoE switch to ON. ※... - Page 6 Release Version 1.0 3-2. SC-IPC601R(Receiver) ⑤ ④ ③ ④ ④ ① ② ① NVR SIDE: NVR or PoE hub connection terminal. ② DC 48-56V IN: DC adapter (48V or 56V) power input terminal. ③ TRANSMITTER SIDE: Transmitter connection terminal and video input terminal. ④...
- Page 7 Release Version 1.0 4. Product configuration example 4-1. When installing IP PoE camera (PoE switch on transmitter) < Product installation guide > ① Set the CAMERA PoE switch of the SC-IPC601T (transmitter) to ON (PoE LED lights up). ※ When connecting a camera that does not support PoE, set the transmitter's CAMERA PoE switch to OFF. ②...
-
Page 8: Specifications
Release Version 1.0 ※ Using a LAN cable extension gender (coupler) causes signal attenuation. The use of multiple extension gender connections is not recommended. 6. Specifications MODEL SC-IPC601T Power input PoC (Power over Coaxial from SC-IPC601R) Power output Midspan PoE support (Type B Only, PoE SW On/Off settings) Bandwidth 10/100Mbps RECEIVER SIDE... - Page 9 Release Version 1.0 7. Transmission distance per coaxial cable type DC 56V/1.16A 5C-HFBT 5C-2V 3C-2V RG-58 RG-59 20m(60ft) 100Mbps/59W 100Mbps/60W 100Mbps/57W 100Mbps/59W 100Mbps/58W 100m(300ft) 100Mbps/52W 100Mbps/54W 100Mbps/46W 100Mbps/53W 100Mbps/53W 200m(600ft) 100Mbps/45W 100Mbps/48W 100Mbps/31W 100Mbps/43W 100Mbps/41W 300m(900ft) 100Mbps/35W 100Mbps/41W 100Mbps/21W 100Mbps/32W 100Mbps/31W 400m 100Mbps/27W...
-
Page 10: Troubleshooting
Release Version 1.0 8. Troubleshooting Symptoms Check points <transmitter> • Check that the receiver's PoC LED is turned on and the transmitter's PWR LED is turned on. • Check the coaxial cable connection. No Power <receiver> • Check if the PWR LED operates normally. •... -
Page 11: Warranty Certificate
Release Version 1.0 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service Model No. Serial No. Date of purchase Place of purchase Name Purchaser Address Name... - Page 12 Release Version 1.0 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5831/5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
