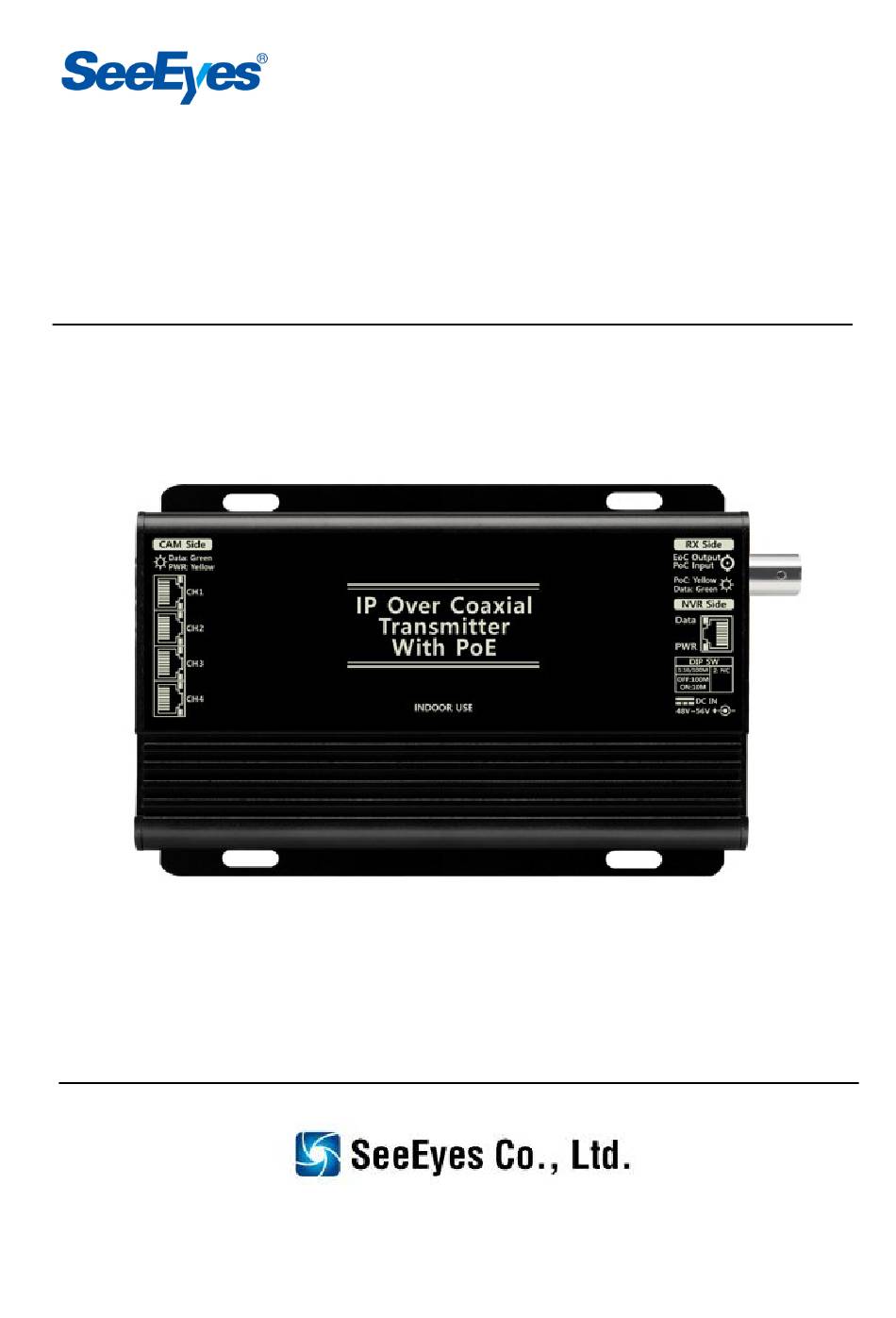

- Page 1 Release Version 1.1 4-ch IP Transmitter with built-in PoE HUB SC-IPT1204P User Guide SC-IPT1204P...
- Page 2 Release Version 1.1 Precaution and Safety Guidelines The content of this guideline is intended to protect user safety and prevent property damage. Please read this user guide carefully and use the device properly Warning (Failure to adhere to any of the following guidelines could result in serious injury or death for someone.) ■...
- Page 3 Release Version 1.1 Caution (If you do not keep any of the below guidelines, you may get injured or suffer property loss.) ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration.
- Page 4 Release Version 1.1 1. Introduction 1-1. Overview SC-IPT1204P is a hybrid network data transmitter with built-in 4CH PoE HUB and EoC(Ethernet Over Coax.) function. This transmission device transmits Ethernet data from four IP cameras over only one coaxial cable and receives operating power from receiver such as SC-IPR07P or SC-IPR0708H, therefore, it shortens construction period and reduce installation cost.
- Page 5 Release Version 1.1 3. Product Parts and Functions ② ③ ① ④ ⑤ ⑥ ① CAMERA SIDE : IP camera connection port. PoE Type A supported. (IEEE802.3 af/at) - Port to supply power to camera with PoE or receive camera Data. ②...
- Page 6 Release Version 1.1 <POWER, LINK/ACT Status Display LED> LED Type Indicator Color State Description EoC Status Operation Power Yellow Operation power OK EoC Data Green Flashing EoC Data Transmitting & Receiving OK PoE Output Yellow PoE Output OK Cam Side 1X4 RJ45 Ethernet Data Green...
-
Page 7: Connection Diagrams
Release Version 1.1 5. Connection Diagrams 5-1. In case of using as a 4CH PoE HUB 5-2. In case of using with EoC(Ethernet over Coax.) device (SC-IPR07P) RG-6... - Page 8 Release Version 1.1 5-3. In case of using 8CH transmission configuration RG-6 ※ You may need to change the adapter depending on the camera power consumption. ※ Please configure general communication network (Internet/In-company, house) separated to CCTV network. ※ Please be noted that if the bandwidth exceeds 10Mbps after setting the switch to 10Mbps, a problem may occur with the video.
-
Page 9: Troubleshooting Method
Release Version 1.1 6. Trouble Shooting Method Condition Check Method • Check the power cable connection state. Power is not • Check if the exclusive adapter is used. supplied. • Check the PoE switch hub connection state. • Check the CABLE PIN configuration state. •... -
Page 10: Specifications
Release Version 1.1 7. Specifications Model No. SC-IPT1204P DC Power DC 48V or DC 56V Adapter Power Input PoE Power PoE IEEE 802.3af / 802.3at, Endspan / Midspan (Mode A / Mode B) PoE Output CAMERA PORT Max 30W, Standard PoE, IEEE802.3 af/at Mode A... -
Page 11: Warranty Certificate
Release Version 1.1 8. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 12 Release Version 1.1 SeeEyes Co., Ltd #503~509, 511~512, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
