Futek IHH500 Manual

APPLICATIONS
• Machine Press
• Arbor Press
ADVANTAGES
• Extends Equipment Life Expectancy
• Enhances Productivity
• Clean Setup
• Easy Connection
• Plug & Play System
• Portability & Mobility
IHH500 CAPABILITIES
• Bridge Resistance Measurement
• 21k Data Points
• Track/Hold Keypad
• Peak/Valley Keypad
• Tare/Gross Keypad
• Reset Keypad
• Shunt Keypad
• User Friendly Navigation Menu
Sensor Solution Source
Load · Torque · Pressure · Multi-Axis · Calibration · Instruments · Software
www.futek.com
The load verification package is an essential tool to help optimize
machine performance and decrease defectives in production by
providing an accurate load verification system.
The IHH500 provides the end to time consuming wiring guides,
countless stray wires, and noisy amplifiers. The IHH500 comes with a
cable for sensor mating cable, a USB cable, and a charging cable. This
results in data acquisitions on field and data analysis back at the lab.
Provides a ready to go system with a prewired, five point system
calibration enabled solution to ease setup and disregard messy wiring.
By attaching the USB cable and plugging it in a computer, the IHH500
can also pair with the SENSIT software's remote control feature, allowing
the to control the device remotely.

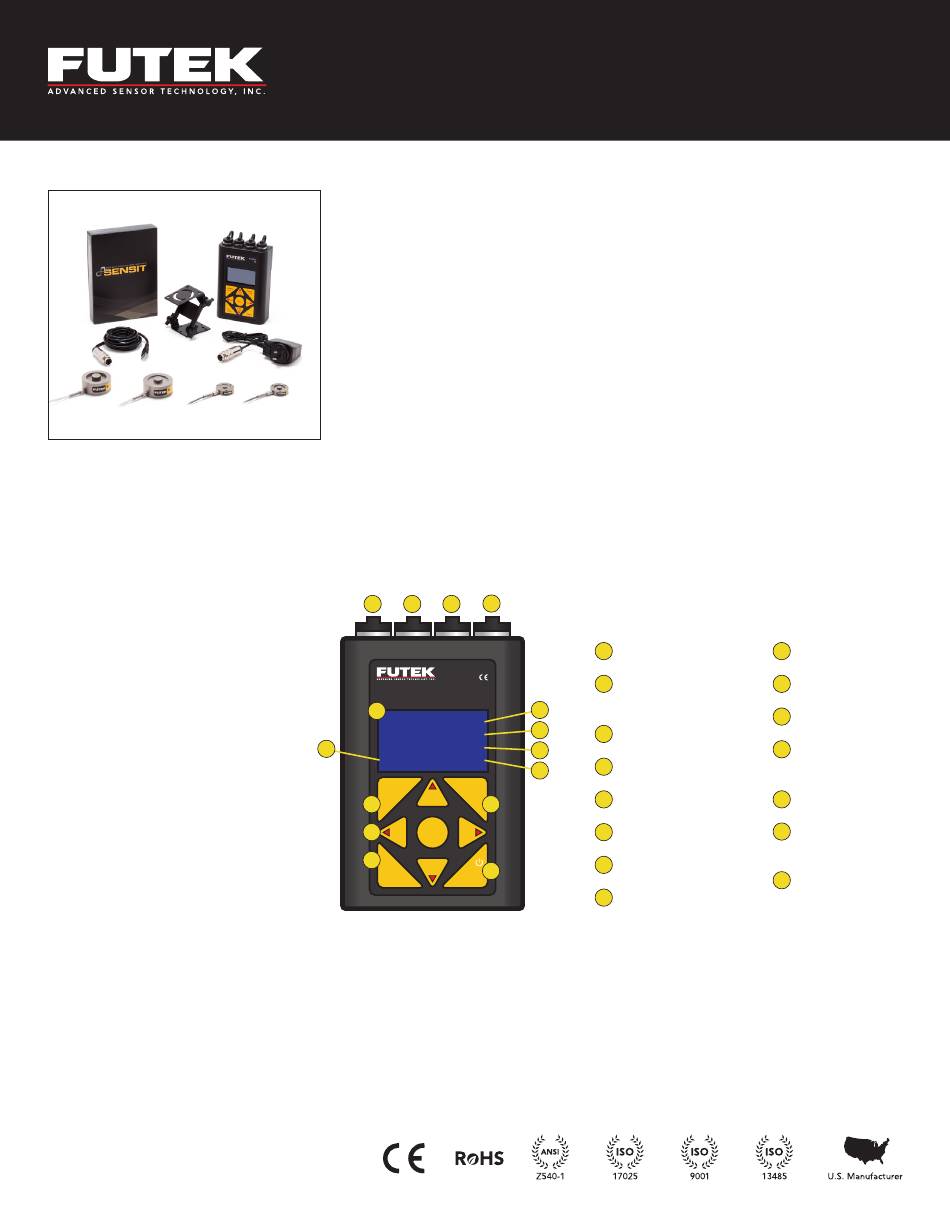

Display Features
4
1 2 3
IHH500
5
+2.00001 Peak
+2.00000 mV/V
6 +1.99999 Valley
01 Gross 5 SPS
Battery Display
Enter Back
Tare
11 12
Gross
13
Reset Menu Unit
14
Track
15
Hold
Exit
Shunt Power
Load Verification Package
1
Power Connector
2
USB Connector
(Compatible with USB 2.0 Only)
7
8
3 Output Connector
9
4
Sensor Connector
10
5 16×4 Character LCD
6 Active Channel Number
7 Peak Value
8
Tracking
MODEL IHH500
9
Valley Value
10
Sampling Rate
11
Battery Indicator
12
Larger Font
Display Options
13 Peak/Valley Reset
14
Shunt Calibration
Verification
15
Power Key
