Eaton TRIPP LITE Series Owner's Manual

Eaton TRIPP LITE Series Owner's Manual

Thunderbolt 3 dual-monitor docking station
Hide thumbs Also See for TRIPP LITE Series:

Advertisement

Table of Contents

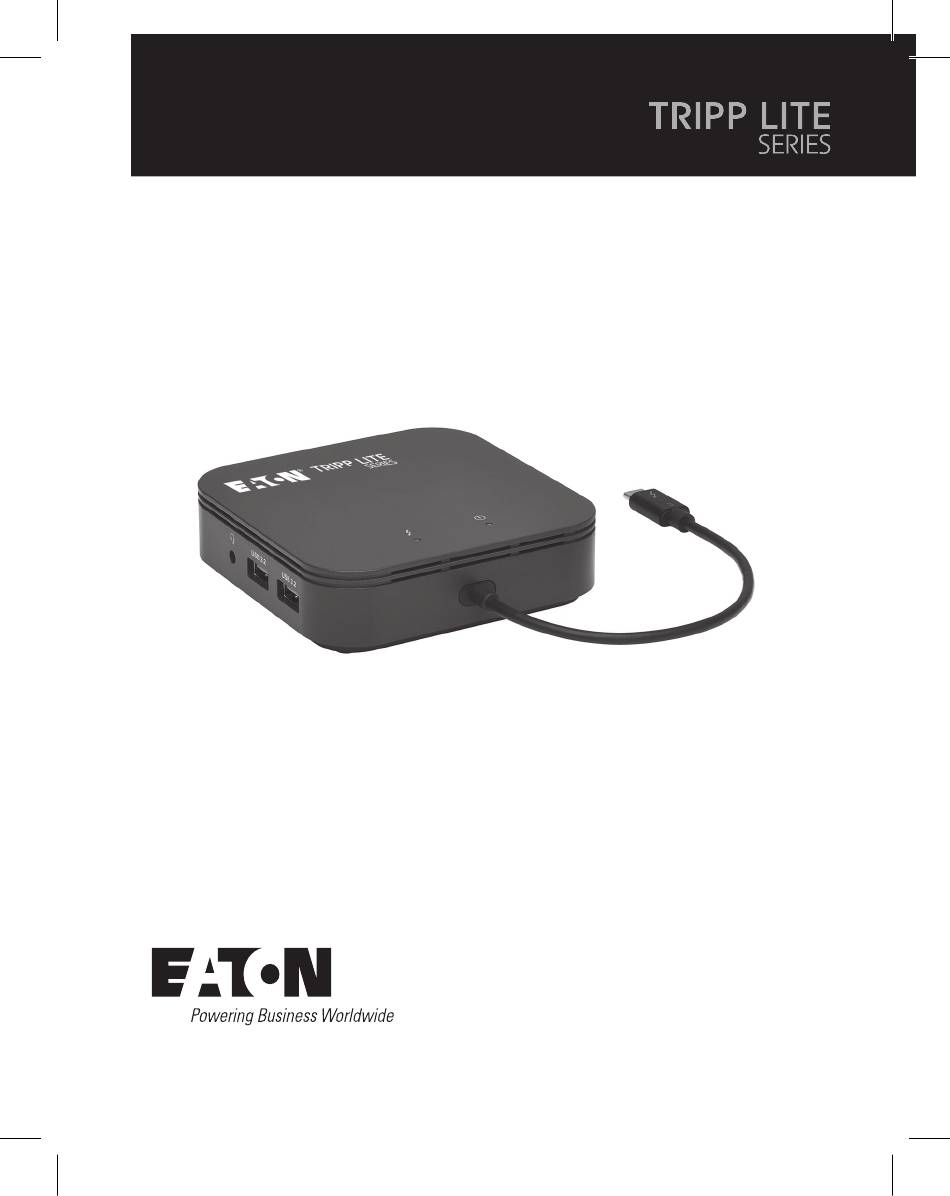

Owner's Manual
Thunderbolt 3 Dual-Monitor
Docking Station
8K DisplayPort, 4K HDMI, USB-A
Hub Ports, 3.5 mm Audio,
Gigabit Ethernet and 60W PD
3.0 Charging
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:
Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
Model:
MTB3-DOCK-04
Purchased product
may differ from image.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIPP LITE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton TRIPP LITE Series

Summary of Contents for Eaton TRIPP LITE Series

  • Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...

  • Page 2: Package Contents

    Package Contents • MTB3-DOCK-04 • Owner’s Manual Optional Accessories • P568-Series High-Speed HDMI Cables • U428-Series USB 3.1 A/C Cables • N201-Series High-Speed Cat6 Gigabit Ethernet Cables • P580-Series DisplayPort Cables Product Features • Thunderbolt 3 input supports data transfer rates up to 40 Gbps when used with a Thunderbolt 3-enabled host computer Note: Product is compatible only with a Thunderbolt 3 port and will not work with a standard USB-C port...

  • Page 3: System Requirements

    Product Features • Transmits 4K video @ 60 Hz from both ports simultaneously to two displays Note: See Multi-Monitor Requirements for exact product features • RJ45 port supports 10/100/1000 Mbps Gigabit Ethernet speeds to connect to a wired network • Dual USB 3.2 Gen 2 ports individually support 10 Gbps data transfer speeds for connecting USB-A peripherals •...

  • Page 4: Product Overview

    Product Overview Front 1 DisplayPort output USB 3.2 USB 3.2 2 HDMI output 3 RJ45 Gigabit Ethernet jack Rear USB 3.2 USB 3.2 PD CHARGE 4 3.5 mm audio jack 5 USB 3.2 Gen 2 Type-A ports PD CHARGE...
  • Page 5 USB 3.2 USB 3.2 Product Overview Side PD CHARGE 6 60W (20V 3A) PD 3.0 Charging port Note: MTB3-DOCK-04 itself consumes 15W. The remaining balance of power will be provided to the connected host.

  • Page 6: Installation

    Installation Notes: • Docking station must be connected to a dedicated Thunderbolt 3 port to function. It will not function with a standard USB-C port. • Supports the connection of two monitors at the same time: one via DisplayPort and a second via HDMI. See Multi-Monitor Requirements section for details.
  • Page 7 Installation 5. Connect up to two USB peripherals to the USB-A ports. 6. Connect the RJ45 jack to a wired Gigabit Ethernet network with a user-supplied UTP patch cable.
  • Page 8 Multi-Monitor Requirements The MTB3-DOCK-04 supports the connection of a DisplayPort monitor and an HDMI monitor simultaneously for dual 4K @ 60 Hz video via Thunderbolt 3 technology. The following limitations must be taken into account when connecting multiple monitors at the same time: Does the Source Computer Support DisplayPort 1.4 Alternate Mode? When connecting to a Thunderbolt 3 source that supports...

  • Page 9: Specifications

    Specifications Input Connector Thunderbolt Thunderbolt 3 Type-C (Male) Output Connectors DisplayPort (Single) DisplayPort (Female) HDMI (Single) HDMI (Female) (x2) USB 3.2 Gen 2 Type-A (Female) USB-C PD 3.0 Charging up to 20V 3A PD Charging (60W). Requires at least 75W power source to achieve 60W.
  • Page 10 Specifications USB Functionality Self-Powered Mode means the PD Charging port is being used by the host USB-A 3.2 Gen 2 computer and the docking station is (Self-Powered Mode) powered via PD pass-through. Both USB-A ports support USB 3.2 Gen 2 speeds up to 10 Gbps.

  • Page 11: Warranty

    Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
  • Page 12 Eaton 1000 Eaton Boulevard Cleveland, OH 44122 933CC0 United States Eaton.com © 2023 Eaton Eaton is a registered All Rights Reserved trademark. Publication No. 23-08-366 / 93-3CC0_RevD All trademarks are property September 2023 of their respective owners.
