Eaton TRIPP LITE Series Owner's Manual

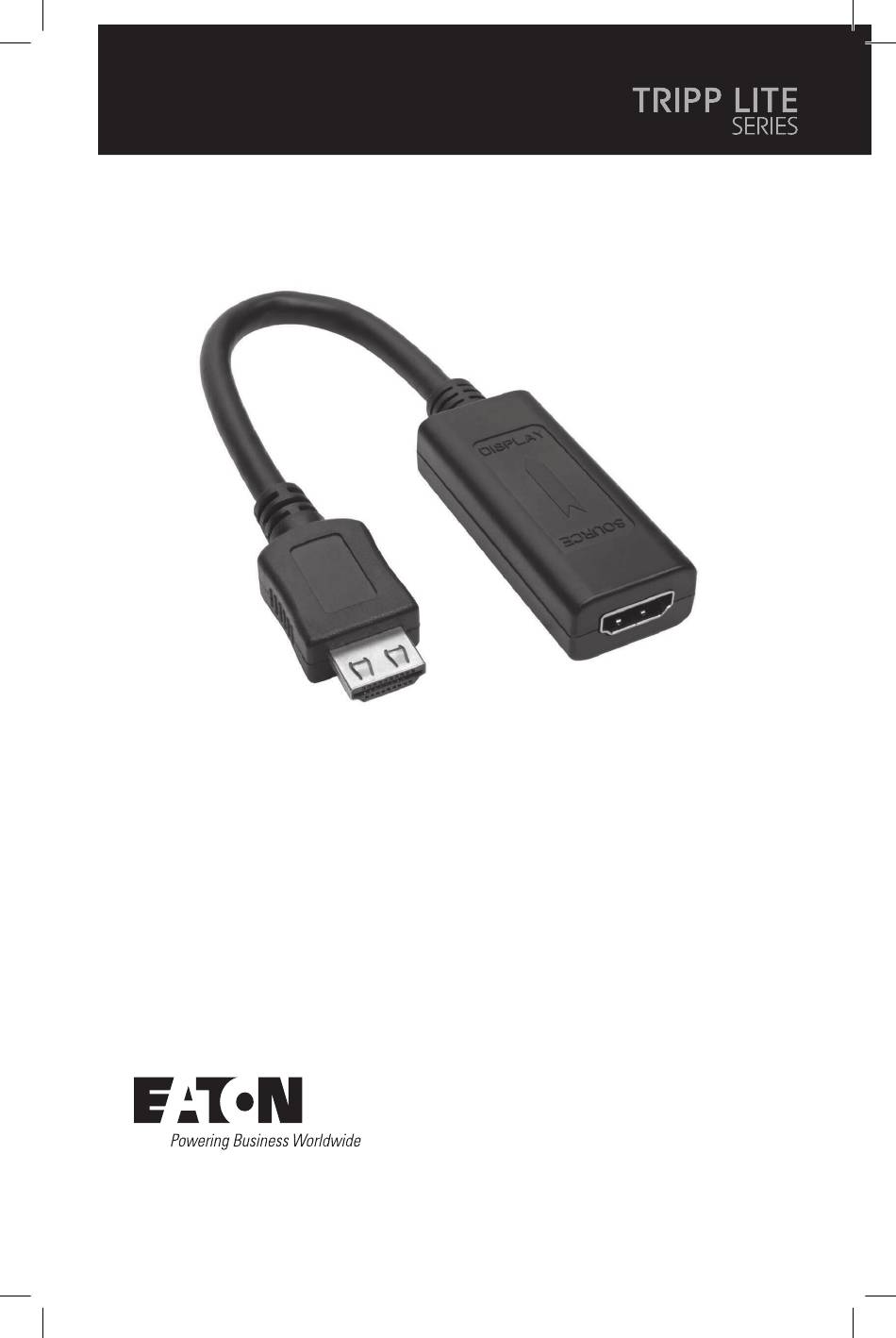

Hdmi active extender

Hide thumbs Also See for TRIPP LITE Series:

Download this manual

Owner's Manual

HDMI Active Extender

Este manual está disponible en español en la página de Eaton:

Tripplite.Eaton.com/support

Ce manuel est disponible en français sur le site Web de Eaton :

Tripplite.Eaton.com/support

Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar:

Tripplite.Eaton.com/support

Questo manuale è disponibile in italiano sul sito web di Eaton:

Tripplite.Eaton.com/support

Model:

B123-001-60

Purchased product

may differ from image.

Need help?

Do you have a question about the TRIPP LITE Series and is the answer not in the manual?

Page 1 Este manual está disponible en español en la página de Eaton: Tripplite.Eaton.com/support Ce manuel est disponible en français sur le site Web de Eaton : Tripplite.Eaton.com/support Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website verfügbar: Tripplite.Eaton.com/support...
Page 2 Package Contents • B123-001-60 HDMI Active Extender • Owner’s Manual Product Features • Extend a 1080p @ 60 Hz signal up to 125 ft. (38 m) from the source • Supports DTS-HD, Dolby TrueHD and 7.1 channel surround sound audio •...
Page 3 Installation Notes: 1. Test to make sure the entire installation works properly before pulling cables through ceilings/walls. 2. The B123-001-60 has been designed for use with P568-Series HDMI cables. To ensure maximum distance and performance, it is recommended that you use P568-Series HDMI cabling.
Page 4 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications to this equipment not expressly approved by Eaton could void the user’s authority to operate this equipment.

B123-001-60
