Vista Landscape Series Installation Instructions

INSTALLATION INSTRUCTIONS
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes. Failure to do so will void the warranty and
may result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around lamp can become hot enough to blister
hands. Particular care should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN 6".
WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION CORDS
ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
NOTE: Save these instructions for future reference.
RAIL AND DECK MOUNTING:
1. To prevent electrical shock, disconnect transformer from electrical supply before installation or service.
2. Loosen mounting plate screws and remove mounting plate along with inserts from top of the luminaire.
3. Choose preferred location on rail to mount the luminaire. (You may use the mounting holes on the removed mounting plate as a template to drill screw
location on rail.)
(Fig. B)
4. Route wire through rail or deck to main power supply cable.
5. Strip two leads from luminaire pigtail wire using two silicone filled safety connectors (provided), connect leads from luminaire to main supply cable leads.
NOTE: Luminaries are supplied with 10 feet of 18-2 cable pigtail for secure connection to main supply cable.
6. Provide power to luminaire and check for proper operation.
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478) • FAX: (888) 670-VISTA (8478) • email@vistapro.com • www.vistapro.com
INSERT
FIXTURE

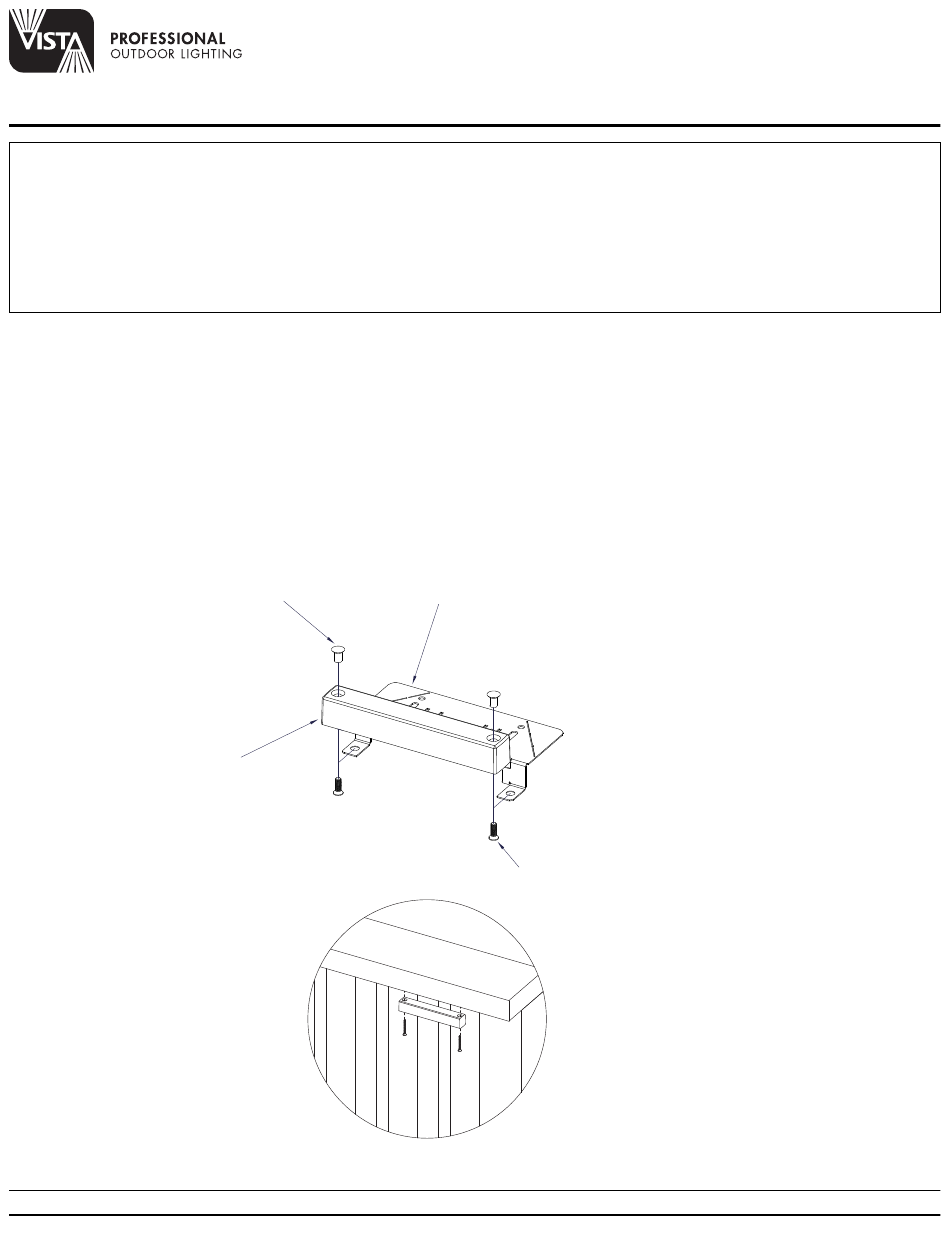

Fig. A
Fig. B
MOUNTING PLATE
MOUNTING SCREWS
4270

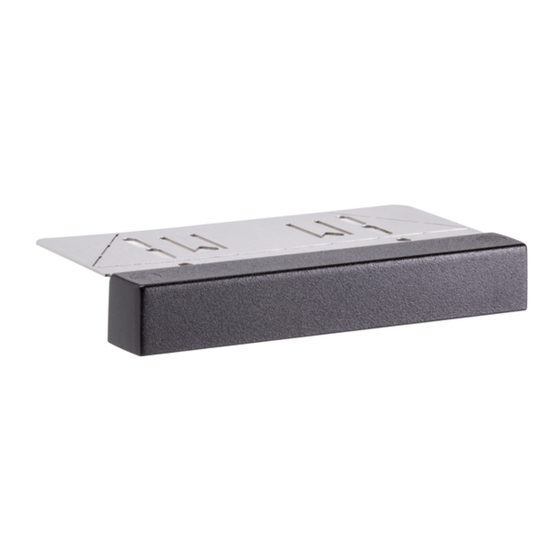

Landscape Series
Step & Brick Lights
(Fig. A)
