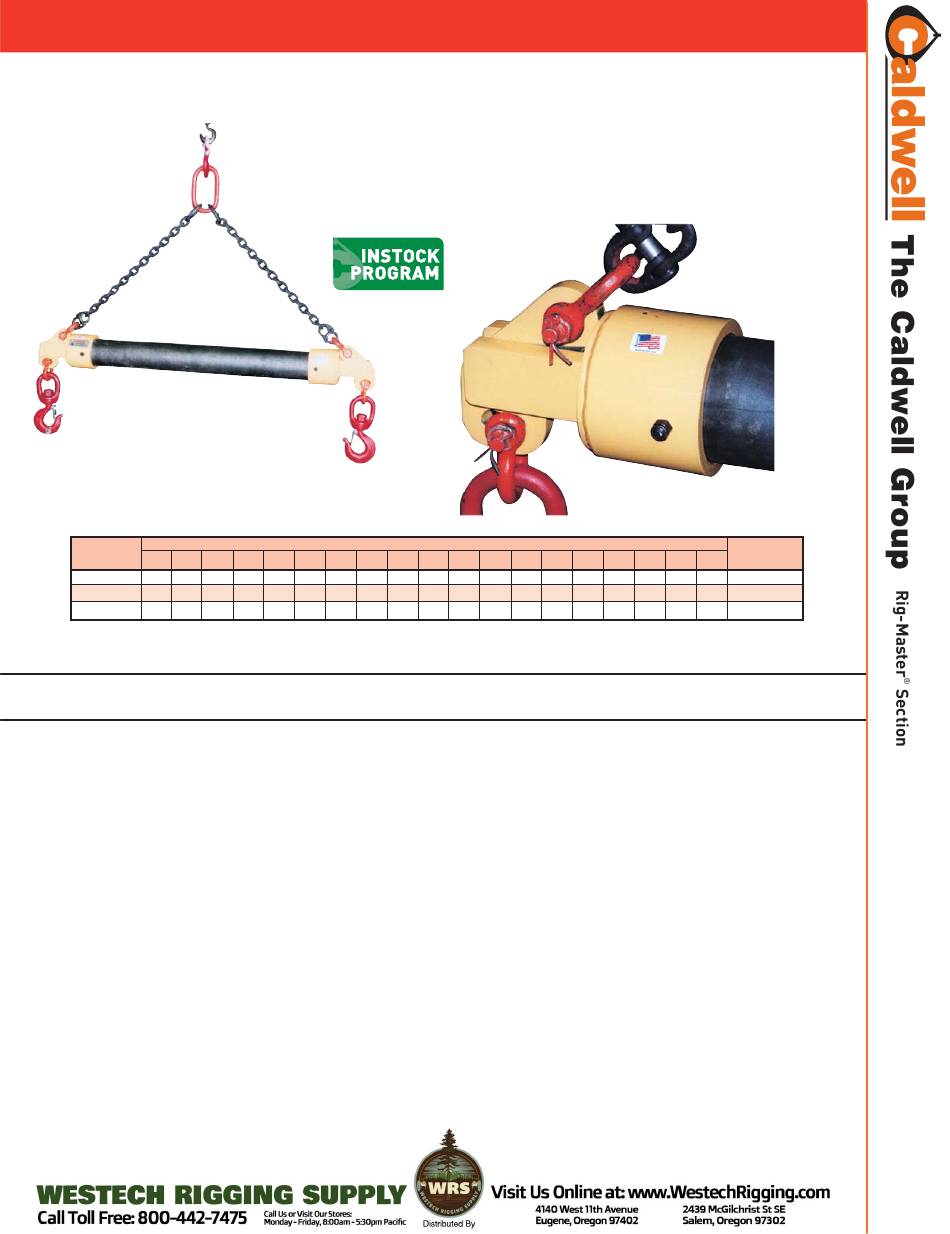

Model BEF - Spreader Beam End Fittings
Shown full assembled with
customer supplied rigging and bar.
SPECIFICATIONS
Model No.
Spread (ft.)
4
5
BEF-2-1/2
7.5
7
6.5
BEF-5
17
17
17
BEF-8
39
39
39
NOTE: Capacity based on minimum 45° top rigging angle.
Other sizes available, consult factory.
The Caldwell Model BEF is designed to use A53 Grade B, schedule 40 pipe as the central structural element
between the end fittings. This structural material is readily available at most steel service centers.
The Caldwell Model BEF-2 1/2 requires a 2-1/2" nominal size, the Model BEF-5 requires a 5" nominal size, and the
BEF-8 requires an 8" nominal size A53 Grade B, schedule 40 pipe.
Other requirements are:
• The length of pipe used for this central element must be straight within 1/4" end to end.
• The pipe should have the ends cleanly cut square with its centerline.
• The A53 Grade B, schedule 40 pipe should not have any weld joint irregularities.
• Each end of the A53 Grade B, schedule 40 pipe must have the correct diameter holes drilled
through both walls and both ends must be in line.
• The A53 Grade B, schedule 40 pipe used in this application does not need to pass any
pressure testing.
The retaining bolts used to secure the Caldwell Model BEF 2-1/2 and 5 to the A53 Grade B, schedule 40 pipe must
be a Grade 5 Hex Head Cap Screw 5/8-11 with minimum length of 4-1/2" and 8" respectively. The bolt for the BEF-8
is a Grade 5 Hex Head Cap Screw 1-8 with a minimum length of 11-1/2".
NOTE: Complete assembly instructions are provided with each set of end fittings.
6
8
10
12
14
15
5.5
4
2.9
2
1.8
17
17
16
15
14
39
39
38
36
36
Assembly Information
PRODUCT FEATURES:
• Build your own spreader beam.
• Designed to work with a range of shackle sizes, both top and bottom.
• Complies with ASME standards when assembled to specifications
using A53 Grade B, schedule 40 pipe.
Capacity (tons)
16
18
20
22
24
26
-
-
-
-
-
-
13
12
10
8
7
6
35
33
31
29
27
25
Weight (lbs.)
28
30
32
34
36
Per Pair
-
-
-
-
-
18
76
5
4.5
-
-
-
23
21
19
16
15
285
Advertisement
Related Manuals for Caldwell BEF
Summary of Contents for Caldwell BEF
- Page 1 The retaining bolts used to secure the Caldwell Model BEF 2-1/2 and 5 to the A53 Grade B, schedule 40 pipe must be a Grade 5 Hex Head Cap Screw 5/8-11 with minimum length of 4-1/2" and 8" respectively. The bolt for the BEF-8 is a Grade 5 Hex Head Cap Screw 1-8 with a minimum length of 11-1/2".
- Page 2 BEAMS meeting ASME B30.20 standards in a range of spread lengths and capacities. Each SPREADER BEAM built to the specifications listed in this technical document using the Caldwell Model BEF is classified as a "Structural Lifting Device" and ASME BTH-1 DESIGN CATEGORY B and SERVICE CLASS 0. It will support loads up to its rated capacity as described in the tables listed in this document when used correctly.
- Page 3 The Caldwell Model BEF-5 Beam End Fitting has a capacity range of 4.5 Ton (9,000 lbs) at a 30 ft spread up to 17 Ton (34,000 lbs) at a 10 ft spread.
- Page 4 3 TECHNICAL DATA SHEET FOR MODEL BEF- 5 BEAM END FITTINGS The top rigging capacity must be sized to account for the top rigging angle and must be capable of lifting the beam capacity plus the additional weight of the beam. The beam weight is equal to 90 pounds (The weight of two beam end fittings) plus 15 pounds per foot of pipe (The weight of 5"...
- Page 5 Hardware must be rated at least the minimum capacity defined in TABLE 3. for either the Top Rigging or Bottom Rigging based on the tabulated spreader beam capacity. Caldwell Model BEF- 5 Spreader System Rigging Hardware Selection Table Top Rigging Bottom Rigging Spreader Cap.
- Page 6 MODEL BEF- 5 BEAM END FITTINGS The Caldwell Model BEF-5 is designed to use Schedule 40 ERW pipe (A53, Grade B, Schedule 40 Pipe) as the central structural element between the end fittings. This structural material is readily available in most locations.
- Page 7 TABLE 4. defines the minimum sling length for each spread and the length of the Schedule 40 ERW pipe (A53, Grade B, Schedule 40 Pipe) used to create the spread. Caldwell Model BEF-5 Spreader System Top Rigging Sling Leg Length Schedule 40 ERW pipe...
- Page 8 7 TECHNICAL DATA SHEET FOR MODEL BEF- 5 BEAM END FITTINGS Precautions: Never attempt to lift loads beyond the specified maximum capacity. Verify the top rigging is at a minimum angle of 45 degrees. If this angle is lower than 45 degrees the spreader system is at risk of being overloaded.
