Caldwell 28 Instruction Manual

Your new Model 28 Chlorine Cylinder Lifting Beam will only support loads up to its rated capacity when loaded correctly. The Model
28 Chlorine Cylinder Lifting Beam is a load supporting lifter complying with ASME B30.20 BTH-1 Design Category B and Service
Class 2, which is for specific tasks withstanding forces based on the unit's rated capacity. Use the following guidelines for your
protection, and for optimal operation of your equipment. The safety precaution list below is not necessarily all-inclusive. The
owner/user is responsible for understanding and acting according to industry standards and any other local, city, state or federal
regulations. Refer to the Manufacturer's Instruction Manual for product and safety information on other attachments, components,
or both used with your lifting equipment.
1. DO NOT EXCEED RATED CAPACITY.
2. DO NOT lift or support people.
3. DO NOT lift over people.
4. DO NOT lift higher than necessary.
5. DO NOT leave suspended load unattended.
6. DO inspect the lifter for damage or excess wear before each use. Check for structural bending and cracks, excess
wear at load points and pins, cracked or broken welds, deformed hardware. If inspection reveals any defect(s),
remove the lifting device from service, and tag "Out of Service". Immediately notify your Safety administrator or
Supervisor to contact The Caldwell Group regarding any defect.
7. DO contact The Caldwell Group to replace worn or damaged tags and/or decals.
Loading Operation
1. See Tag & Decal Location page 3, Know the rated capacity of the beam and the beam weight (located on the
Caldwell Nameplate/ID tag).
2. Confirm that the pins are through both channels and secure in the hooks before lifting.
3. See Figure 2 (Enlarged Detail), Know that each Chlorine Cylinder flange is securely resting on the full length of the
hook arm (within the spread limits, 80-3/4" to 82-1/4").
4. See Figure 1, Prevent tilting of the Model 28 Chlorine Cylinder Lifting Beam and the load, by positioning the load's
center of gravity in-line with the center of the crane hook.
5. Perform a test lift of several inches to verify the load is properly balanced and the lifter is level/horizontal.
6. See Figure 1 & 2, the Lifting Beam is level/horizontal and both of the Chlorine Cylinder flanges are securely resting
on the full length of both hook arms, proper lifting.
7. See Figure 3, the Lifting Beam is not level/horizontal and the Chlorine Cylinder Flange is resting on the tip of ONLY
one hook arm, improper lifting.
PROPER LIFTING
PIN (2)
The Caldwell Group, Inc.
5055 26 Avenue
th
Rockford, IL 61109
www.caldwellinc.com
INSTRUCTION MANUAL FOR
Model 28 – Chlorine Cylinder Lifting Beam
CENTER OF THE
CRANE HOOK
BAIL
STANDARD SPREAD
80- 3 4 " TO 82- 1 4 "
(815) 229-5667
Toll Free (800) 628-4263
Fax (815)-229-5686
THE CYLINDER'S
CENTER OF GRAVITY
SEE ENLARGED DETAIL,
(FIG 2)

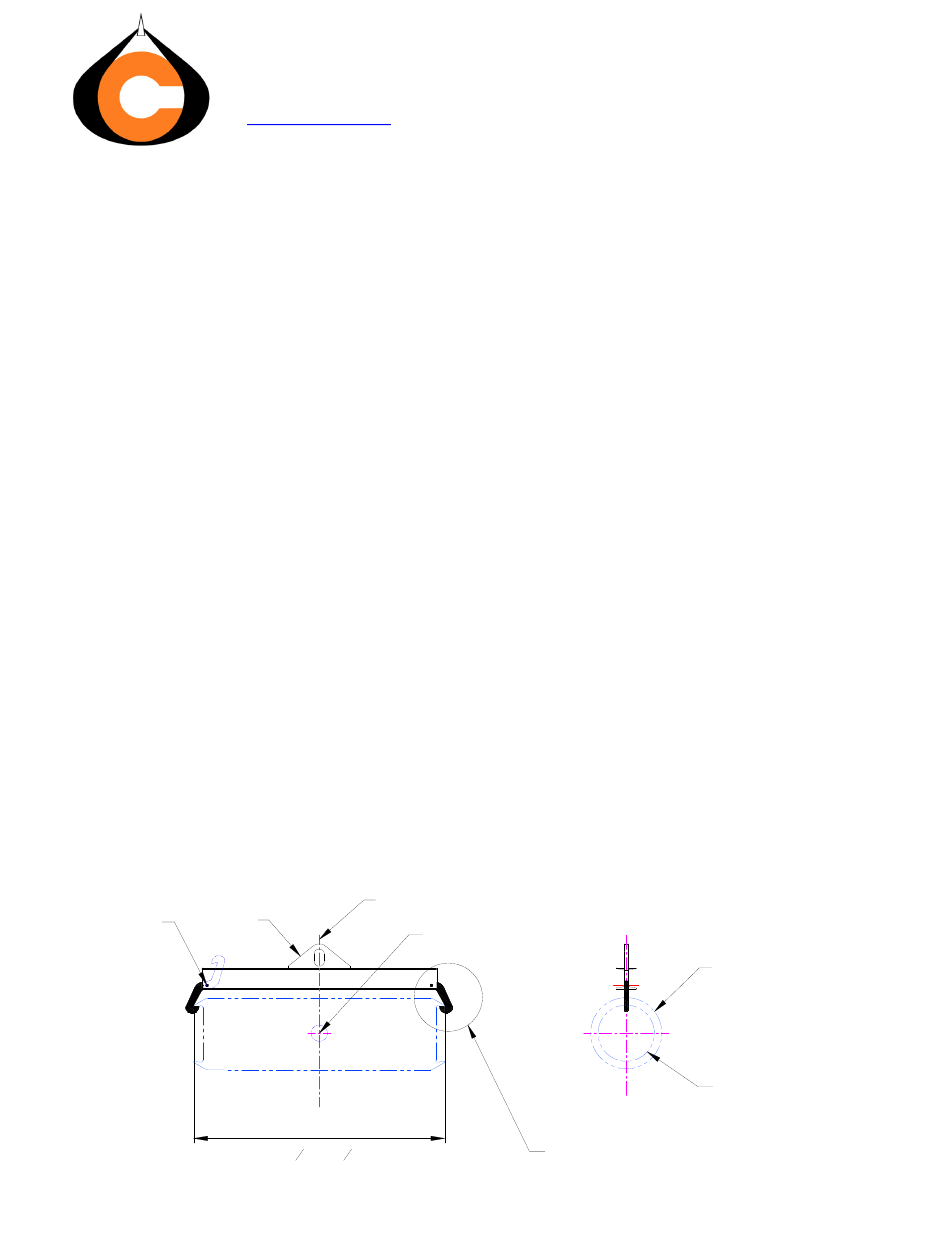

Figure 1
1 of 3
CHLORINE CYLINDER
CHLORINE CYLINDER
FLANGE
(2)
28-CLB (REV_01)
