Caldwell 27 Instruction Manual

Multi-point lifting beam
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

27_Multi_REV2
Your new Model 27, multi-point lifting beam, only supports loads up to its rated capacity and load size limits. The Model 27 is a load supporting lifter complying
with ASME B30.20 BTH-1 Design Category B and Service Class 2, which is for specific tasks, withstanding forces based on the unit's rated capacity. Use the
following guidelines for your protection and for optimal operation of your equipment. The safety precaution list below is not all-inclusive. The owner/user is respon-
sible for understanding and acting according to industry standards, and any local, state, or federal regulations. Refer to the Manufacturer's Instruction Manual for
product and safety information on other attachments, components, or both used with your lifting equipment.
1.
DO NOT EXCEED RATED CAPACITY.
2.
DO NOT lift or support people.
3.
DO NOT lift over people.
4.
DO NOT lift higher than necessary.
5.
DO NOT leave suspended load unattended
6.
DO ensure the load can withstand the forces applied by the lifter.
7.
DO inspect the lifter for damage or excess wear before each use. Check for structural bending, excess wear at load points and pins,
cracked or broken welds, deformed hooks. If inspection reveals any defect, remove the lifting device from service and tag
"Out of Service". Immediately notify your Safety Administrator or Supervisor to contact The Caldwell Group, regarding any defect.
8.
DO contact The Caldwell Group to replace worn , damaged, or missing identification tags or product safety labels.

Loading Operation

1.
Know the rated capacity and weight of your Model 27 multi-point lifting beam.
(See The Caldwell Group identification tag on your lifting unit).
2.
Determine the weight of the load and the load's center of gravity.
3.
Confirm the load's weight is less than or equal to the Model 27 rated capacity.
4.
Confirm the combined weight of the load and lifter is less than or equal to the hoist's rated capacity.
5.
Confirm all load attachment components have the correct rated capacity for the load and lifter.
6.
For models with adjustable spreads or bails, make the adjustments before loading, ensuring all adjustments are securely fastened.
7.
Securely attach the load to the lifter, using ONLY symmetrical loading.
8.
Prevent tilting of the lifter and load, by positioning the hoist's and lifter's center in-line with the load's center of gravity.
9.
Use ONLY a vertical lift.
10. Perform a test lift of several inches, verifying: the load is symmetrically attached, the hoist, bail, and load centers are in-line at 90
degrees to horizontal, and the load and lifter are balanced.
11. When the load is level/horizontal, the lifter is in the proper lifting position.

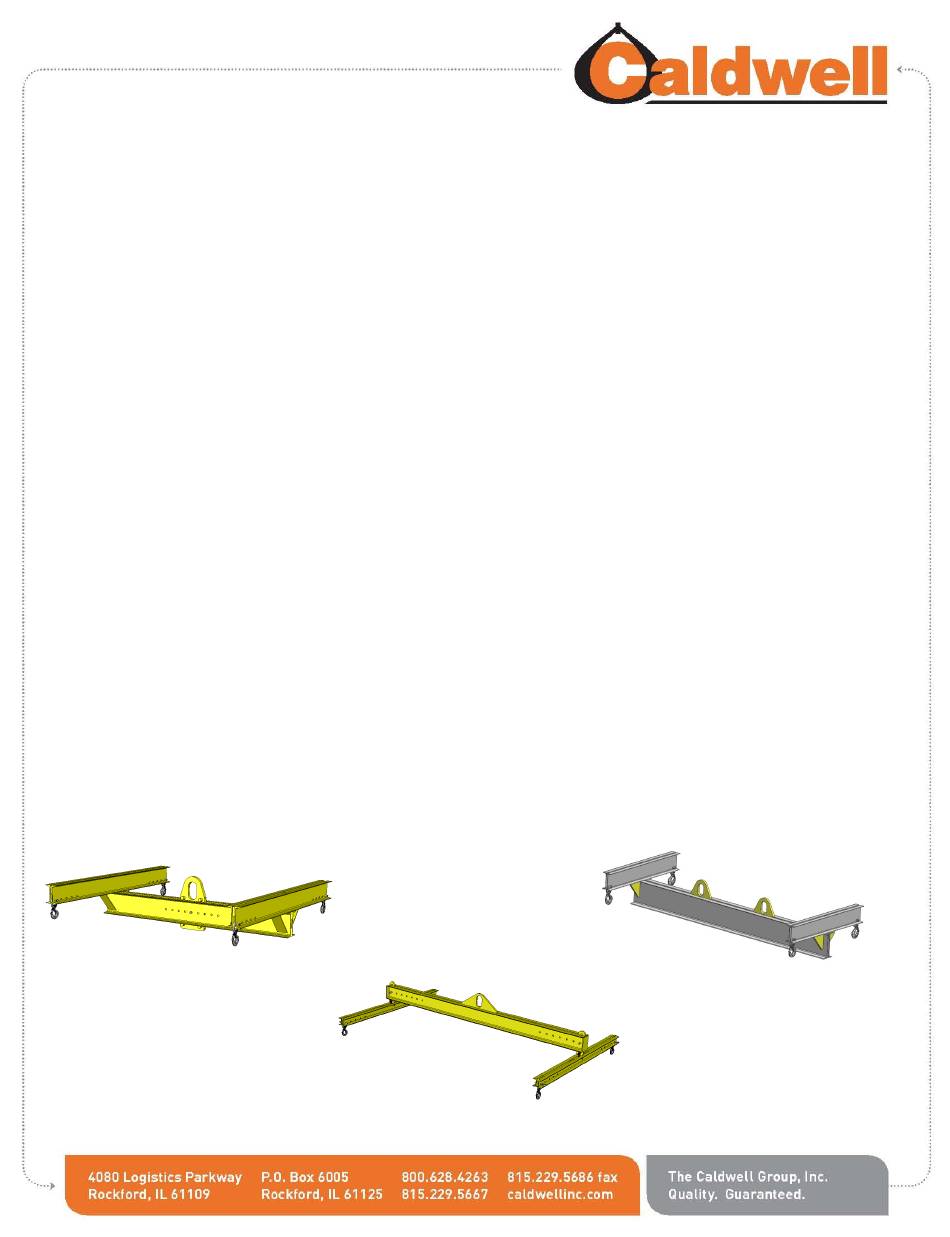

Options (Your unit may differ from the pictorial view):
Adjustable Bail
INSTRUCTION MANUAL
Model 27, Multi-Point Lifting Beam
Adjustable Spread
Multiple Bails

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27 and is the answer not in the manual?

Questions and answers

Related Manuals for Caldwell 27

Summary of Contents for Caldwell 27

  • Page 1 Model 27, Multi-Point Lifting Beam Your new Model 27, multi-point lifting beam, only supports loads up to its rated capacity and load size limits. The Model 27 is a load supporting lifter complying with ASME B30.20 BTH-1 Design Category B and Service Class 2, which is for specific tasks, withstanding forces based on the unit’s rated capacity. Use the following guidelines for your protection and for optimal operation of your equipment.
  • Page 2 SEE UNIT ID TAG Record your lifter’s Rated capacity____________________________ Model Number____________________________ Serial Number____________________________ Model Number description: XXX - Cross Beam Maximum Hook Spread (inches or feet, depending on model size) Main Beam Maximum Hook Spread Rated Capacity Classification Proper Loading and Lifting (Your unit may differ from the pictorial view)
  • Page 3 Position load symmetrically. Align hoist and bail center with the load’s center of gravity. Improper Loading Load's Center of Gravity Hoist and Beam Center Misaligned Unequal Unequal Improper Lifting...
  • Page 4 The exact location of product labels may differ on your unit, depending on Model type and size. When product labels are missing or damaged, contact The Caldwell Group for complimentary replacements. Modifications to your lifting equipment without prior written approval from...
