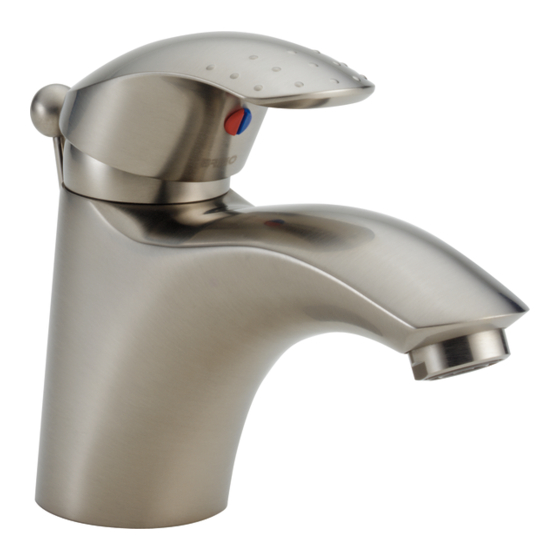

Brizo Riviera 6515521 Manual

Single handle lavatory and bidet faucets
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
CSA B125
ASME A112.18.1
ICC/ANSI A117.1
Models/Modelos/Modèles
6515521, 6315531
Series/Series/Seria
Rivierar
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
BRIZOt faucet you will need:
* To READ ALL the instructions completely before
beginning.
* To READ ALL warnings, care, and maintenance
information.
* To purchase the correct water supply hook--up.
Para instalación fácil de su llave
BRIZOt usted necesitará:
* LEER TODAS las instrucciones completamente
antes de empezar.
* LEER TODOS los avisos, cuidados, e información
de mantemiento.
* Comprar las conexiones correctas para el suministro
de agua.
Pour installer votre robinet BRIZOt
facilement, vous devez :
* LIRE TOUTES les instructions avant de débuter.
* LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
* Acheter le bon raccordement nécessaire pour
l'alimentation en eau.
12821.00

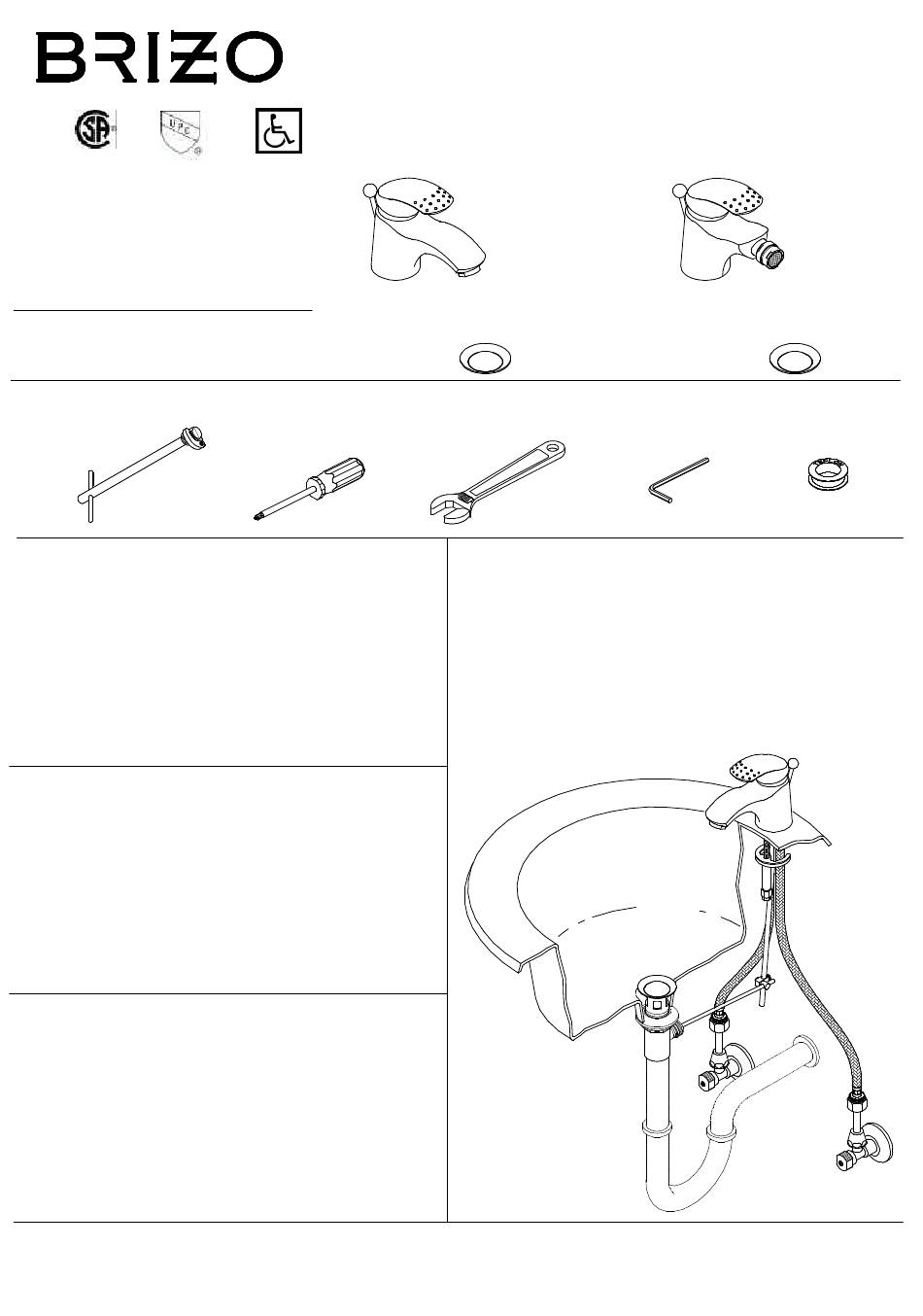

SINGLE HANDLE LAVATORY AND BIDET FAUCETS
t
GRIFERÍAS MONOCONTROL PARA LAVABO Y BIDET
MITIGEUR MONOCOMMANDE POUR LAVABO ET BIDET
6515521
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
Note: This faucet fits 1 1/4" min.
mounting hole size. When drilling a
new hole, 1 1/2" is recommended.
Note: Ce robinet va dans un trou
d'installation de 1 1/4" au minimum.
Si vous percez un trou nouveau, nous
recommandons un diamètre de 1 1/2".
Nota: Es possible montar la unidad en
un orificio de 1 1/4". Pero en el caso de
taladrar un orificio nuevo, se recomien-
da hacerlo de 1 1/2".
1
6315531
3 mm
Note: The back edge of the faucet body
must be at least 1 1/2 inches from the
backsplash on wall in order to allow the
lift rod to function properly.
Nota: La orilla posterior del cuerpo de la
llave de agua debe estar a por lo menos
1 1/2 pulgadas del protector de pared
en la pared para permitir que la barra de
levante funcione apropiadamente.
Note: Le rebord arrière du corps du ro-
binet doit se trouver à au moins 1 1/2 po
du dosseret sur le mur pour que la tirette
puisse fonctionner correctement.
11.04
