ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Models/Modelos/Modèles
65005LF & 65105LF
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.

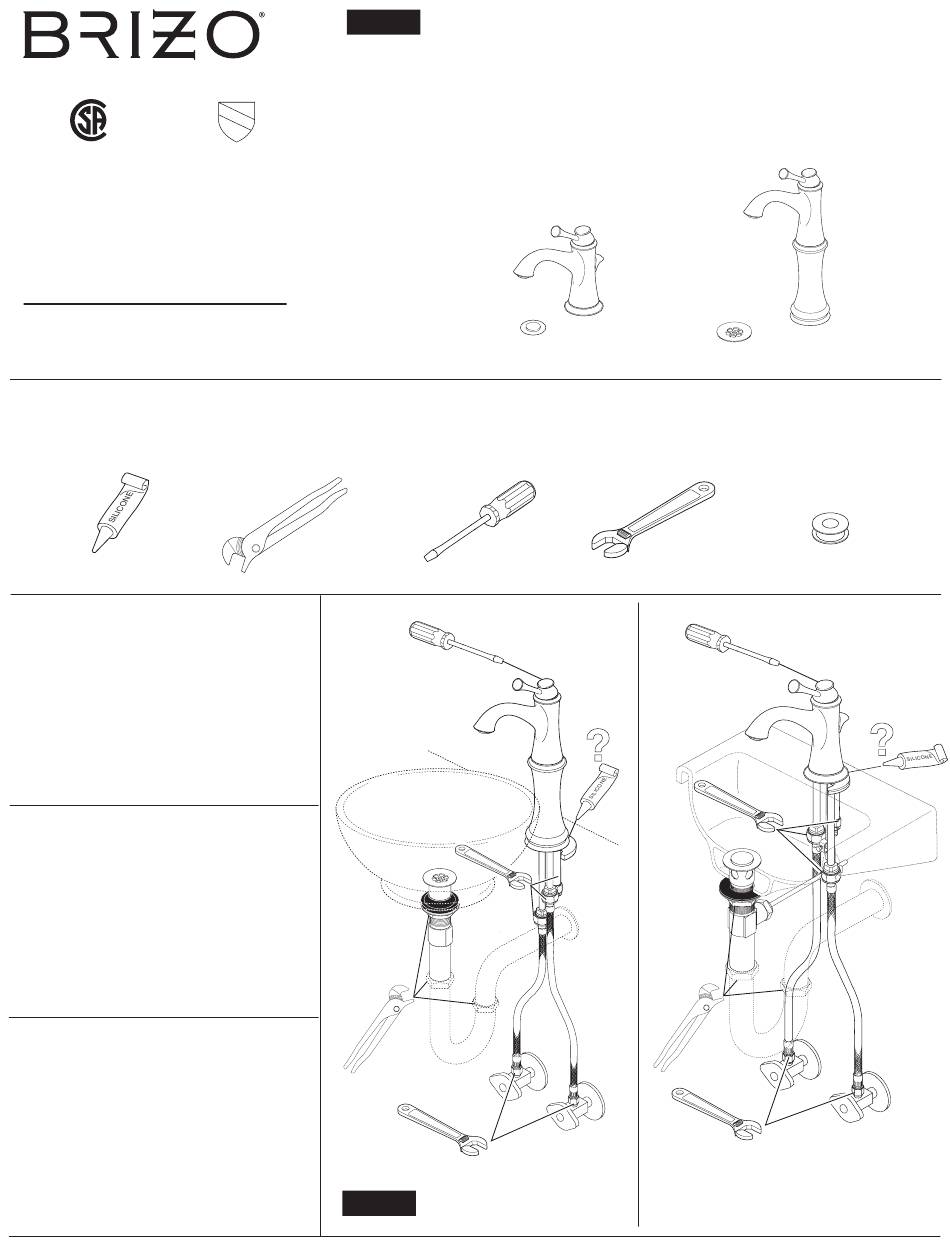

For easy installation of your
Brizo
faucet you will need:
®
• To READ ALL the instructions
completely before beginning.
• To READ ALL warnings, care, and
maintenance information.
• To purchase the correct water supply
hook-up.
Para instalación fácil de su
llave Brizo
®
usted necesitará:
• LEER TODAS las instrucciones
completamente antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para
el suministro de agua.
Pour installer votre robinet
Brizo
®
facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi
que toutes les instructions de
nettoyage et d'entretien;
• Acheter le bon nécessaire
de raccordement.
62327
U P
C
®
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
62327
SINGLE HANDLE LAVATORY AND
VESSEL FAUCETS
LLAVES DE AGUA DE UNA MANIJA
PARA LAVAMANOS Y ARTESAS
ROBINETS À UNE MANETTE POUR
LAVABO ET CUVETTE
65005LF
T E FLO N
1

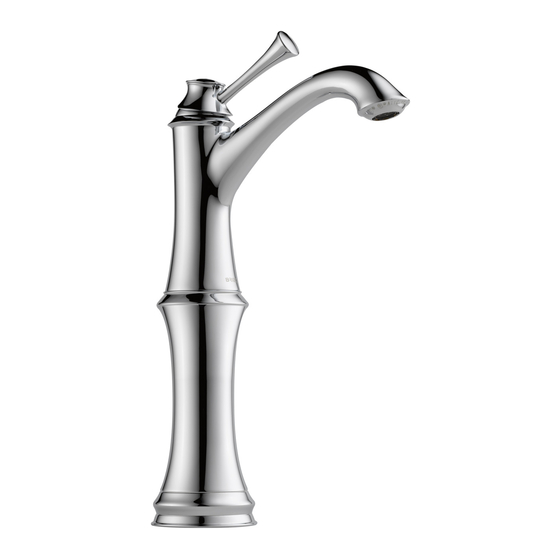

65105LF
09/22/11 Rev. D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Brizo 65105LF
Summary of Contents for Brizo 65105LF
- Page 1 ® LAVABO ET CUVETTE ASME A112.18.1 / CSA B125.1 ASME A112.18.2 / CSA B125.2 ICC/ANSI A117.1 Models/Modelos/Modèles 65005LF & 65105LF Series/Series/Seria Write purchased model number here. Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. 65005LF...
- Page 2 This warranty excludes all industrial, commercial & business usage, whose purchasers are parts may be obtained by calling 1-877-345-BRIZO (2749) (in the U.S. and Canada) or by hereby extended a five year limited warranty from the date of purchase, with all other terms of writing to: this warranty applying except the duration of the warranty.
- Page 3 65005LF RP62790 Handle w/Screw & Button Manija con Tornillo y botón Poignée avec vis et bouton RP52665 Cap & Bonnet Nut Casquillo y Bonete Tapón Embase et Chapeau Specify Finish Especifíque el Acabado Précisez le Fini RP50265 Valve Cartridge Válvula de Cartucho Cartouche RP48428 Aerator &...
- Page 4 65105LF RP62790 Handle w/Screw & Button Manija con Tornillo y botón Poignée avec vis et bouton RP52665 Cap & Bonnet Nut Casquillo y Bonete Tapón Embase et Chapeau Specify Finish Especifíque el Acabado Précisez le Fini RP50265 Valve Cartridge Válvula de Cartucho...
- Page 5 1" (25.4 mm) 1 po Diameter Hole 1 1/2" (38 mm) 1 1/2 po 1" (25.4 mm) - 1 1/2" (38 mm) 1 po - 1 1/2 po Diameter Hole Lavatory Faucet Installation Vessel Faucet Installation Note: This faucet fits 1" min. mounting hole size. When drilling a new hole, Note: Drill hole in finished deck per diagram.
- Page 6 Pull grid strainer straight down into drain hole and secure gasket, washer and nut (1). DO NOT TURN GRID STRAINER WHILE TIGHTENING NUT OR SEALANT MAY NOT SEAL DRAIN .. REMOVE EXCESS SEALANT. Connect assembly to drain. Instalación de la Rejilla Coladora (Modelo 65105LF) Water Hook-up 3750016 Quite el reborde de la rejilla (1).
- Page 7 Step 3b Step 3 Pop-Up Installation (Model 65005LF) Step 3c Apply silicone to underside of flange (1). Insert Remove stopper (1) and flange (2). Remove pivot nut (1). Install horizontal rod body (2) into sink. Screw flange (1) into body (2). (2) and stopper (3) as removable (4) or Screw nut (1) all the way down.
- Page 8 Maintenance If faucet leaks from under handle: Remove handle and ensure bonnet nut (1) is tight. If leak persists–SHUT OFF WATER SUPPLIES. Replace valve cartridge (2). If faucet leaks from spout outlet: SHUT OFF WATER SUPPLIES. Replace valve cartridge (2). If faucet exhibits very low flow: Remove aerator (3) with wrench (4) and clean.
