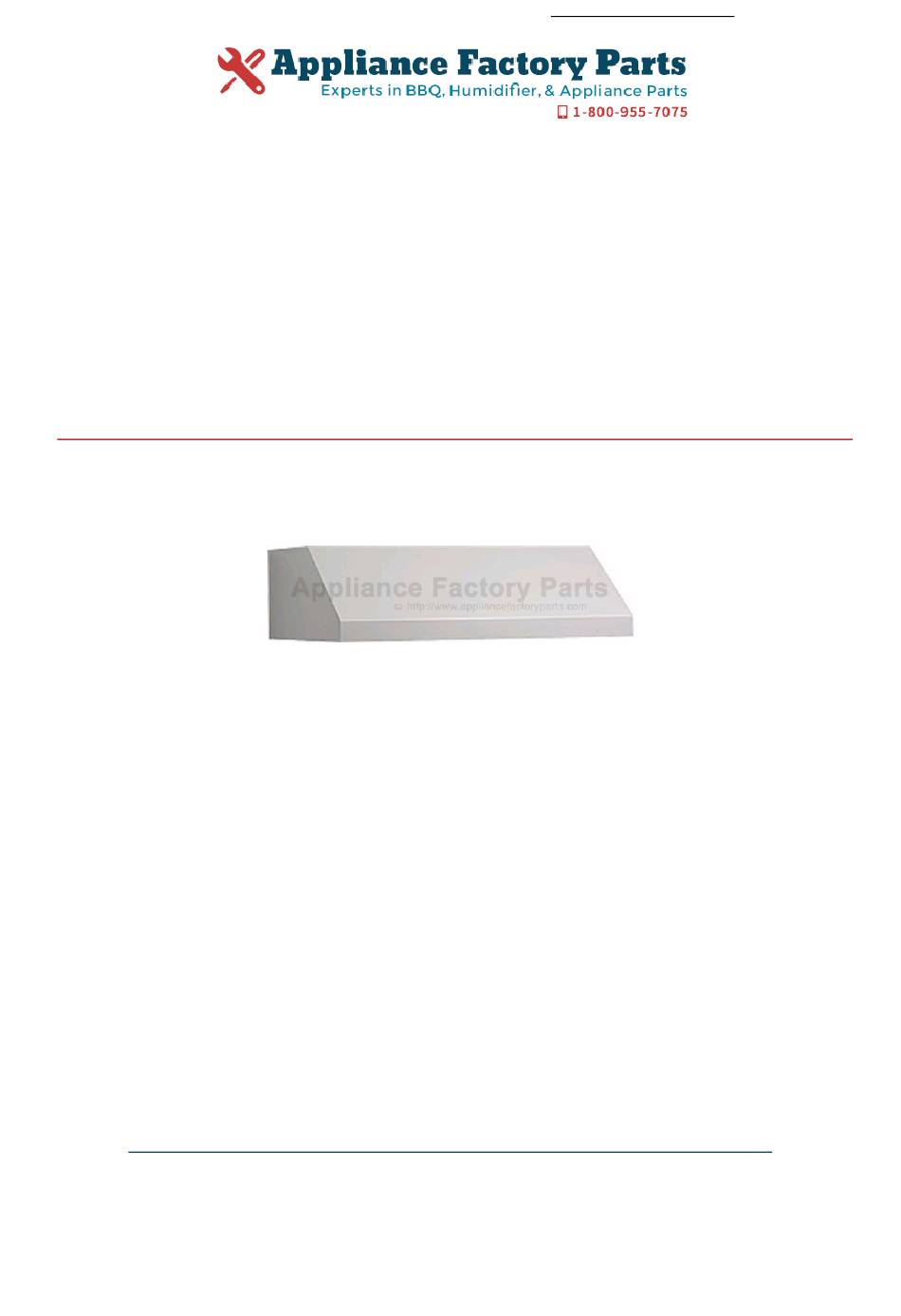

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. BROAN RP130WW Owner's Manual Shop genuine replacement parts for BROAN RP130WW Find Your BROAN HVAC Parts - Select From 1309 Models -------- Manual continues below --------...
- Page 2 & Rp SeRieS Page pRoFeSSionaL StYLe to register this Range HooD product visit: www.broan.com ReaD anD SaVe tHeSe inStRuctionS FoR DomeStic cooKing onLY waRning waRning to ReDuce tHe RiSK oF FiRe, eLectRic SHocK, oR in- to ReDuce tHe RiSK oF inJuRY to peRSonS in tHe...
-
Page 3: Cleaning And Maintenance
ap1 & Rp SeRieS Page cLeaning & maintenance ap SeRieS HooD Operate the hood as follows: For performance, appearance, and health reasons, clean filter, fan and grease-laden surfaces. Use only a clean cloth and mild detergent solution on stainless and painted surfaces. Clean all- metal filters in the dishwasher. The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. -
Page 4: Prepare The Hood
ap1 & Rp SeRieS Page pRepaRe tHe HooD Use the proper diagram below, for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole. 3¼” X 10” VeRticaL Ducting HOOD MOUNTING SCREWS (4) BOTTOM COVER 12¼" 12¼" (30" hood) (30" hood) 15¼" 15¼" (36" hood) (36" hood) CABINET FRONT " CABINET BOTTOM "... -
Page 5: Connect The Wiring
ap1 & Rp SeRieS Page connect tHe wiRing DAMPER / DUCT CONNECTOR VERTICAL DUCT KNOCKOUT GREEN GROUND SCREW HOUSE POWER CABLE HE0059 Connect House power cable to range hood wiring - BLACK to BLACK, WHITE to WHITE, and GREEN or HORIzONTAL DUCT BARE WIRE to gReen ground Screw. -
Page 6: Service Parts
97016970 Switch - Black The duration of an implied warranty is limited to the one-year period as specified for 97016971 Switch - White the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. 99260485 Nut Sheet Metal U-Type BROAN’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN’S OPTION, 99400052 Bushing Strain Relief (Not Shown) SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS 99770113 Wire Harness - NSP, RP WARRANTY. BROAN SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUEN- 99770115 Wire Harness - AP TIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion...
