Instruction Sheet
JMB-UMB Universal Mobile Base
WARNING
All mobile base castors should be locked unless the machine is being moved. Do not move the
mobile base while the machine has power, or is plugged in. All four mobile base castors should
always be locked while the machine is being used.

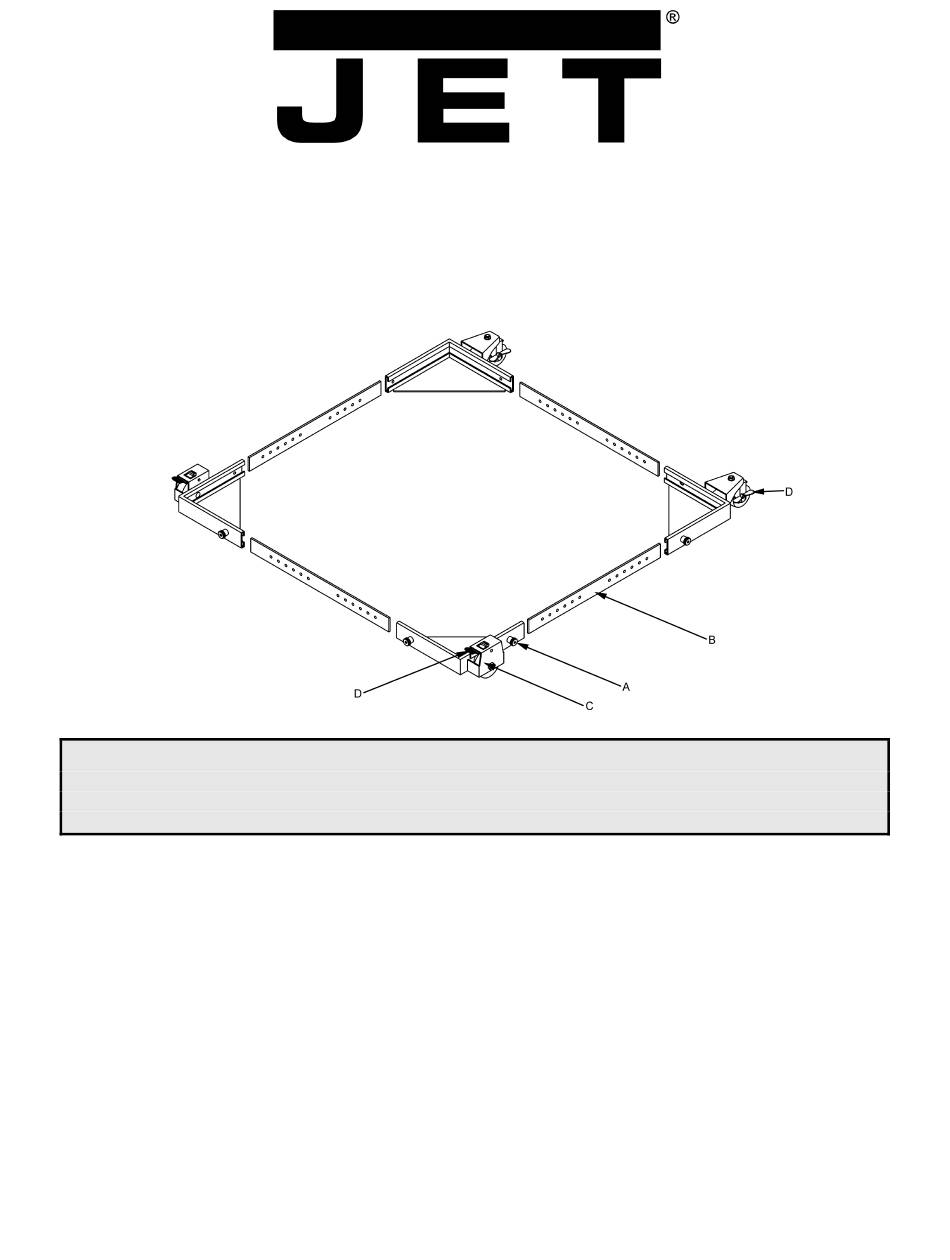

1. Pull out the spring-loaded knob (A) and slide the side adjusting plate (B) into the castor bracket
assembly (C).
2. Locate spring-loaded pin into one of the indexing holes found in the side adjusting plate.
3. Position the machine so that it rests evenly on the corner brackets.
4. Lock four castors by stepping on the brake pedals (D). Unlock by flipping the pedal up with your foot.
WMH TOOL GROUP
Consumer/Light Industrial Products Division
P.O. BOX 1349
Auburn, WA 98071-1349
Ph: 1-800-274-6848 Fax: 1-800-274-6840
E-mail: jet@wmhtoolgroup.com
www.wmhtoolgroup.com
M-708118 10/02
Copyright © WMH Tool Group
